Schneider Electric

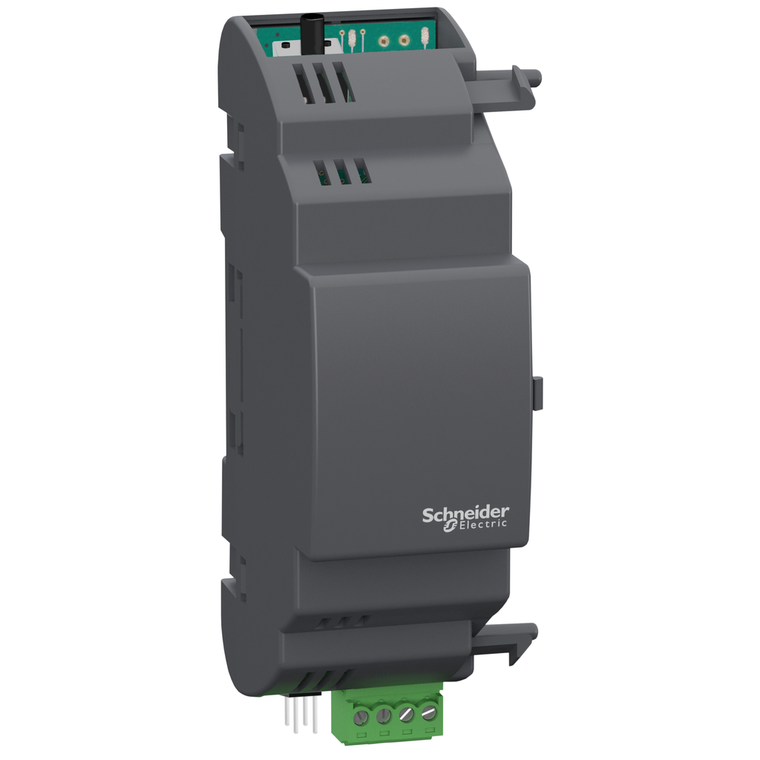

Schneider Electric TM171ALON M171 Perf. Plug-In Lonworks

SKU:

TM171ALON

UPC:

3.60648E+12

MPN:

Condition:

New

Ambient Air Temperature For Operation:

-10-55 °C

Communication Port Protocol:

LonWorks

Product Compatibility:

logic controller M171 performance || logic controller M172 performance

Ip Degree Of Protection:

IP20

Marking:

CE

Ambient Air Temperature For Storage:

-20-85 °C

Integrated Connection Type:

LON wire crimp - twisted pair

Product Certifications:

EAC || CSA || CE || cURus

Local Signalling:

for service 1 LED (red) || for status 1 LED (green)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Or Component Type:

communication module

Physical Interface:

90° insertion - 2.5-2.5 mm² cable

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

China Rohs Regulation:

X

Adjustment:

pitch 3.81 mm

Relative Humidity:

10-90 % without condensation

Upgradeability:

Upgradeable through digital modules and upgraded components

Rohs Exemption Information:

Yes

Net Weight:

0.077 kg

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range Of Product:

Modicon M171/M172

Transmission Rate:

78 kbits/s

Mercury Free:

Yes

Supply:

via base board M171P/M172P

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Electrical Connection:

removable screw terminal block
