Schneider Electric TM171ARS485 M171 Perf. Plug-In Bacnet Mstp Or Modbus
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

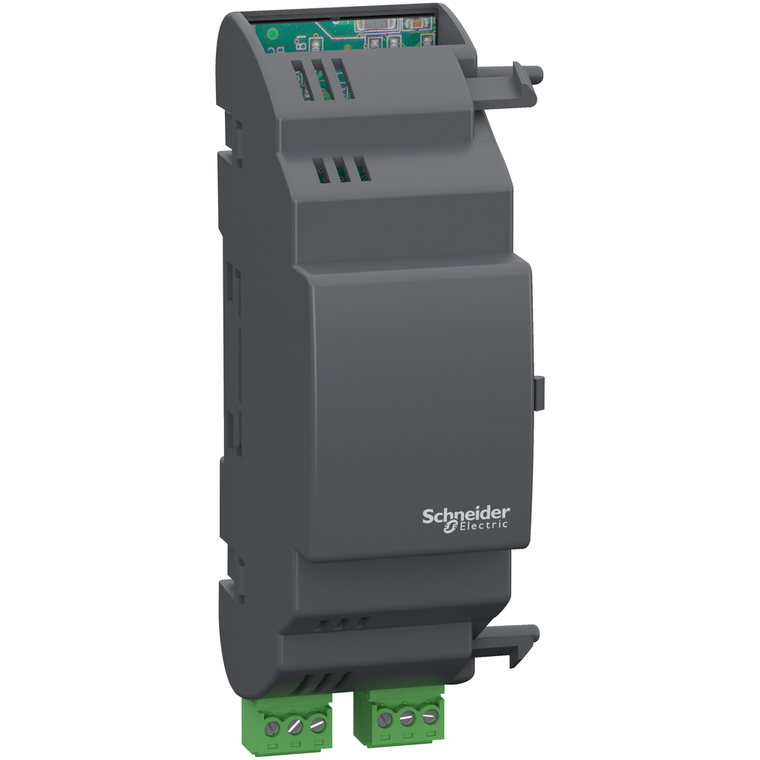

Modicon M171 Performance Plug-in BACnet MSTP or Modbus
- Physical Interface:
- 90° insertion - 2.5-2.5 mm² cable
- Integrated Connection Type:
- RS485 wire crimp - twisted pair
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ambient Air Temperature For Storage:
- -20-85 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.077 kg
- Electrical Connection:
- removable screw terminal block
- Communication Port Protocol:
- RS485 || BACnet MS/TP || Modbus RTU
- Ambient Air Temperature For Operation:
- -10-55 °C
- Mercury Free:
- Yes
- Product Or Component Type:
- communication module
- Adjustment:
- pitch 3.81 mm
- Product Compatibility:
- logic controller M172 performance || logic controller M171 performance
- Range Of Product:
- Modicon M171
- Product Certifications:
- cURus || CSA || EAC || CE
- Relative Humidity:
- 10-90 % without condensation
- China Rohs Regulation:
- X
- Upgradeability:
- Upgradeable through digital modules and upgraded components
- Marking:
- CE
- Ip Degree Of Protection:
- IP20
- Supply:
- via base board EVD/EVC
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
