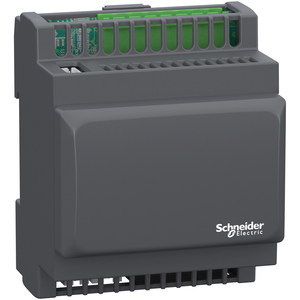

Schneider Electric TM171EO14R M171 Opt. Expansion 14 Ios, 100-240Vac

(No reviews yet) Write a Review

Write a Review

Schneider Electric TM171EO14R M171 Opt. Expansion 14 Ios, 100-240Vac

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM171EO14R

UPC:

3.60648E+12

MPN:

Condition:

New

Ambient Air Temperature For Storage:

-20-85 °C

Discrete Output Current:

2 A relay

Sensor Power Supply:

12-12 V DC 85 mA

Realtime Clock:

built-in -10-55 °C

Directives:

86/188/EEC - physical agents (noise) directive || 2006/95/EC - low voltage directive

Ip Degree Of Protection:

IP20

Product Or Component Type:

additional I/O module

Discrete Input Logic:

sink or source (positive/negative)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Relative Humidity:

10-90 % non-condensing

Circularity Profile:

ENVEOLI1710004EN

China Rohs Regulation:

X

Mercury Free:

Yes

Contacts Usage:

volt-free contacts

Upgradeability:

Upgradeable through digital modules and upgraded components

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Input/Output Number:

5 analog output || 4 digital output || 5 analog input

Power Consumption In W:

7 W

Mounting Support:

DIN rail

Height:

87 mm

Width:

70.2 mm

Ambient Air Temperature For Operation:

-10-55 °C UL 60730-1

Product Specific Application:

HVAC and pumping solution

Depth:

61.6 mm

Display Type:

Without Display

Discrete Input Number:

2

Environmental Disclosure:

ENVPEP1710004EN

Discrete Output Number:

1 relay outputs SPDT with independent common || 3 relay outputs SPST with same common

[Us] Rated Supply Voltage:

100...240 V +/- 10 % AC/DC

Analogue Input Type:

voltage 0...5 V ratiometric) || voltage 0...10 V || NTC temperature probe - 50...100 °C 0.1 °C || Pt 1000 temperature probe - 50...400 °C 0.1 °C || current 0...20 mA/4...20 mA || voltage 0...1 V

Sustainable Offer Status:

Green Premium product

Number Of Inputs/Outputs:

14

Number Of Port:

1 LAN expansion bus

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs Exemption Information:

Yes

Range Of Product:

Modicon M171/M172

Net Weight:

0.385 kg

Overvoltage Category:

II

Analogue Input Number:

3 analog input NTC/Pt 1000 || 2 configurable

Local Signalling:

for programmable 1 LED (red) || for programmable 1 LED (yellow) || for programmable 1 LED (green)

Standards:

EN/IEC 60730

Product Certifications:

EAC || cURus || CSA || CE

Pollution Degree:

2

Analogue Output Number:

2 voltage 0...10 V || 2 PWM/PPM 20 kHz, 12 V, 35 mA || 1 current 0...20 mA/4...20 mA
