Schneider Electric

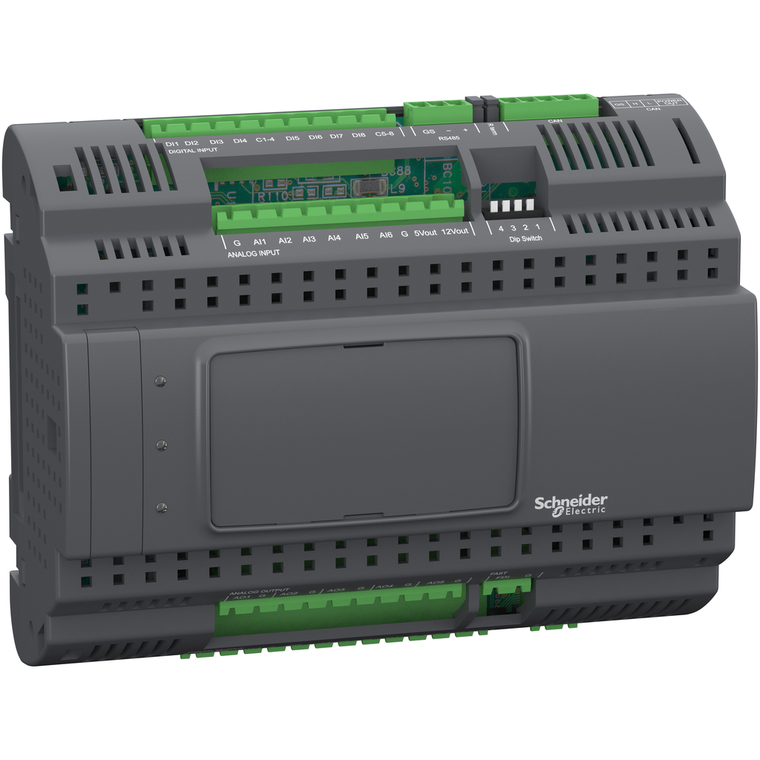

Schneider Electric TM171EP27R M171 Perf. Expansion 27 Ios

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric TM171EP27R M171 Perf. Expansion 27 Ios

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM171EP27R

UPC:

3606480752711

MPN:

Condition:

New

Product Certifications:

CE || cURus || EAC || CSA

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Directives:

86/188/EEC - physical agents (noise) directive || 2006/95/EC - low voltage directive

Circularity Profile:

ENVEOLI1710005EN

Display Type:

Without Display

Analogue Input Type:

voltage 0...5 V ratiometric) || current 4...20 mA || impedance 0...1500 hOhm || impedance 0...300 daOhm || direct input || NTC temperature probe - 50...110 °C 0.1 °C extended) || voltage 0...10 V || Pt 1000 temperature probe - 200...800 °C 0.1 °C

Sustainable Offer Status:

Green Premium product

Discrete Input Number:

8

Depth:

61.6 mm

Discrete Input Voltage:

24 V AC/DC || 48 V DC

Net Weight:

0.19 kg

Number Of Port:

1 CAN port - screw terminal block

Overvoltage Category:

II

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Product Specific Application:

HVAC and pumping solution

Range Of Product:

Modicon M171/M172

Mounting Support:

DIN rail

Discrete Input Logic:

sink or source (positive/negative)

Width:

140 mm

Upgradeability:

Upgradeable through digital modules and upgraded components

Ambient Air Temperature For Operation:

-20-55 °C UL 60730-1

Realtime Clock:

without -20-55 °C

[Us] Rated Supply Voltage:

24 V AC || 48 V

Height:

110 mm

Analogue Input Number:

2 analog input NTC || 4 configurable

Rohs Exemption Information:

Yes

Discrete Input Current:

2.5 mA

Standards:

EN/IEC 60730

Pollution Degree:

2

Input Impedance:

20 kOhm

Ambient Air Temperature For Storage:

-40-85 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ip Degree Of Protection:

IP20

Discrete Output Current:

8 A relay SPDT || 5 A relay SPST

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Input/Output Number:

6 analog input || 5 analog output || 8 digital input || 7 digital output || 1 high-speed counter

Environmental Disclosure:

ENVPEP1710005EN

Relative Humidity:

10-90 % non-condensing

Number Of Inputs/Outputs:

27

Product Or Component Type:

additional I/O module

Analogue Output Number:

3 voltage/current 0…10 V or 4…20 mA || 2 open collector/current 1 kHz, 12 V, 35 mA or 4…20 mA

China Rohs Regulation:

X

Sensor Power Supply:

5-5 V DC 50 mA || 12-12 V DC 150 mA

Discrete Output Number:

3 relay outputs SPST with same common || 2 relay outputs SPST with same common || 2 relay outputs SPDT with independent common
