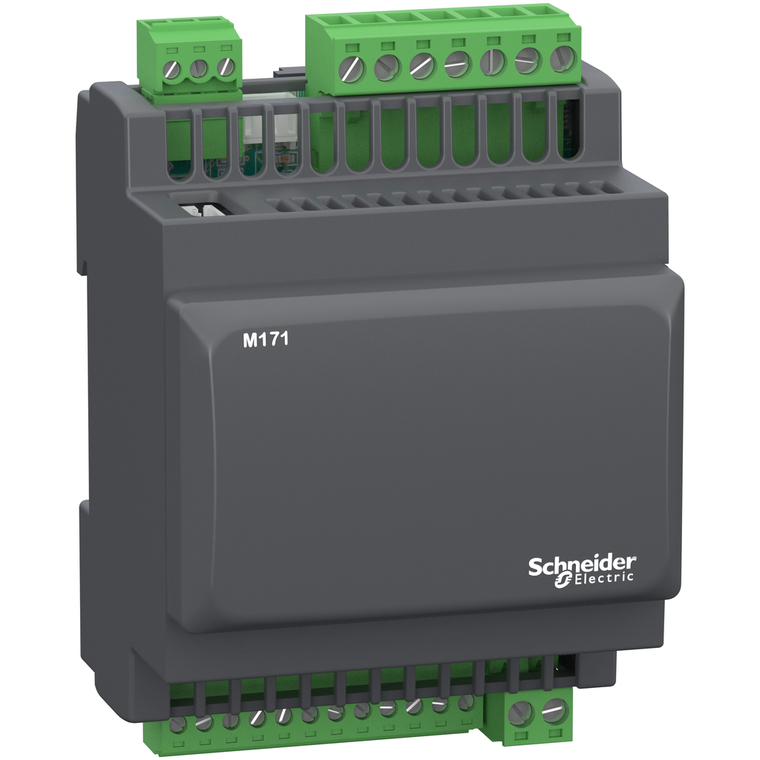

Schneider Electric TM171OBM14R M171 Opt. Blind 14 Ios Modbus 100-240V~
SKU:
TM171OBM14R
UPC:
3606480752735
MPN:
Condition:
New
Rohs Exemption Information:
Yes
Net Weight:
0.19 kg
Product Or Component Type:
controller
Analogue Input Type:
NTC temperature probe - 50...100 °C 0.1 °C || Pt 1000 temperature probe - 50...400 °C 0.1 °C || current 0...20 mA/4...20 mA || voltage 0...1 V || voltage 0...10 V ratiometric) || voltage 0...5 V
Circularity Profile:
ENVEOLI1710004EN
Range Of Product:
Modicon M171/M172
Upgradeability:
Upgradeable through digital modules and upgraded components
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Sensor Power Supply:
12-12 V DC 85 mA
Contacts Usage:
volt-free contacts
Analogue Output Number:
2 voltage 0...10 V || 2 PWM/PPM 20 kHz, 12 V, 35 mA || 1 current 0...20 mA/4...20 mA
Number Of Port:
1 LAN expansion bus || 1 RS485 - screw terminal block Modbus serial link)
Discrete Output Current:
2 A relay
Discrete Output Number:
1 relay outputs SPDT with independent common || 3 relay outputs SPST with same common
Analogue Input Number:
2 configurable || 3 analog input NTC
Product Specific Application:
HVAC and pumping solution
[Us] Rated Supply Voltage:
100...240 V
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Discrete Input Logic:
sink or source (positive/negative)
Width:
70.2 mm
Discrete Input Number:
2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Variant:
programmable
Height:
87 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Input/Output Number:
5 analog output || 4 digital output || 5 analog input
This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 6 discrete inputs with sink or source (positive/negative) discrete input logic...
This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 2 discrete inputs with sink or source (positive/negative) discrete input logic...
This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 2 discrete inputs with sink or source (positive/negative) discrete input logic...
This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 2 discrete inputs with sink or source (positive/negative) discrete input logic...
