Schneider Electric

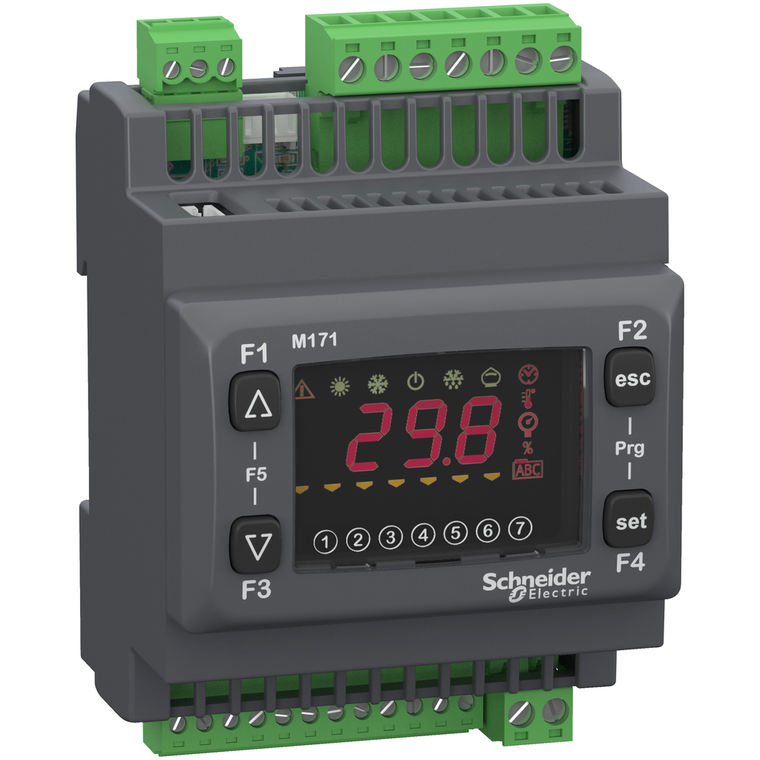

Schneider Electric TM171OD14R M171 Opt. Display 14 Ios, 100-240 Vac

SKU:

TM171OD14R

UPC:

3.60648E+12

MPN:

Condition:

New

Discrete Input Number:

2

Variant:

programmable

Contacts Usage:

volt-free contacts

Rohs Exemption Information:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Or Component Type:

controller

Discrete Input Logic:

sink or source (positive/negative)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Discrete Output Number:

3 relay outputs SPST with same common || 1 relay outputs SPDT with same common

Input/Output Number:

5 analog output || 4 digital output || 5 analog input

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Net Weight:

0.19 kg

Analogue Input Number:

2 configurable || 3 analog input NTC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Number Of Port:

1 LAN expansion bus

Circularity Profile:

ENVEOLI1710004EN

Product Specific Application:

HVAC and pumping solution

Height:

87 mm

Width:

70.2 mm

Discrete Output Current:

2 A relay

China Rohs Regulation:

X

Analogue Input Type:

voltage 0...5 V ratiometric) || voltage 0...10 V || NTC temperature probe - 50...100 °C 0.1 °C || Pt 1000 temperature probe - 50...400 °C 0.1 °C || current 0...20 mA/4...20 mA || voltage 0...1 V

Depth:

61.6 mm

Analogue Output Number:

2 voltage 0...10 V || 2 PWM/PPM 20 kHz, 12 V, 35 mA || 1 current 0...20 mA/4...20 mA

Range Of Product:

Modicon M171/M172

Sustainable Offer Status:

Green Premium product

Sensor Power Supply:

12-12 V DC 85 mA

[Us] Rated Supply Voltage:

100...240 V

Number Of Inputs/Outputs:

14

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP1710004EN

Upgradeability:

Upgradeable through digital modules and upgraded components
