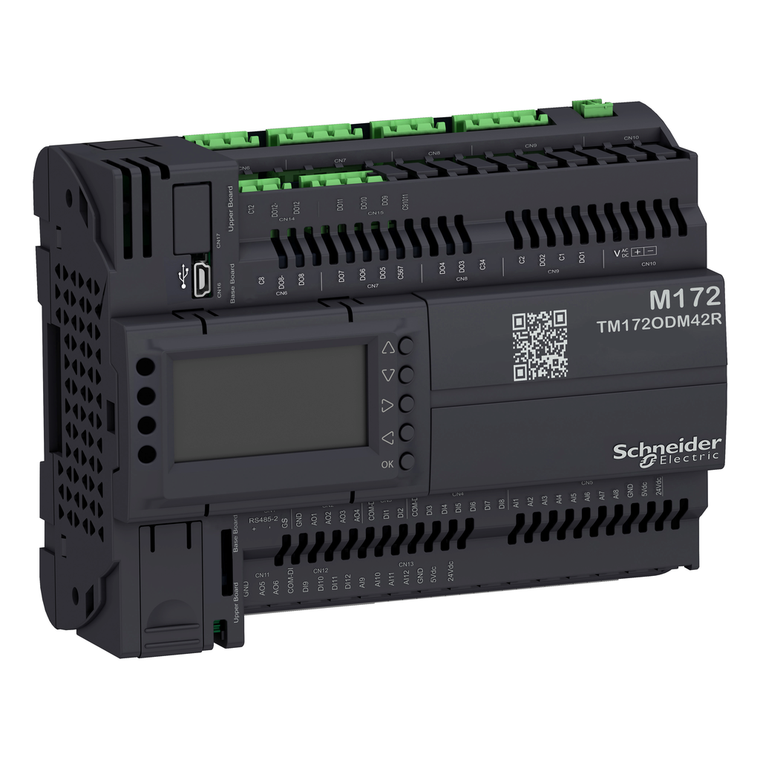

12 analog input || 6 analog output || 12 digital input || 12 digital output
Mercury Free:
Yes
China Rohs Regulation:
X
Overvoltage Category:
II
Sustainable Offer Status:
Green Premium product
Depth:
60.5 mm
Sensor Power Supply:
5-5 V DC 50 mA supplied by the controller || 24-24 V DC 150 mA supplied by the controller
Upgradeability:
Upgradeable through digital modules and upgraded components
Ambient Air Temperature For Storage:
-30-70 °C
Realtime Clock:
built-in <= 30 s/month -20-65 °C
Discrete Input Voltage:
24 V AC/DC
Discrete Input Number:
12
Discrete Input Logic:
sink or source (positive/negative)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Analogue Input Type:
impedance 0...1500 hOhm 1 hOhm 10 kOhm || impedance 0...300 daOhm 1 daOhm 2 kOhm || NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm || voltage 0...10 V 1 digit > 10 kOhm || NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1
Analogue Output Number:
4 voltage 0...10 V || 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)
Circularity Profile:
ENVEOLI1709014EN
Display Type:
Backlit LCD - 128 x 64 pixels
Net Weight:
0.385 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Local Signalling:
for programmable 1 LED (red) || for programmable 1 LED (yellow) || for programmable 1 LED (green) || for power 1 LED (green)
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP20
Height:
110 mm
Product Specific Application:
HVAC control
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Input Impedance:
20 kOhm
Measurement Accuracy:
NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C || NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C || NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C || PTC - 55...155 °C +/- 1.1 °C || Pt 1000 - 200...-100 °C +/- 10 °C || Pt 1000 - 100...-50 °C +/- 2.5 °C || Pt 1
Ambient Air Temperature For Operation:
-20-65 °C UL 60730-1 || -20-60 °C horizontal UL 60730-1
Variant:
programmable
Number Of Inputs/Outputs:
42
Environmental Disclosure:
ENVPEP1709014EN
Product Or Component Type:
programmable controllers
Number Of Port:
1 CAN port - screw terminal block || 1 USB type mini B - USB device port Mini-B || 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP)
Operating Altitude:
0...6561.68 ft (0...2000 m)
Product Certifications:
EAC || CE || cURus || CSA || RCM
Directives:
2014/30/EU - electromagnetic compatibility || 2014/35/EU - low voltage directive
Range Of Product:
Modicon M171/M172
Analogue Input Number:
12 configurable by pair
Width:
144 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Relative Humidity:
5-95 % non-condensing
Power Consumption In W:
14 W 24 V AC/DC
Standards:
CAN/CSA-E60730-1 || CSA E60730-2-9 || EN 60068-2-27 || EN 60068-2-6 Fc || EN 60730-1 || EN 60730-2-9 || UL 60730-1 || UL 60730-2-9 || IEC 61000-4-2 || IEC 61000-4-3 || IEC 61000-4-4 || IEC 61000-4-5 || IEC 61000-4-6 || IEC 61000-4-11 || UL94 (materia
Discrete Output Number:
2 relay outputs SPDT with independent common || 3 relay outputs SPST with same common || 5 relay outputs SPST with same common || 2 relay outputs SPST with independent common
