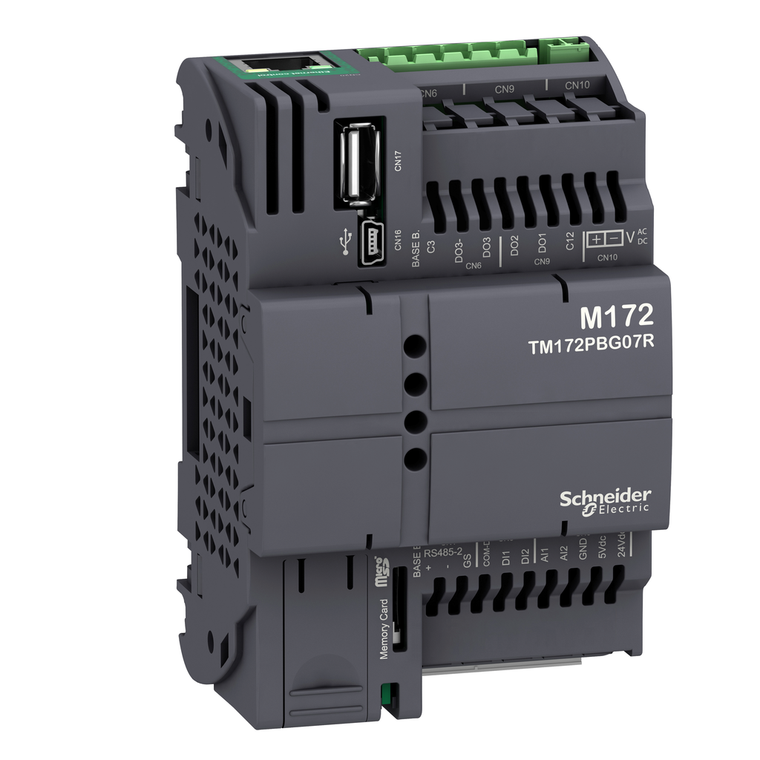

Schneider Electric TM172PBG07R M172 Perf. Blind 7 I/Os, Eth, 2 Rs485

(No reviews yet) Write a Review

Write a Review

Schneider Electric TM172PBG07R M172 Perf. Blind 7 I/Os, Eth, 2 Rs485

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM172PBG07R

UPC:

3606481390059

MPN:

Condition:

New

Ambient Air Temperature For Operation:

-20-60 °C

Discrete Output Number:

1 relay outputs SPDT with independent common || 2 relay outputs SPST with same common

Width:

72 mm

Sensor Power Supply:

5-5 V DC 40 mA supplied by the controller || 24-24 V DC 100 mA supplied by the controller

Discrete Input Voltage:

24 V AC/DC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Depth:

60.5 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Local Signalling:

for programmable 1 LED (red) || for programmable 1 LED (yellow) || for programmable 1 LED (green) || for power 1 LED (green)

Discrete Input Logic:

sink or source (positive/negative) up to 2 kHz

Product Certifications:

CE || RCM || cURus || CSA || EAC

Discrete Input Current:

5 mA AC/DC

Rohs Exemption Information:

Yes

Realtime Clock:

built-in <= 30 s/month -20-60 °C

Analogue Input Number:

2 configurable by pair

Variant:

programmable

Input/Output Number:

2 digital input || 2 analog input || 3 digital output

Environmental Disclosure:

ENVPEP1803011EN

Input Impedance:

20 kOhm

Product Or Component Type:

programmable controllers

Discrete Output Current:

3 A relay SPST || 3 A relay SPDT

Ambient Air Temperature For Storage:

-30-70 °C

Overvoltage Category:

II

Power Consumption In W:

10 W 24 V AC/DC

Number Of Port:

1 CAN port - screw terminal block || 1 USB type A - USB type A female || 1 USB type mini B - USB device port Mini-B || 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) || 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)

Discrete Input Number:

2

Height:

110 mm

Directives:

2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility

Net Weight:

0.175 kg

Mounting Support:

DIN rail || panel mounting with accessory

Sustainable Offer Status:

Green Premium product

Measurement Accuracy:

0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit || 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit || 4...20 mA +/- 1 % of full scale +/- 1 digit || 0...10 V +/- 1 % of full scale +/- 1 digit || 0...5 V +/- 1 % of full scale +/- 1 digit ||

Pollution Degree:

2

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ip Degree Of Protection:

IP20

Display Type:

Without Display

Operating Altitude:

0...6561.68 ft (0...2000 m)

Upgradeability:

Upgradeable through digital modules and upgraded components

Mercury Free:

Yes

Standards:

IEC 61000-4-6 || UL 60730-1 || IEC 61000-4-3 || EN 60730-1 || IEC 61000-4-5 || IEC 61000-4-2 || EN 60068-2-6 Fc || EN 60730-2-9 || CSA E60730-2-9 || EN 60068-2-27 || CAN/CSA-E60730-1 || IEC 61000-4-11 || UL 60730-2-9 || IEC 61000-4-4 || UL94 (materia

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Relative Humidity:

5-95 % non-condensing

Product Specific Application:

HVAC

Range Of Product:

Modicon M171/M172

Circularity Profile:

ENVEOLI1803011EN

Analogue Input Type:

NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm at 25 °C) || NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm at 25 °C) || voltage 0...10 V 1 digit > 10 kOhm || voltage 0...5 V 1 digit > 20 kOhm absolute or rati

Number Of Inputs/Outputs:

7

China Rohs Regulation:

X

[Us] Rated Supply Voltage:

24 V +/- 10 % AC || 20...38 V DC
