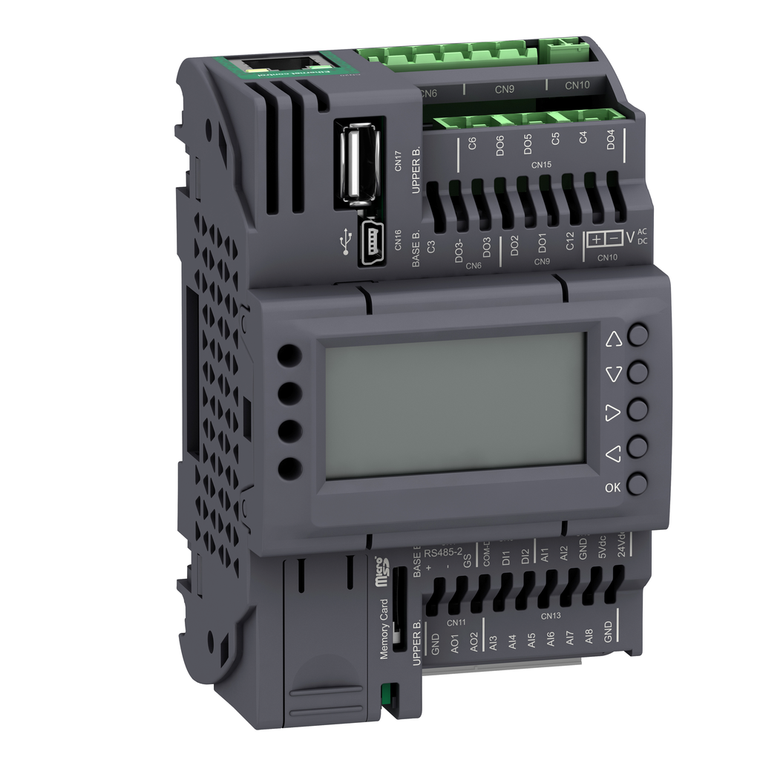

Schneider Electric TM172PDG18R M172 Perf. Display 18 I/Os, Eth, 2 Rs485

(No reviews yet) Write a Review

Write a Review

Schneider Electric TM172PDG18R M172 Perf. Display 18 I/Os, Eth, 2 Rs485

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM172PDG18R

UPC:

3.60648E+12

MPN:

Condition:

New

Number Of Port:

1 CAN port - screw terminal block || 1 USB type A - USB type A female || 1 USB type mini B - USB device port Mini-B || 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) || 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)

Circularity Profile:

ENVEOLI1803011EN

Mercury Free:

Yes

Analogue Input Type:

NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm at 25 °C) || NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm at 25 °C) || voltage 0...10 V 1 digit > 10 kOhm || voltage 0...5 V 1 digit > 20 kOhm absolute o

Range Of Product:

Modicon M171/M172

Product Certifications:

CSA || RCM || cURus || CE || EAC

Environmental Disclosure:

ENVPEP1803011EN

Depth:

60.5 mm

Rohs Exemption Information:

Yes

[Us] Rated Supply Voltage:

24 V +/- 10 % AC || 20...38 V DC

Discrete Input Logic:

sink or source (positive/negative) up to 2 kHz

Measurement Accuracy:

0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit || 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit || 4...20 mA +/- 1 % of full scale +/- 1 digit || 0...10 V +/- 1 % of full scale +/- 1 digit || 0...5 V +/- 1 % of full scale +/- 1 digit ||

Discrete Input Current:

5 mA AC/DC

Power Consumption In W:

11 W 24 V AC/DC

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ambient Air Temperature For Operation:

-20-60 °C

Net Weight:

0.225 kg

Input/Output Number:

2 analog output || 6 digital output || 8 analog input || 2 digital input

Variant:

programmable

Upgradeability:

Upgradeable through digital modules and upgraded components

Width:

72 mm

Product Or Component Type:

programmable controllers

Discrete Output Number:

1 relay outputs SPDT with independent common || 2 relay outputs SPST with same common || 3 relay outputs SPST with independent common

Product Specific Application:

HVAC

Local Signalling:

for programmable 1 LED (red) || for programmable 1 LED (yellow) || for programmable 1 LED (green) || for power 1 LED (green)

Mounting Support:

DIN rail || panel mounting with accessory

Overvoltage Category:

II

Analogue Output Number:

2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)

China Rohs Regulation:

X

Ambient Air Temperature For Storage:

-30-70 °C

Pollution Degree:

2

Realtime Clock:

built-in <= 30 s/month -20-60 °C

Standards:

IEC 61000-4-6 || CAN/CSA-E60730-1 || IEC 61000-4-5 || CSA E60730-2-9 || IEC 61000-4-2 || UL 60730-1 || IEC 61000-4-3 || EN 60068-2-27 || UL 60730-2-9 || EN 60068-2-6 Fc || IEC 61000-4-4 || EN 60730-2-9 || IEC 61000-4-11 || EN 60730-1 || UL94 (materia

Sensor Power Supply:

5-5 V DC 40 mA supplied by the controller || 24-24 V DC 100 mA supplied by the controller

Height:

110 mm

Sustainable Offer Status:

Green Premium product

Ip Degree Of Protection:

IP20

Analogue Input Number:

8 configurable by pair

Display Type:

Backlit LCD - 128 x 64 pixels

Discrete Output Current:

3 A relay SPST || 3 A relay SPDT

Discrete Input Number:

2

Discrete Input Voltage:

24 V AC/DC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Operating Altitude:

0...6561.68 ft (0...2000 m)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Directives:

2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility

Input Impedance:

20 kOhm

Relative Humidity:

5-95 % non-condensing

Number Of Inputs/Outputs:

18

Brochure:

View

Catalog:

View

Datasheet:

View
