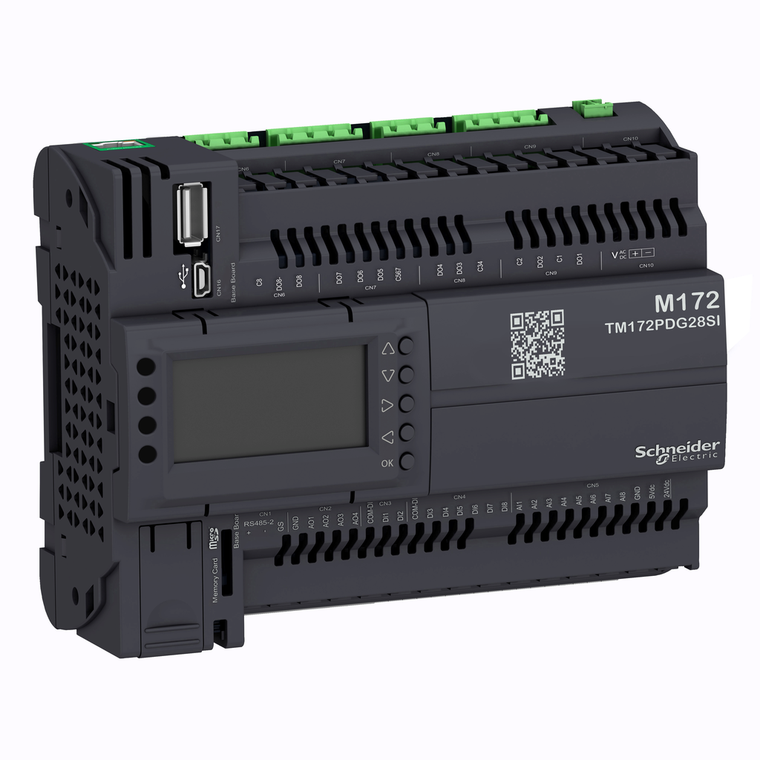

Schneider Electric TM172PDG28SI M172 Perf Dsp 28I/O Eth 2Rs485 2Ssr Isol

SKU:

TM172PDG28SI

UPC:

3606489729509

MPN:

Condition:

New

Variant:

programmable

Discrete Input Voltage:

24 V AC/DC

Circularity Profile:

ENVEOLI1709014EN

Ip Degree Of Protection:

IP20

Width:

144 mm

Discrete Input Number:

8

Ambient Air Temperature For Storage:

-30-70 °C

Operating Altitude:

0...6561.68 ft (0...2000 m)

Product Specific Application:

HVAC control

Directives:

2014/30/EU - electromagnetic compatibility || 2014/35/EU - low voltage directive

Net Weight:

0.3 kg

Overvoltage Category:

II

Range Of Product:

Modicon M171/M172

Rohs Exemption Information:

Yes

China Rohs Regulation:

X

Pollution Degree:

2

[Us] Rated Supply Voltage:

24 V +/- 10 % AC || 20...38 V DC

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Discrete Output Number:

1 relay outputs SPDT with independent common || 3 relay outputs SPST with same common || 2 relay outputs SPST with same common || 2 solid state, isolated SSR with independent common

Power Consumption In W:

12 W 24 V AC/DC

Relative Humidity:

5-95 % non-condensing

Height:

110 mm

Environmental Disclosure:

ENVPEP1709014EN

Display Type:

Backlit LCD - 128 x 64 pixels

Discrete Input Current:

2.5 mA

Upgradeability:

Upgradeable through digital modules and upgraded components

Standards:

CAN/CSA-E60730-1 || CSA E60730-2-9 || EN 60068-2-27 || EN 60068-2-6 Fc || EN 60730-1 || EN 60730-2-9 || UL 60730-1 || UL 60730-2-9 || IEC 61000-4-2 || IEC 61000-4-3 || IEC 61000-4-4 || IEC 61000-4-5 || IEC 61000-4-6 || IEC 61000-4-11 || UL94 (materia

Analogue Output Number:

2 voltage 0...10 V || 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)

Mounting Support:

DIN rail || panel mounting with accessory

Sustainable Offer Status:

Green Premium product

Input Impedance:

20 kOhm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Number Of Inputs/Outputs:

28

Analogue Input Type:

impedance 0...1500 hOhm 1 hOhm 10 kOhm || impedance 0...300 daOhm 1 daOhm 2 kOhm || NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm || voltage 0...10 V 1 digit > 10 kOhm || NTC NK103 Beta 3977 temperature probe - 40...137 °C 0

Product Or Component Type:

programmable controllers

Local Signalling:

for programmable 1 LED (red) || for programmable 1 LED (yellow) || for programmable 1 LED (green) || for power 1 LED (green)

Measurement Accuracy:

NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C || NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C || NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C || PTC - 55...155 °C +/- 1.1 °C || Pt 1000 - 200...-100 °C +/- 10 °C || Pt 1000 - 100...-50 °C +/- 2

Discrete Output Current:

3 A relay SPDT || 3 A relay SPST || 0.5 A solid state, isolated

Input/Output Number:

8 digital input || 8 analog input || 4 analog output || 8 digital output

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Certifications:

EAC || CE || cURus || CSA || RCM

Sensor Power Supply:

5-5 V DC 50 mA supplied by the controller || 24-24 V DC 150 mA supplied by the controller

Discrete Input Logic:

sink or source (positive/negative)

Number Of Port:

1 CAN port - screw terminal block || 1 USB type A - USB type A female || 1 USB type mini B - USB device port Mini-B || 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) || 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)

Analogue Input Number:

8 configurable by pair

Depth:

60.5 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Realtime Clock:

built-in <= 30 s/month -20-65 °C

Mercury Free:

Yes

Ambient Air Temperature For Operation:

-20-65 °C UL 60730-1 || -20-55 °C horizontal UL 60730-1
