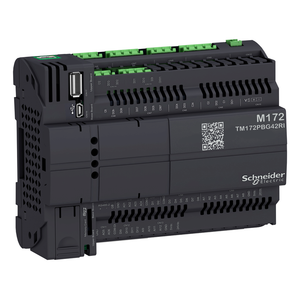

Schneider Electric TM172PDG42RI M172 Perf Display 42 I/O Eth 2Rs485 Isol

(No reviews yet) Write a Review

Write a Review

Schneider Electric TM172PDG42RI M172 Perf Display 42 I/O Eth 2Rs485 Isol

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM172PDG42RI

UPC:

3.60649E+12

MPN:

Condition:

New

Height:

110 mm

Input Impedance:

20 kOhm

Pollution Degree:

2

China Rohs Regulation:

X

Discrete Input Number:

12

Number Of Inputs/Outputs:

42

Range Of Product:

Modicon M171/M172

Relative Humidity:

5-95 % non-condensing

Power Consumption In W:

14 W 24 V AC/DC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Local Signalling:

for programmable 1 LED (red) || for programmable 1 LED (yellow) || for programmable 1 LED (green) || for power 1 LED (green)

Measurement Accuracy:

NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C || NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C || NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C || PTC - 55...155 °C +/- 1.1 °C || Pt 1000 - 200...-100 °C +/- 10 °C || Pt 1000 - 100...-50 °C +/- 2

Product Certifications:

EAC || CE || cURus || CSA || RCM

Analogue Input Number:

12 configurable by pair

Circularity Profile:

ENVEOLI1709014EN

Discrete Output Current:

3 A relay SPDT || 3 A relay SPST

Mounting Support:

panel mounting with accessory || DIN rail

Directives:

2014/30/EU - electromagnetic compatibility || 2014/35/EU - low voltage directive

Discrete Input Logic:

sink or source (positive/negative)

Depth:

60.5 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ip Degree Of Protection:

IP20

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sensor Power Supply:

5-5 V DC 50 mA supplied by the controller || 24-24 V DC 150 mA supplied by the controller

Number Of Port:

1 CAN port - screw terminal block || 1 USB type A - USB type A female || 1 USB type mini B - USB device port Mini-B || 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) || 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)

Variant:

programmable

Input/Output Number:

12 analog input || 6 analog output || 12 digital input || 12 digital output

Sustainable Offer Status:

Green Premium product

Analogue Output Number:

4 voltage 0...10 V || 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)

Ambient Air Temperature For Operation:

-20-65 °C UL 60730-1 || -20-60 °C horizontal UL 60730-1

Upgradeability:

Upgradeable through digital modules and upgraded components

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Specific Application:

HVAC control

Ambient Air Temperature For Storage:

-30-70 °C

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP1709014EN

Display Type:

Backlit LCD - 128 x 64 pixels

Width:

144 mm

Standards:

CAN/CSA-E60730-1 || CSA E60730-2-9 || EN 60068-2-27 || EN 60068-2-6 Fc || EN 60730-1 || EN 60730-2-9 || UL 60730-1 || UL 60730-2-9 || IEC 61000-4-2 || IEC 61000-4-3 || IEC 61000-4-4 || IEC 61000-4-5 || IEC 61000-4-6 || IEC 61000-4-11 || UL94 (materia

Analogue Input Type:

impedance 0...1500 hOhm 1 hOhm 10 kOhm || impedance 0...300 daOhm 1 daOhm 2 kOhm || NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm || voltage 0...10 V 1 digit > 10 kOhm || NTC NK103 Beta 3977 temperature probe - 40...137 °C 0

Discrete Input Voltage:

24 V AC/DC

Discrete Input Current:

2.5 mA

Rohs Exemption Information:

Yes

Operating Altitude:

0...6561.68 ft (0...2000 m)

Realtime Clock:

built-in <= 30 s/month -20-65 °C

Net Weight:

0.385 kg

Overvoltage Category:

II

[Us] Rated Supply Voltage:

24 V +/- 10 % AC || 20...38 V DC

Discrete Output Number:

2 relay outputs SPDT with independent common || 3 relay outputs SPST with same common || 5 relay outputs SPST with same common || 2 relay outputs SPST with independent common

Product Or Component Type:

programmable controllers
