Schneider Electric

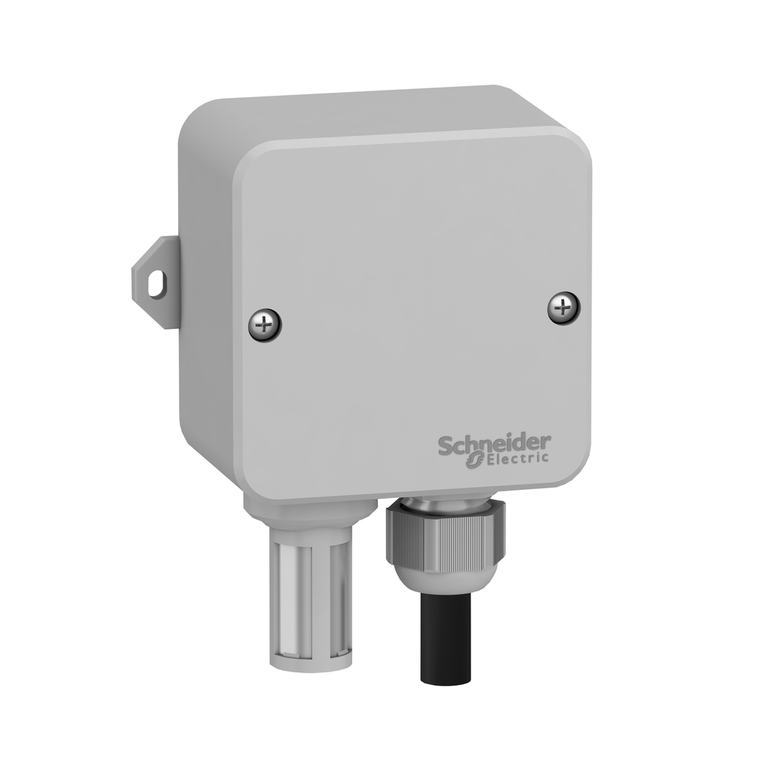

Schneider Electric TM1SHTCN4 Humidity & Temperature Sensor 4-20Ma Ntc

SKU:

TM1SHTCN4

UPC:

3606481390158

MPN:

Condition:

New

Average Consumption In Ma:

20 mA

Circularity Profile:

ENVEOLI1709014EN

Output Type:

current 4...20 mA +/- 3 % RH || NTC 10 kOhm/25 °C -40-60 °C +/- 1 °C

Height:

122 mm

Ambient Air Temperature For Operation:

-40-60 °C

Rohs Exemption Information:

Yes

Mounting Support:

mounting box

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Width:

100 mm

[Us] Rated Supply Voltage:

9...28 V DC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Toxic Heavy Metal Free:

Yes

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Storage:

-40-70 °C

Electrical Connection:

screw-clamp terminals

Accessory / Separate Part Type:

probe

Relative Humidity:

0-100 %

Ip Degree Of Protection:

IP65

Range Of Product:

Modicon M171/M172

Pollution Degree:

2

Product Specific Application:

humidity control

Fixing Mode:

2 fixing points

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation:

X

Product Certifications:

CE || cULus || EAC || UKCA

Accessory / Separate Part Category:

measurement accessory

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Net Weight:

0.14 kg

Device Mounting:

wall mounted

Environmental Disclosure:

ENVPEP1709014EN

Overvoltage Category:

I

Mercury Free:

Yes

Depth:

50.5 mm

Brochure:

View

Catalog:

View

Datasheet:

View
