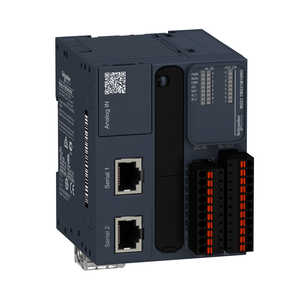

Schneider Electric TM221C16R Controller M221-16Io Relay Compact

Schneider Electric TM221C16R Controller M221-16Io Relay Compact

Schneider Electric
SKU:
TM221C16R
|
UPC:
3606480648694
Availability:
Contact us to confirm availability and lead times.
$323.75
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 9 discrete inputs and 7 relay outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, built-in flash memory of 256KB and SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 95mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.346kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Additional Information
Product Certifications:
RCM || ABS || LR || DNV-GL || EAC || cULus || CE || UKCA || cULus HazLoc
Execution Time For 1 Kinstruction:
0.3 ms event and periodic task
Backup Time:
1 year 25 °C by interruption of power supply)
Electrical Connection:
removable screw terminal block for inputs || removable screw terminal block for outputs || terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal
Conversion Time:
1 ms per channel + 1 controller cycle time analog input
Width:
95 mm
Discrete Output Current:
0.0833333333333333
Net Weight:
0.346 kg
Switching Frequency:
20 switching operations/minute with maximum load
Mechanical Durability:
20000000 cycles relay output
Insulation:
between input and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs || between supply and ground 1500 V AC || between sensor power supply and ground 500 V AC || between input a
Environmental Disclosure:
ENVPEP1403012EN
Execution Time Per Instruction:
0.2 µs Boolean
[Us] Rated Supply Voltage:
100...240 V AC
Network Frequency:
50/60 Hz
Inrush Current:
40 A
Sustainable Offer Status:
Green Premium product
Pollution Degree:
<= 2
Input Impedance:
3.4 kOhm discrete input || 100 kOhm analog input || 4.9 kOhm fast input
Discrete I/O Number:
16
Shock Resistance:
98 m/s² 11 ms
Environmental Characteristic:
ordinary and hazardous location
Discrete Input Voltage:
24 V
Memory Capacity:
256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM
Maximum Cable Distance Between Devices:
shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input
Control Signal Type:
single phase || frequency meter || dual phase (quadrature) || dual phase (pulse/direction)
Range Of Product:
Modicon M221
Local Signalling:
for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for I/O state 1 LED per channel (green)
Transmission Rate:
1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB
Minimum Load:
1 mA 5 V DC relay output
Power Supply Output Current:
0.325-0.325 A 5 V expansion bus || 0.12-0.12 A 24 V expansion bus
Communication Port Protocol:
USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
Surge Withstand:
2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV p
Absolute Accuracy Error:
+/- 1 % of full scale analog input
Electrical Durability:
100000 cycles AC-12, 120 V, 240 VA, resistive || 100000 cycles AC-12, 240 V, 480 VA, resistive || 300000 cycles AC-12, 120 V, 80 VA, resistive || 300000 cycles AC-12, 240 V, 160 VA, resistive || 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, ind
Resistance To Conducted Disturbances:
10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Exct Time For Event Task:
60 µs response time
Circularity Profile:
ENVEOLI1403012EN
Supply:
serial)serial link supply 5 V, <200 mA
Discrete Output Voltage:
5...125 V DC || 5...250 V AC
Ambient Air Temperature For Storage:
-25-70 °C
Realtime Clock:
with
Analogue Input Resolution:
10 bits
Height:
90 mm
Discrete Input Number:
9 , discrete input IEC 61131-2 Type 1
Reset Time:
1 s
Counting Input Number:
4 fast input (HSC mode) 100 kHz 32 bits
Vibration Resistance:
3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting
Analogue Input Number:
2 0...10 V
Resistance To Electromagnetic Fields:
10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3
Resistance To Electrostatic Discharge:
8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Resistance To Fast Transients:
2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)
Sensor Power Supply:
24-24 V DC 250 mA supplied by the controller
Discrete Input Logic:
sink or source (positive/negative)
Immunity To Microbreaks:
10 ms
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Output Voltage Limits:
125 V DC || 277 V AC
Electromagnetic Emission:
conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55
Storage Altitude:
0-3000 m
Ip Degree Of Protection:
IP20 with protective cover in place
Integrated Connection Type:
USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS485 || non isolated serial link serial 2 RJ45 RS232/RS485
Data Backed Up:
256 kB built-in flash memory backup of application and data
Battery Type:
BR2032 or CR2032X lithium non-rechargeable
Mercury Free:
Yes
Configurable Filtering Time:
0 ms input || 3 ms input || 12 ms input
Protection Type:
without protection 5 A
Response Time:
35 µs turn-off, I2...I5 input || 10 ms turn-on output || 10 ms turn-off output || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals inp
Rohs Exemption Information:
Yes
Depth:
70 mm
Ambient Air Temperature For Operation:
-10-55 °C horizontal installation) || -10-35 °C vertical installation)
Regulation Loop:
adjustable PID regulator up to 14 simultaneous loops
Marking:
CE
Supply Voltage Limits:
85-264 V
Clock Drift:
<= 30 s/month 25-25 °C
Pvc Free:
Yes
Resistance To Magnetic Fields:
30 A/m 50/60 Hz IEC 61000-4-8
Operating Altitude:
0...6561.68 ft (0...2000 m)
China Rohs Regulation:
X
Maximum Size Of Object Areas:
512 %KW constant words || 512 %M memory bits || 255 %C counters || 8000 %MW memory words || 255 %TM timers
Voltage State 1 Guaranteed:
>= 15 V input
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Relative Humidity:
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Maximum Number Of I/O Expansion Module:
4 (local I/O-Architecture) || 11 (remote I/O-Architecture)
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Discrete Output Number:
7 relay
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Maximum Current Per Output Common:
6 A COM 1 || 7 A COM 0
Discrete Input Current:
7 mA discrete input || 5 mA fast input
Permitted Overload On Inputs:
+/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input
Lsb Value:
10 mV
Product Or Component Type:
logic controller
Discrete Output Type:
relay normally open
Standards:
IEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Data Storage Equipment:
2 GB SD card optional)
Discrete Input Voltage Type:
DC
Maximum Power Consumption In Va:
46 VA 100...240 V with max number of I/O expansion module || 31 VA 100...240 V without I/O expansion module
Voltage State 0 Guaranteed:
<= 5 V input
Catalog:
View
Datasheet:
