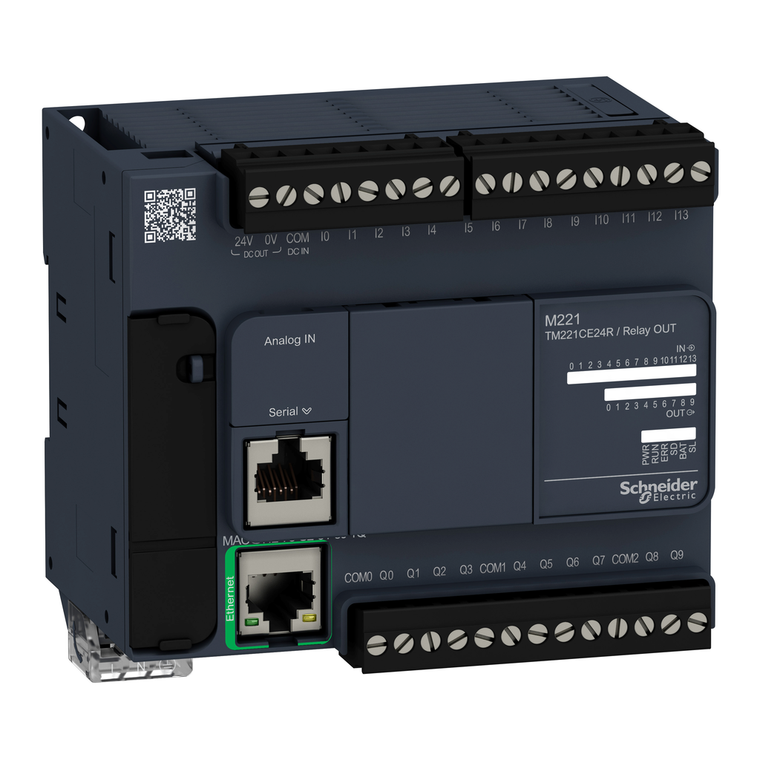

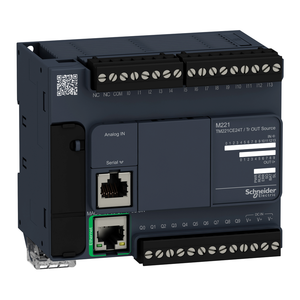

Schneider Electric TM221CE24R Controller M221-24Io Relay Ethernet Com.
Schneider Electric
$398.75
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 14 discrete inputs and 10 relay ethernet outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface and ethernet with RJ45 connector. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 110mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.395kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
- Maximum Size Of Object Areas:
- 255 %TM timers || 512 %M memory bits || 8000 %MW memory words || 255 %C counters || 512 %KW constant words
- Pollution Degree:
- <= 2
- Execution Time For 1 Kinstruction:
- 0.3 ms event and periodic task
- Resistance To Electromagnetic Fields:
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3
- Mercury Free:
- Yes
- Reset Time:
- 1 s
- Data Backed Up:
- 256 kB built-in flash memory backup of application and data
- Discrete I/O Number:
- 24
- Sensor Power Supply:
- 24-24 V DC 250 mA supplied by the controller
- Power Supply Output Current:
- 0.52-0.52 A 5 V expansion bus || 0.16-0.16 A 24 V expansion bus
- Conversion Time:
- 1 ms per channel + 1 controller cycle time analog input
- Supply:
- serial)serial link supply 5 V, <200 mA
- Standards:
- IEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01
- Immunity To Microbreaks:
- 10 ms
- Maximum Number Of I/O Expansion Module:
- 7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
- Discrete Input Current:
- 7 mA discrete input || 5 mA fast input
- Insulation:
- between input and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs || between supply and ground 1500 V AC || between sensor power supply and ground 500 V AC || between input a
- Depth:
- 70 mm
- Environmental Disclosure:
- ENVPEP1403012EN
- Electrical Connection:
- removable screw terminal block for inputs || removable screw terminal block for outputs || terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal
- Discrete Output Number:
- 10 relay
- Backup Time:
- 1 year 25 °C by interruption of power supply)
- Execution Time Per Instruction:
- 0.2 µs Boolean
- Switching Frequency:
- 20 switching operations/minute with maximum load
- Ip Degree Of Protection:
- IP20 with protective cover in place
- Mechanical Durability:
- 20000000 cycles relay output
- Pvc Free:
- Yes
- Resistance To Electrostatic Discharge:
- 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
- Communication Service:
- Modbus TCP server || Modbus TCP slave device || DHCP client || Modbus TCP client || Ethernet/IP adapter
- Permitted Overload On Inputs:
- +/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)
- Voltage State 0 Guaranteed:
- <= 5 V input
- Input Impedance:
- 3.4 kOhm discrete input || 100 kOhm analog input || 4.9 kOhm fast input
- Environmental Characteristic:
- ordinary and hazardous location
- Electromagnetic Emission:
- conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55
- Circularity Profile:
- ENVEOLI1403012EN
- Lsb Value:
- 10 mV
- Local Signalling:
- for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for I/O state 1 LED per channel (green) || for SL 1 LED (green) || for ACT Ethernet network activi
- Voltage State 1 Guaranteed:
- >= 15 V input
- Product Certifications:
- LR || cULus || ABS || DNV-GL || EAC || RCM || CE || UKCA || cULus HazLoc
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Of Product:
- Modicon M221
- Data Storage Equipment:
- 2 GB SD card optional)
- Response Time:
- 35 µs turn-off, I2...I5 input || 10 ms turn-on output || 10 ms turn-off output || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals inp
- Surge Withstand:
- 2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV p
- Exct Time For Event Task:
- 60 µs response time
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Maximum Current Per Output Common:
- 4 A COM 2 || 7 A COM 0 || 7 A COM 1
- Discrete Input Number:
- 14 , discrete input IEC 61131-2 Type 1
- Ambient Air Temperature For Operation:
- -10-55 °C horizontal installation) || -10-35 °C vertical installation)
- Sustainable Offer Status:
- Green Premium product
- Network Frequency:
- 50/60 Hz
- Product Or Component Type:
- logic controller
- Supply Voltage Limits:
- 85-264 V
- Minimum Load:
- 1 mA 5 V DC relay output
- Communication Port Protocol:
- USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network || Ethernet
- Storage Altitude:
- 0-3000 m
- Discrete Input Voltage Type:
- DC
- Analogue Input Number:
- 2 0...10 V
- Regulation Loop:
- adjustable PID regulator up to 14 simultaneous loops
- Vibration Resistance:
- 3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting
- Shock Resistance:
- 98 m/s² 11 ms
- Configurable Filtering Time:
- 0 ms input || 3 ms input || 12 ms input
- China Rohs Regulation:
- X
- Rohs Exemption Information:
- Yes
- Resistance To Magnetic Fields:
- 30 A/m 50/60 Hz IEC 61000-4-8
- [Us] Rated Supply Voltage:
- 100...240 V AC
- Transmission Rate:
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB
- Memory Capacity:
- 256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM
- Realtime Clock:
- with
- Mounting Support:
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Height:
- 90 mm
- Width:
- 110 mm
- Marking:
- CE
- Electrical Durability:
- 100000 cycles AC-12, 120 V, 240 VA, resistive || 100000 cycles AC-12, 240 V, 480 VA, resistive || 300000 cycles AC-12, 120 V, 80 VA, resistive || 300000 cycles AC-12, 240 V, 160 VA, resistive || 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, ind
- Clock Drift:
- <= 30 s/month 25-25 °C
- Discrete Input Voltage:
- 24 V
- Discrete Input Logic:
- sink or source (positive/negative)
- Absolute Accuracy Error:
- +/- 1 % of full scale analog input
- Resistance To Conducted Disturbances:
- 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Discrete Output Current:
- 0.0833333333333333
- Port Ethernet:
- 10BASE-T/100BASE-TX 1 100 m copper cable
- Battery Type:
- BR2032 or CR2032X lithium non-rechargeable
- Output Voltage Limits:
- 125 V DC || 277 V AC
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Integrated Connection Type:
- USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS232/RS485 || Ethernet RJ45
- Control Signal Type:
- A/B || single phase || pulse/direction
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -25-70 °C
- Relative Humidity:
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Net Weight:
- 0.395 kg
- Discrete Output Type:
- relay normally open
- Maximum Cable Distance Between Devices:
- shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Analogue Input Resolution:
- 10 bits
- Protection Type:
- without protection 5 A
- Inrush Current:
- 40 A
- Discrete Output Voltage:
- 5...125 V DC || 5...250 V AC
- Counting Input Number:
- 4 fast input (HSC mode) 100 kHz 32 bits
- Maximum Power Consumption In Va:
- 58 VA 100...240 V with max number of I/O expansion module || 35 VA 100...240 V without I/O expansion module
