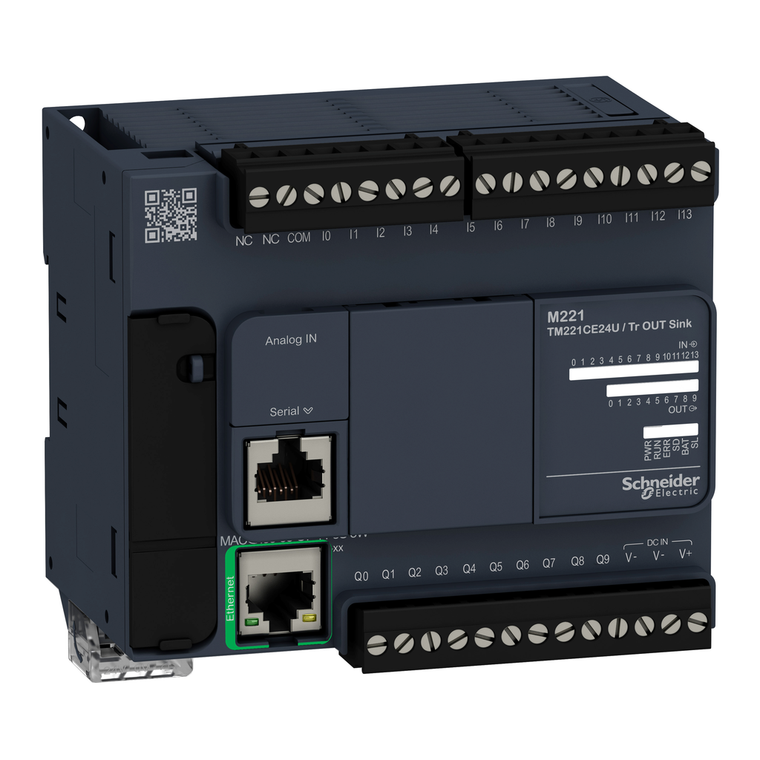

Schneider Electric TM221CE24U Controller M221-24Io Tr.Npn Ethernet

Schneider Electric TM221CE24U Controller M221-24Io Tr.Npn Ethernet

Schneider Electric
SKU:
TM221CE24U
|
UPC:
3606485408620
$398.75
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
CONTROLLER M221-24IO TR.NPN ETHERNET This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 14 discrete, 4 fast inputs, 10 sink transistor outputs, 2 fast outputs with PNP transistor output with 10bit resolution. The I/O are connected on removable screw terminal blocks. It is a Modicon logic controller with a rated supply/output voltage of 24V DC, an output current of 0.5A with sink or source input logic and positive output logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface, Ethernet with RJ45 connector. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 110mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.395kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. The Modicon M221 logic controllers are programmed with EcoStruxure Machine Expert - Basic software. It supports DIN rail mount.
Additional Information
Data Backed Up:
256 kB built-in flash memory backup of application and data
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Voltage State 1 Guaranteed:
>= 15 V input
Exct Time For Event Task:
60 µs response time
Ambient Air Temperature For Storage:
-25-70 °C
Discrete I/O Number:
24
Lsb Value:
10 mV
Discrete Output Current:
0.5 A
Maximum Voltage Drop:
<1 V
Protection Type:
without protection
Resistance To Magnetic Fields:
30 A/m 50/60 Hz IEC 61000-4-8
Product Or Component Type:
logic controller
Local Signalling:
for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for I/O state 1 LED per channel (green) || for SL 1 LED (green) || for ACT Ethernet network activi
Absolute Accuracy Error:
+/- 1 % of full scale analog input
Configurable Filtering Time:
0 ms input || 3 ms input || 12 ms input
Output Frequency:
100 kHz fast output (PWM/PLS mode) Q0...Q1 || 5 kHz output Q2...Q3 || 0.1 kHz output Q4...Q9
Discrete Input Current:
7 mA discrete input || 5 mA fast input
Depth:
70 mm
Counting Input Number:
4 fast input (HSC mode) 100 kHz 32 bits
Power Supply Output Current:
0.52-0.52 A 5 V expansion bus || 0.2-0.2 A 24 V expansion bus
Circularity Profile:
ENVEOLI1403012EN
Sustainable Offer Status:
Green Premium product
Battery Type:
BR2032 or CR2032X lithium non-rechargeable
Immunity To Microbreaks:
10 ms
Analogue Input Number:
2 0...10 V
Positioning Functions:
PTO 2 pulse/direction 100 kHz) || PTO 1 CW/CCW 100 kHz)
Backup Time:
1 year 25 °C by interruption of power supply)
Permitted Overload On Inputs:
+/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input
Realtime Clock:
with
Operating Altitude:
0...6561.68 ft (0...2000 m)
Maximum Tungsten Load:
<12 W output and fast output
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Input Impedance:
3.4 kOhm discrete input || 100 kOhm analog input || 4.9 kOhm fast input
Electrical Connection:
removable screw terminal block for inputs || removable screw terminal block for outputs || terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal
Storage Altitude:
0-3000 m
Rohs Exemption Information:
Yes
Conversion Time:
1 ms per channel + 1 controller cycle time analog input
Inrush Current:
35 A
Supply Voltage Limits:
20.4-28.8 V
Insulation:
between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated betw
Pollution Degree:
<= 2
Maximum Current Per Output Common:
0.208333333333333
Pvc Free:
Yes
Discrete Input Voltage:
24 V
Standards:
IEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01
Range Of Product:
Modicon M221
Control Signal Type:
single phase || A/B || pulse/direction
[Us] Rated Supply Voltage:
24 V DC
China Rohs Regulation:
X
Discrete Input Voltage Type:
DC
Electromagnetic Emission:
conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55
Voltage State 0 Guaranteed:
<= 5 V input
Port Ethernet:
10BASE-T/100BASE-TX 1 100 m copper cable
Net Weight:
0.57 kg
Maximum Power Consumption In W:
14 W 24 V with max number of I/O expansion module) || 4.8 W 24 V without I/O expansion module)
Maximum Number Of I/O Expansion Module:
7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
Maximum Size Of Object Areas:
255 %TM timers || 512 %KW constant words || 255 %C counters || 512 %M memory bits || 8000 %MW memory words
Environmental Disclosure:
ENVPEP1403012EN
Shock Resistance:
147 m/s² 11 ms
Relative Humidity:
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Analogue Input Resolution:
10 bits
Execution Time For 1 Kinstruction:
0.3 ms event and periodic task
Execution Time Per Instruction:
0.2 µs Boolean
Discrete Output Logic:
negative logic (sink)
Height:
90 mm
Response Time:
35 µs turn-off, I2...I5 input || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals input || 5 µs turn-on, turn-off, Q0...Q1 output ||
Regulation Loop:
adjustable PID regulator up to 14 simultaneous loops
Ip Degree Of Protection:
IP20 with protective cover in place
Discrete Output Type:
transistor
Memory Capacity:
256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM
Discrete Output Voltage:
24 V DC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Discrete Input Number:
14 , discrete input 4 fast input IEC 61131-2 Type 1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Resistance To Electrostatic Discharge:
8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Resistance To Conducted Disturbances:
10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Function Available:
PWM || PLS || frequency generator
Mechanical Durability:
20000000 cycles transistor output
Maximum Leakage Current:
0.1 mA transistor output
Supply:
serial)serial link supply 5 V, <200 mA
Maximum Cable Distance Between Devices:
shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input || shielded cable <3 m fast output
Marking:
CE
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Mercury Free:
Yes
Communication Port Protocol:
USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network || Ethernet
Discrete Output Number:
10 transistor 2 fast output
Environmental Characteristic:
ordinary and hazardous location
Resistance To Fast Transients:
2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)
Data Storage Equipment:
2 GB SD card optional)
Resistance To Electromagnetic Fields:
10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3
Integrated Connection Type:
USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS232/RS485 || Ethernet RJ45
Width:
110 mm
Surge Withstand:
2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV p
Product Certifications:
DNV-GL || ABS || RCM || EAC || cULus || LR || CE || UKCA || cULus HazLoc
Communication Service:
Ethernet/IP adapter || Modbus TCP client || Modbus TCP slave device || Modbus TCP server || DHCP client
Vibration Resistance:
3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting
Ambient Air Temperature For Operation:
-10-55 °C horizontal installation) || -10-35 °C vertical installation)
Discrete Input Logic:
sink or source (positive/negative)
Transmission Rate:
1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB
Clock Drift:
<= 30 s/month 25-25 °C
