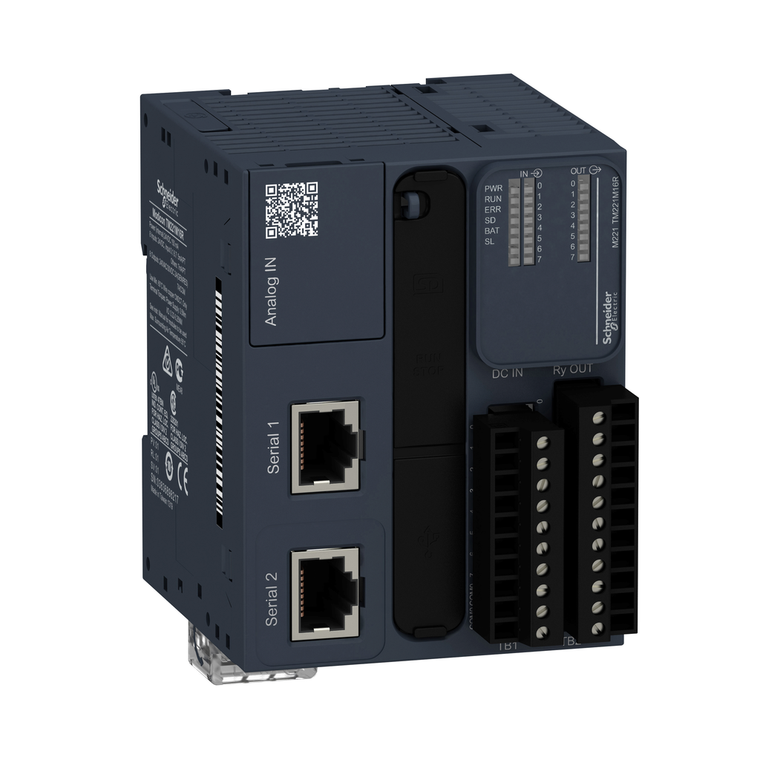

Schneider Electric TM221M16R Controller M221-16Io Relay Modular
Schneider Electric
$348.75
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 8 discrete inputs and 8 relay outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 24V DC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 70mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.264kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
- Relative Humidity:
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Maximum Current Per Output Common:
- 0.291666666666667
- Width:
- 70 mm
- Insulation:
- between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || between output groups 500 V AC || non-insulated between analogue input and in
- Supply:
- serial 1)serial link supply 5 V, <200 mA
- Mounting Support:
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Voltage State 1 Guaranteed:
- >= 15 V input
- Lsb Value:
- 10 mV
- Resistance To Electrostatic Discharge:
- 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
- Regulation Loop:
- adjustable PID regulator up to 14 simultaneous loops
- Reset Time:
- 1 s
- Counting Input Number:
- 4 fast input (HSC mode) 100 kHz 32 bits
- Discrete Input Current:
- 7 mA discrete input || 5 mA fast input
- Range Of Product:
- Modicon M221
- Conversion Time:
- 1 ms per channel + 1 controller cycle time analog input
- Surge Withstand:
- 2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV p
- Ambient Air Temperature For Operation:
- -10-55 °C horizontal installation) || -10-35 °C vertical installation)
- Maximum Number Of I/O Expansion Module:
- 7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)
- Maximum Power Consumption In W:
- 22.5 W 24 V with max number of I/O expansion module) || 3.6 W 24 V without I/O expansion module)
- Battery Type:
- BR2032 or CR2032X lithium non-rechargeable
- Data Storage Equipment:
- 2 GB SD card optional)
- Power Supply Output Current:
- 0.52-0.52 A 5 V expansion bus || 0.46-0.46 A 24 V expansion bus
- Discrete Output Voltage:
- 5...125 V DC || 5...250 V AC
- Discrete I/O Number:
- 16
- Resistance To Conducted Disturbances:
- 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Electrical Durability:
- 100000 cycles AC-12, 120 V, 240 VA, resistive || 100000 cycles AC-12, 240 V, 480 VA, resistive || 300000 cycles AC-12, 120 V, 80 VA, resistive || 300000 cycles AC-12, 240 V, 160 VA, resistive || 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, ind
- Transmission Rate:
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB
- Mechanical Durability:
- 20000000 cycles relay output
- Response Time:
- 35 µs turn-off, I2...I5 input || 10 ms turn-on output || 10 ms turn-off output || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals inp
- Backup Time:
- 1 year 25 °C by interruption of power supply)
- Configurable Filtering Time:
- 0 ms input || 3 ms input || 12 ms input
- Input Impedance:
- 100 kOhm analog input || 3.4 kOhm input || 4.9 kOhm fast input
- Immunity To Microbreaks:
- 10 ms
- Maximum Cable Distance Between Devices:
- shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input
- Supply Voltage Limits:
- 20.4-28.8 V
- Environmental Characteristic:
- ordinary and hazardous location
- Pvc Free:
- Yes
- Analogue Input Resolution:
- 10 bits
- [Us] Rated Supply Voltage:
- 24 V DC
- Circularity Profile:
- ENVEOLI1403012EN
- Clock Drift:
- <= 30 s/month 25-25 °C
- Control Signal Type:
- pulse/direction || A/B || single phase
- Mercury Free:
- Yes
- Storage Altitude:
- 0-3000 m
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Discrete Input Logic:
- sink or source (positive/negative)
- Electromagnetic Emission:
- conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55
- Absolute Accuracy Error:
- +/- 1 % of full scale analog input
- Voltage State 0 Guaranteed:
- <= 5 V input
- Rohs Exemption Information:
- Yes
- Integrated Connection Type:
- USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS485 || non isolated serial link serial 2 RJ45 RS232/RS485
- Output Voltage Limits:
- 125 V DC || 277 V AC
- Discrete Output Type:
- relay normally open
- Ambient Air Temperature For Storage:
- -25-70 °C
- Discrete Output Number:
- 8 relay
- Ip Degree Of Protection:
- IP20 with protective cover in place
- Shock Resistance:
- 98 m/s² 11 ms
- Inrush Current:
- 35 A
- Minimum Load:
- 1 mA 5 V DC relay output
- Maximum Size Of Object Areas:
- 255 %TM timers || 8000 %MW memory words || 255 %C counters || 512 %M memory bits || 512 %KW constant words
- Discrete Output Current:
- 0.0833333333333333
- Standards:
- IEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01
- Switching Frequency:
- 20 switching operations/minute with maximum load
- Discrete Input Number:
- 8 , discrete input IEC 61131-2 Type 1
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pollution Degree:
- <= 2
- Environmental Disclosure:
- ENVPEP1403012EN
- Product Certifications:
- DNV-GL || ABS || LR || cULus || RCM || EAC || CE || UKCA || cULus HazLoc
- Realtime Clock:
- with
- Product Or Component Type:
- logic controller
- Protection Type:
- without protection 5 A
- Resistance To Magnetic Fields:
- 30 A/m 50/60 Hz IEC 61000-4-8
- Electrical Connection:
- terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal || removable screw terminal block, 10 for inputs || removable screw terminal block, 11 for outputs
- Execution Time Per Instruction:
- 0.2 µs Boolean
- Execution Time For 1 Kinstruction:
- 0.3 ms event and periodic task || 0.7 ms other instruction
- Application Structure:
- 1 configurable freewheeling/cyclic master task || 1 cyclic auxiliary task || 8 interrupt tasks
- Discrete Input Voltage:
- 24 V
- China Rohs Regulation:
- X
- Exct Time For Event Task:
- 60 µs response time
- Permitted Overload On Inputs:
- +/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input
- Resistance To Electromagnetic Fields:
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3
- Analogue Input Number:
- 2 0...10 V
- Marking:
- CE
- Communication Port Protocol:
- USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
- Depth:
- 70 mm
- Data Backed Up:
- 256 kB built-in flash memory backup of application and data
- Vibration Resistance:
- 3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting
- Local Signalling:
- for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for I/O state 1 LED per channel (green)
- Discrete Input Voltage Type:
- DC
- Height:
- 90 mm
- Memory Capacity:
- 256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Net Weight:
- 0.264 kg
- Communication Service:
- Modbus slave || Modbus master
