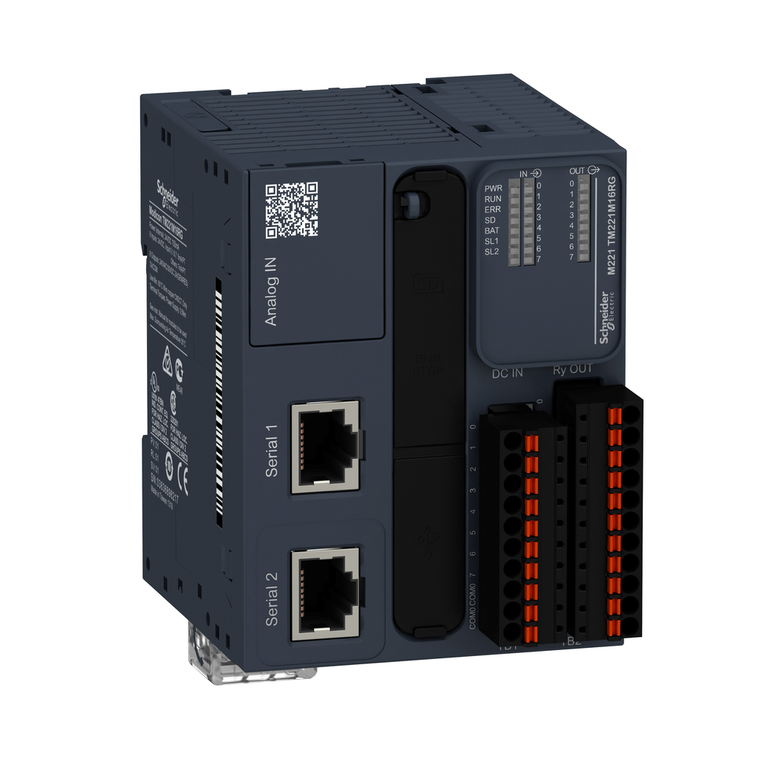

Schneider Electric TM221M16RG Controller M221-16Io Relay Spring Mod

Schneider Electric TM221M16RG Controller M221-16Io Relay Spring Mod

Schneider Electric
SKU:
TM221M16RG
|
UPC:
3606480611261
Availability:
Contact us to confirm availability and lead times.
$348.75
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 8 discrete inputs and 8 relay spring outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 24V DC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 70mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.264kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Additional Information
Lsb Value:
10 mV
Inrush Current:
35 A
Mechanical Durability:
20000000 cycles relay output
Integrated Connection Type:
USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS485 || non isolated serial link serial 2 RJ45 RS232/RS485
Operating Altitude:
0...6561.68 ft (0...2000 m)
Discrete Input Logic:
sink or source (positive/negative)
Environmental Characteristic:
ordinary and hazardous location
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Reset Time:
1 s
Input Impedance:
100 kOhm analog input || 3.4 kOhm input || 4.9 kOhm fast input
Mercury Free:
Yes
Data Backed Up:
256 kB built-in flash memory backup of application and data
Pollution Degree:
<= 2
Regulation Loop:
adjustable PID regulator up to 14 simultaneous loops
Maximum Power Consumption In W:
22.5 W 24 V with max number of I/O expansion module) || 3.6 W 24 V without I/O expansion module)
Output Voltage Limits:
125 V DC || 277 V AC
Ip Degree Of Protection:
IP20 with protective cover in place
Storage Altitude:
0-3000 m
Immunity To Microbreaks:
10 ms
Backup Time:
1 year 25 °C by interruption of power supply)
Local Signalling:
for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for I/O state 1 LED per channel (green)
Resistance To Magnetic Fields:
30 A/m 50/60 Hz IEC 61000-4-8
Analogue Input Number:
2 0...10 V
Counting Input Number:
4 fast input (HSC mode) 100 kHz 32 bits
Supply Voltage Limits:
20.4-28.8 V
Execution Time For 1 Kinstruction:
0.3 ms event and periodic task || 0.7 ms other instruction
Control Signal Type:
A/B || pulse/direction || single phase
Voltage State 0 Guaranteed:
<= 5 V input
Depth:
70 mm
Protection Type:
without protection 5 A
Electromagnetic Emission:
conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55
Maximum Number Of I/O Expansion Module:
7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Memory Capacity:
256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Response Time:
35 µs turn-off, I2...I5 input || 10 ms turn-on output || 10 ms turn-off output || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals inp
Net Weight:
0.264 kg
Resistance To Electrostatic Discharge:
8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
logic controller
Discrete Input Number:
8 , discrete input IEC 61131-2 Type 1
[Us] Rated Supply Voltage:
24 V DC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Discrete Output Current:
0.0833333333333333
Execution Time Per Instruction:
0.2 µs Boolean
Discrete I/O Number:
16
Surge Withstand:
2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV p
Analogue Input Resolution:
10 bits
Permitted Overload On Inputs:
+/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input
Absolute Accuracy Error:
+/- 1 % of full scale analog input
Insulation:
between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || between output groups 500 V AC || non-insulated between analogue input and in
Communication Service:
Modbus slave || Modbus master
Range Of Product:
Modicon M221
Resistance To Electromagnetic Fields:
10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3
Discrete Input Voltage Type:
DC
Switching Frequency:
20 switching operations/minute with maximum load
Discrete Input Current:
7 mA discrete input || 5 mA fast input
Discrete Output Number:
8 relay
Power Supply Output Current:
0.52-0.52 A 5 V expansion bus || 0.46-0.46 A 24 V expansion bus
Maximum Cable Distance Between Devices:
shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input
Pvc Free:
Yes
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Communication Port Protocol:
USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
Supply:
serial 1)serial link supply 5 V, <200 mA
Environmental Disclosure:
ENVPEP1403012EN
Minimum Load:
1 mA 5 V DC relay output
Electrical Durability:
100000 cycles AC-12, 120 V, 240 VA, resistive || 100000 cycles AC-12, 240 V, 480 VA, resistive || 300000 cycles AC-12, 120 V, 80 VA, resistive || 300000 cycles AC-12, 240 V, 160 VA, resistive || 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, ind
Resistance To Conducted Disturbances:
10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Realtime Clock:
with
Ambient Air Temperature For Operation:
-10-55 °C horizontal installation) || -10-35 °C vertical installation)
Ambient Air Temperature For Storage:
-25-70 °C
Transmission Rate:
1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB
Exct Time For Event Task:
60 µs response time
Rohs Exemption Information:
Yes
Application Structure:
8 interrupt tasks || 1 cyclic auxiliary task || 1 configurable freewheeling/cyclic master task
Data Storage Equipment:
2 GB SD card optional)
Marking:
CE
Shock Resistance:
98 m/s² 11 ms
China Rohs Regulation:
X
Conversion Time:
1 ms per channel + 1 controller cycle time analog input
Height:
90 mm
Resistance To Fast Transients:
2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)
Vibration Resistance:
3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting
Maximum Size Of Object Areas:
8000 %MW memory words || 255 %TM timers || 255 %C counters || 512 %KW constant words || 512 %M memory bits
Discrete Input Voltage:
24 V
Clock Drift:
<= 30 s/month 25-25 °C
Discrete Output Type:
relay normally open
Product Certifications:
RCM || LR || EAC || cULus || DNV-GL || ABS || CSA || CE || UKCA || cULus HazLoc
Relative Humidity:
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Discrete Output Voltage:
5...125 V DC || 5...250 V AC
Width:
70 mm
Electrical Connection:
terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal || removable spring terminal block, 10 for inputs || removable spring terminal block, 11 for outputs
Standards:
IEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01
Battery Type:
BR2032 or CR2032X lithium non-rechargeable
Configurable Filtering Time:
0 ms input || 3 ms input || 12 ms input
Circularity Profile:
ENVEOLI1403012EN
Voltage State 1 Guaranteed:
>= 15 V input
Maximum Current Per Output Common:
0.291666666666667
