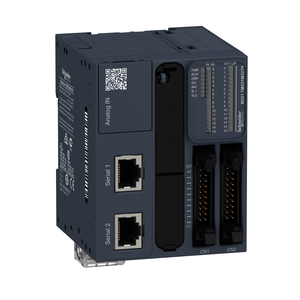

Schneider Electric TM221ME32TK Controller M221-32Io Tr.Pnp Eth Modular

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric TM221ME32TK Controller M221-32Io Tr.Pnp Eth Modular

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM221ME32TK

UPC:

3.60648E+12

MPN:

Condition:

New

Maximum Number Of I/O Expansion Module:

7 (local I/O-Architecture) || 14 (remote I/O-Architecture)

Input Impedance:

100 kOhm analog input || 3.4 kOhm input || 4.9 kOhm fast input

[Us] Rated Supply Voltage:

24 V DC

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Realtime Clock:

with

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Width:

70 mm

Height:

90 mm

Depth:

70 mm

Inrush Current:

35 A

Maximum Current Per Output Common:

1.6 A

Data Storage Equipment:

2 GB SD card optional)

Supply Voltage Limits:

20.4-28.8 V

Voltage State 1 Guaranteed:

>= 15 V input

Range Of Product:

Modicon M221

Discrete Input Voltage:

24 V

Discrete Output Voltage:

24 V DC

Environmental Characteristic:

ordinary and hazardous location

Resistance To Electrostatic Discharge:

8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2

Maximum Power Consumption In W:

23.2 W 24 V with max number of I/O expansion module) || 4.2 W 24 V without I/O expansion module)

Positioning Functions:

PTO 2 pulse/direction 100 kHz) || PTO 1 CW/CCW 100 kHz)

Regulation Loop:

adjustable PID regulator up to 14 simultaneous loops

Ambient Air Temperature For Operation:

-10-55 °C horizontal installation) || -10-35 °C vertical installation)

Resistance To Electromagnetic Fields:

10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3

Discrete Input Voltage Type:

DC

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP1403012EN

Conversion Time:

1 ms per channel + 1 controller cycle time analog input

Output Frequency:

100 kHz fast output (PWM/PLS mode) Q0...Q1 || 5 kHz output Q2...Q3 || 0.1 kHz output Q4...Q15

Operating Altitude:

0...6561.68 ft (0...2000 m)

Insulation:

between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated betw

Local Signalling:

for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for I/O state 1 LED per channel (green) || for SL 1 LED (green) || for ACT Ethernet network activi

Maximum Voltage Drop:

<1 V

Mechanical Durability:

20000000 cycles transistor output

Execution Time For 1 Kinstruction:

0.3 ms event and periodic task || 0.7 ms other instruction

Memory Capacity:

256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM

Ip Degree Of Protection:

IP20 with protective cover in place

Application Structure:

1 cyclic auxiliary task || 1 configurable freewheeling/cyclic master task || 8 interrupt tasks

Resistance To Conducted Disturbances:

10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Resistance To Magnetic Fields:

30 A/m 50/60 Hz IEC 61000-4-8

Absolute Accuracy Error:

+/- 1 % of full scale analog input

Function Available:

frequency generator || PWM || PLS

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circularity Profile:

ENVEOLI1403012EN

Response Time:

35 µs turn-off, I2...I5 input || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals input || 5 µs turn-on, turn-off, Q0...Q1 output ||

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mounting Support:

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Protection Type:

short-circuit and overload protection with automatic reset || short-circuit protection on output || overload and short-circuit protection 1 A

Product Or Component Type:

logic controller

Product Certifications:

ABS || DNV-GL || LR || cULus || EAC || RCM || CE || UKCA || cULus HazLoc

Ambient Air Temperature For Storage:

-25-70 °C

Lsb Value:

10 mV

Maximum Cable Distance Between Devices:

shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input || shielded cable <3 m fast output

Electrical Connection:

terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal || HE-10 connector, 20 for inputs || HE-10 connector, 20 for outputs

Maximum Tungsten Load:

<2.4 W output and fast output

Backup Time:

1 year 25 °C by interruption of power supply)

Control Signal Type:

single phase || A/B || pulse/direction

Surge Withstand:

2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV p

Analogue Input Resolution:

10 bits

Discrete Output Type:

transistor

Pvc Free:

Yes

Immunity To Microbreaks:

10 ms

Rohs Exemption Information:

Yes

Maximum Size Of Object Areas:

255 %C counters || 512 %M memory bits || 512 %KW constant words || 8000 %MW memory words || 255 %TM timers

Reset Time:

1 s automatic reset

Discrete Input Logic:

sink or source (positive/negative)

Execution Time Per Instruction:

0.2 µs Boolean

Power Supply Output Current:

0.52-0.52 A 5 V expansion bus || 0.48-0.48 A 24 V expansion bus

Discrete Input Current:

7 mA discrete input || 5 mA fast input

Counting Input Number:

4 fast input (HSC mode) 100 kHz 32 bits

China Rohs Regulation:

X

Mercury Free:

Yes

Exct Time For Event Task:

60 µs response time

Supply:

serial 1)serial link supply 5 V, <200 mA

Permitted Overload On Inputs:

+/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input

Discrete Output Number:

16 transistor 2 fast output

Marking:

CE

Pollution Degree:

<= 2

Storage Altitude:

0-3000 m

Integrated Connection Type:

USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS232/RS485 || Ethernet RJ45

Discrete Input Number:

16 , discrete input 4 fast input IEC 61131-2 Type 1

Communication Port Protocol:

USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network || Ethernet

Relative Humidity:

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Clock Drift:

<= 30 s/month 25-25 °C

Port Ethernet:

10BASE-T/100BASE-TX 1 100 m copper cable

Vibration Resistance:

3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting

Analogue Input Number:

2 0...10 V

Shock Resistance:

147 m/s² 11 ms

Standards:

IEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01

Electromagnetic Emission:

conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55

Discrete Output Current:

0.1 A

Configurable Filtering Time:

0 ms input || 3 ms input || 12 ms input

Communication Service:

Modbus TCP slave device || Modbus TCP server || Modbus TCP client || Ethernet/IP adapter || DHCP client

Voltage State 0 Guaranteed:

<= 5 V input

Transmission Rate:

1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB

Net Weight:

0.27 kg

Discrete Output Logic:

positive logic (source)

Data Backed Up:

256 kB built-in flash memory backup of application and data

Resistance To Fast Transients:

2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)

Discrete I/O Number:

32

Maximum Leakage Current:

0.1 mA transistor output

Battery Type:

BR2032 or CR2032X lithium non-rechargeable
