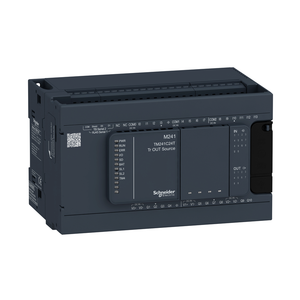

Schneider Electric TM241C24R Controller M241-24Io Relay
This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This logic controller provides 14 discrete, 8 fast inputs, 6 relay, 4 transistor, 4 fast outputs with transistor, relay output. It has a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC or 5V to 250V AC for relay, 24V DC for transistor, and an output current of 2A for relay, 0.1A for fast output, 0.5A for transistor. This product enables to build application intuitively as never before due to an organised screen design. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link 1 with RJ45 connector and RS232/RS485 interface and non isolated serial link 2 with removable screw terminal block connector and RS485 interface. It is a Modicon M241 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 16GB. It is an IP20 rated product. Its dimensions are 150mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.53kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.
- Mounting Support:
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Battery Type:
- BR2032 lithium non-rechargeable 4 year(s)
- Counting Input Number:
- 4 fast input (HSC mode) 200 kHz || 14 standard input 1 kHz
- Standards:
- ANSI/ISA 12-12-01 || CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2:2007 || Marine specification (LR, ABS, DNV, GL) || UL 508
- Sustainable Offer Status:
- Green Premium product
- Memory Capacity:
- 64 MB system memory RAM
- Application Structure:
- 4 cyclic master tasks || 3 cyclic master tasks + 1 freewheeling task || 8 external event tasks || 8 event tasks
- Voltage State 1 Guaranteed:
- >= 15 V input
- Ambient Air Temperature For Operation:
- -10-50 °C vertical installation) || -10-55 °C horizontal installation)
- Discrete Output Number:
- 6 relay || 4 transistor 4 fast output
- Supply:
- serial 1)serial link supply 5 V, <200 mA
- Electromagnetic Emission:
- conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines)0.15-0.5 MHz IEC 55011 || conducted emission
- Output Voltage Limits:
- 125 V DC relay output || 30 V DC transistor output || 277 V AC relay output
- Discrete Input Number:
- 14 , discrete input 8 fast input IEC 61131-2 Type 1
- Maximum Cable Distance Between Devices:
- unshielded cable <50 m input || shielded cable <10 m fast input || unshielded cable <50 m output || shielded cable <3 m fast output
- Product Or Component Type:
- logic controller
- Resistance To Electrostatic Discharge:
- 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
- Discrete Output Logic:
- positive logic (source)
- Pollution Degree:
- 2
- Configurable Filtering Time:
- 1 µs fast input
- Discrete Input Logic:
- sink or source
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.53 kg
- Storage Altitude:
- 0-3000 m
- Mercury Free:
- Yes
- Positioning Functions:
- PTO 4 100 kHz)
- Network Frequency:
- 50/60 Hz
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Supply Voltage Limits:
- 85-264 V
- Pvc Free:
- Yes
- Discrete Input Voltage:
- 24 V
- Backup Time:
- 2 years 25 °C
- Surge Withstand:
- 2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 1 kV power lines (AC) differential mode IEC 61000-4-5 || 1 kV relay output differential mode IEC 61000-
- Reset Time:
- 10 ms automatic reset output || 12 s automatic reset fast output
- Accuracy:
- +/- 0.1 % 0.02-0.1 kHz fast output || +/- 1 % 0.1-1 kHz fast output
- Relative Humidity:
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Environmental Disclosure:
- ENVPEP1307080EN
- Protection Type:
- short-circuit protection transistor output || short-circuit and overload protection with automatic reset transistor output || reverse polarity protection transistor output || without protection relay output
- Range Of Product:
- Modicon M241
- Height:
- 90 mm
- Discrete Output Type:
- transistor || relay
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Discrete Output Current:
- 2 A relay output Q4...Q9) || 0.1 A fast output (PTO mode) TR0...TR3) || 0.5 A transistor output TR0...TR3)
- Discrete Output Voltage:
- 5...125 V DC relay output || 5...250 V AC relay output || 24 V DC transistor output
- Execution Time For 1 Kinstruction:
- 0.3 ms event and periodic task || 0.7 ms other instruction
- China Rohs Regulation:
- X
- Immunity To Microbreaks:
- 10 ms
- Response Time:
- 50 µs turn-on, I0...I13 input
- Communication Port Protocol:
- non isolated serial link Modbus master/slave
- Local Signalling:
- for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for I/O error (I/O) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for bus fault
- Transmission Rate:
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s 3-3 m USB
- Maximum Output Frequency:
- 1 kHz transistor output || 20 kHz fast output (PWM mode) || 100 kHz fast output (PLS mode)
- Integrated Connection Type:
- non isolated serial link serial 1 RJ45 RS232/RS485 || non isolated serial link serial 2 removable screw terminal block RS485 || USB port mini B USB 2.0
- Discrete Input Voltage Type:
- DC
- Data Storage Equipment:
- <= 16 GB SD card optional)
- Marking:
- CE
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 serial link) || 1 kV IEC 61000-4-4 input) || 1 kV IEC 61000-4-4 transistor output)
- Voltage State 0 Guaranteed:
- <= 5 V input
- Depth:
- 95 mm
- Ip Degree Of Protection:
- IP20 with protective cover in place
- Product Certifications:
- RCM || cULus || CE || UKCA || DNV-GL || ABS || LR
- Discrete Input Current:
- 5 mA input
- Data Backed Up:
- 128 MB built-in flash memory backup of user programs
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Realtime Clock:
- with
- Resistance To Conducted Disturbances:
- 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- [Us] Rated Supply Voltage:
- 100...240 V AC
- Insulation:
- between supply and internal logic 500 V AC || non-insulated between supply and ground
- Width:
- 150 mm
- Maximum Number Of I/O Expansion Module:
- 7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
- Ambient Air Temperature For Storage:
- -25-70 °C
- Discrete I/O Number:
- 24
- Electrical Connection:
- removable screw terminal block for inputs and outputs pitch 5.08 mm) || removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
- Vibration Resistance:
- 3.5 mm 5-8.4 Hz symmetrical rail || 3 gn 8.4-150 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 3 gn 8.4-150 Hz panel mounting
- Clock Drift:
- <= 60 s/month 25-25 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Resistance To Electromagnetic Fields:
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Sensor Power Supply:
- 24-24 V DC 400 mA supplied by the controller
- Input Impedance:
- 4.7 kOhm input
- Shock Resistance:
- 15 gn 11 ms
- Circularity Profile:
- ENVEOLI1307080EN
- Control Signal Type:
- A/B 100 kHz fast input (HSC mode) || pulse/direction 200 kHz fast input (HSC mode) || single phase 200 kHz fast input (HSC mode)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
