Schneider Electric TM241CE24U Controller M241-24Io Tr.Npn Ethernet

(No reviews yet) Write a Review

Write a Review

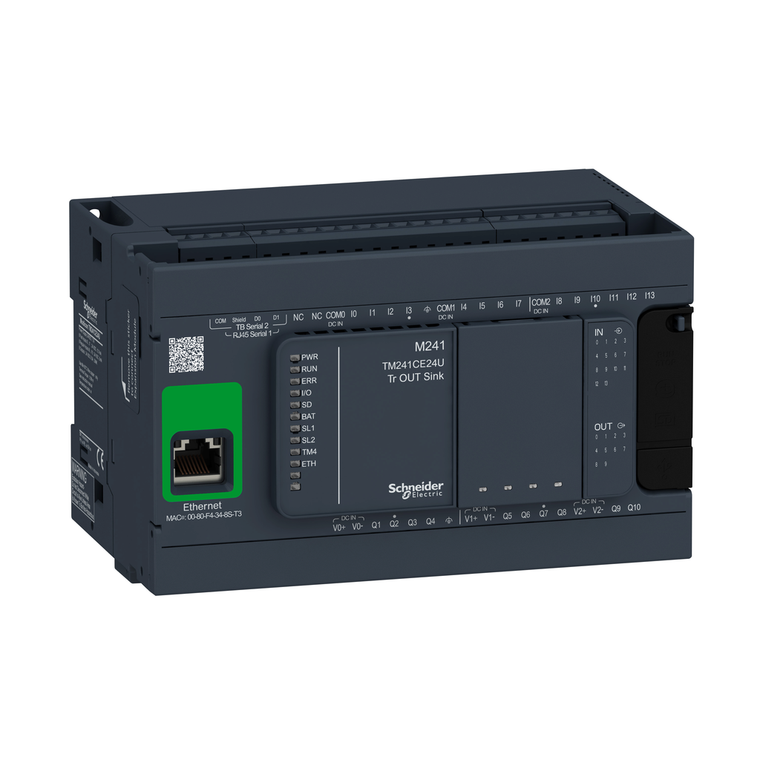

Schneider Electric TM241CE24U Controller M241-24Io Tr.Npn Ethernet

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM241CE24U

UPC:

3606480611155

MPN:

Condition:

New

Vibration Resistance:

3.5 mm 5-8.4 Hz symmetrical rail || 3 gn 8.4-150 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 3 gn 8.4-150 Hz panel mounting

Discrete Input Current:

5 mA input || 10.7 mA fast input

Transmission Rate:

1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s 3-3 m USB || 10/100 Mbit/s Ethernet

Port Ethernet:

10BASE-T/100BASE-TX - 1 copper cable

Environmental Disclosure:

ENVPEP1307080EN

Maximum Leakage Current:

5 µA output

Supply:

serial 1)serial link supply 5 V, <200 mA

Maximum Voltage Drop:

<1 V

Backup Time:

2 years 25 °C

Resistance To Electrostatic Discharge:

8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2

Discrete I/O Number:

24

Clock Drift:

<= 60 s/month 25-25 °C

Execution Time For 1 Kinstruction:

0.3 ms event and periodic task || 0.7 ms other instruction

Range Of Product:

Modicon M241

Operating Altitude:

0...6561.68 ft (0...2000 m)

Resistance To Fast Transients:

2 kV IEC 61000-4-4 power lines) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link) || 1 kV IEC 61000-4-4 input) || 1 kV IEC 61000-4-4 transistor output)

Reset Time:

10 ms automatic reset output || 12 s automatic reset fast output

Power Consumption In W:

32.6-40.4 W with max number of I/O expansion module)

Memory Capacity:

64 MB system memory RAM

China Rohs Regulation:

X

Inrush Current:

50 A

Standards:

ANSI/ISA 12-12-01 || CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2:2007 || Marine specification (LR, ABS, DNV, GL) || UL 508

Voltage State 0 Guaranteed:

<= 5 V input

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Us] Rated Supply Voltage:

24 V DC

Net Weight:

0.53 kg

Discrete Input Voltage Type:

DC

Mercury Free:

Yes

Discrete Output Number:

10 transistor 4 fast output

Data Storage Equipment:

<= 16 GB SD card optional)

Accuracy:

+/- 0.1 % 0.02-0.1 kHz fast output || +/- 1 % 0.1-1 kHz fast output

Pollution Degree:

2

Protection Type:

short-circuit protection || short-circuit and overload protection with automatic reset || reverse polarity protection fast output

Relative Humidity:

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Discrete Output Logic:

negative logic (sink)

Maximum Cable Distance Between Devices:

unshielded cable <50 m input || shielded cable <10 m fast input || unshielded cable <50 m output || shielded cable <3 m fast output

Web Services:

web server

Marking:

CE

Depth:

95 mm

Resistance To Conducted Disturbances:

10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Ambient Air Temperature For Operation:

-10-50 °C vertical installation) || -10-55 °C horizontal installation)

Local Signalling:

for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for I/O error (I/O) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for bus fault

Counting Input Number:

4 fast input (HSC mode) 200 kHz || 14 standard input 1 kHz

Maximum Number Of Connections:

8 Modbus server || 8 SoMachine protocol || 10 web server || 4 FTP server || 16 Ethernet/IP target || 8 Modbus client

Input Impedance:

4.7 kOhm input || 2.81 kOhm fast input

Sustainable Offer Status:

Green Premium product

Configurable Filtering Time:

1 µs fast input || 12 ms fast input || 0 ms input || 1 ms input || 4 ms input || 12 ms input

Discrete Output Voltage:

24 V DC transistor output

Width:

150 mm

Product Certifications:

RCM || cULus || CE || UKCA || DNV-GL || ABS || LR

Mounting Support:

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Communication Port Protocol:

non isolated serial link Modbus master/slave

Surge Withstand:

1 kV power lines (DC) common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV relay output differential mode IEC 61000-4-5 || 1 kV input common mode IEC 61000-4-5 |

Output Voltage Limits:

30 V DC

Discrete Input Voltage:

24 V

Ip Degree Of Protection:

IP20 with protective cover in place

Product Or Component Type:

logic controller

Positioning Functions:

PTO 4 100 kHz) || PTO 4 transistor output 1 kHz)

Maximum Current Per Output Common:

2 A Q0...Q3 fast output || 2 A Q4...Q7 output || 1 A Q8...Q9 output

Maximum Output Frequency:

20 kHz fast output (PWM mode) || 100 kHz fast output (PLS mode) || 1 kHz output

Electrical Connection:

removable screw terminal block for inputs and outputs pitch 5.08 mm) || removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)

Rohs Exemption Information:

Yes

Insulation:

between supply and internal logic 500 V AC || non-insulated between supply and ground || between input and internal logic 500 V AC || non-insulated between inputs || between fast input and internal logic 500 V AC || between output and internal logic

Shock Resistance:

15 gn 11 ms

Discrete Output Current:

0.5 A transistor output Q0...Q9) || 0.1 A fast output (PTO mode) Q0...Q3)

Voltage State 1 Guaranteed:

>= 15 V input

Maximum Number Of I/O Expansion Module:

7 (local I/O-Architecture) || 14 (remote I/O-Architecture)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Tungsten Load:

<2.4 W

Cycle Time:

10 ms 16 EtherNet/IP || 64 ms 64 Modbus TCP

Realtime Clock:

with

Data Backed Up:

128 MB built-in flash memory backup of user programs

Discrete Input Logic:

sink or source

Discrete Output Type:

transistor

Ambient Air Temperature For Storage:

-25-70 °C

Circularity Profile:

ENVEOLI1307080EN

Response Time:

50 µs turn-on, I0...I13 input || 50 µs turn-off, I0...I13 input || <= 2 µs turn-on, I0...I7 fast input || <= 2 µs turn-off, I0...I7 fast input || <= 34 µs turn-on, Q0...Q9 output || <= 250 µs turn-off, Q0...Q9 output || <= 2 µs turn-on, Q0...Q3 fast

Pvc Free:

Yes

Battery Type:

BR2032 lithium non-rechargeable 4 year(s)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Storage Altitude:

0-3000 m

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Number Of Slave:

64 Modbus TCP || 16 EtherNet/IP

Communication Service:

FDR || DHCP server via TM4 Ethernet switch network module || DHCP client embedded Ethernet port || SMS notifications || updating firmware || SNMP client/server || programming || NGVL || monitoring || IEC VAR ACCESS || FTP client/server || downloading

Resistance To Electromagnetic Fields:

10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3

Integrated Connection Type:

non isolated serial link serial 1 RJ45 RS232/RS485 || non isolated serial link serial 2 removable screw terminal block RS485 || USB port mini B USB 2.0 || Ethernet RJ45

Application Structure:

8 external event tasks || 4 cyclic master tasks || 8 event tasks || 3 cyclic master tasks + 1 freewheeling task

Electromagnetic Emission:

conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A30-230 MHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power

Control Signal Type:

A/B 100 kHz fast input (HSC mode) || pulse/direction 200 kHz fast input (HSC mode) || single phase 200 kHz fast input (HSC mode)

Immunity To Microbreaks:

10 ms

Supply Voltage Limits:

20.4-28.8 V

Height:

90 mm

Discrete Input Number:

14 , discrete input 8 fast input IEC 61131-2 Type 1
