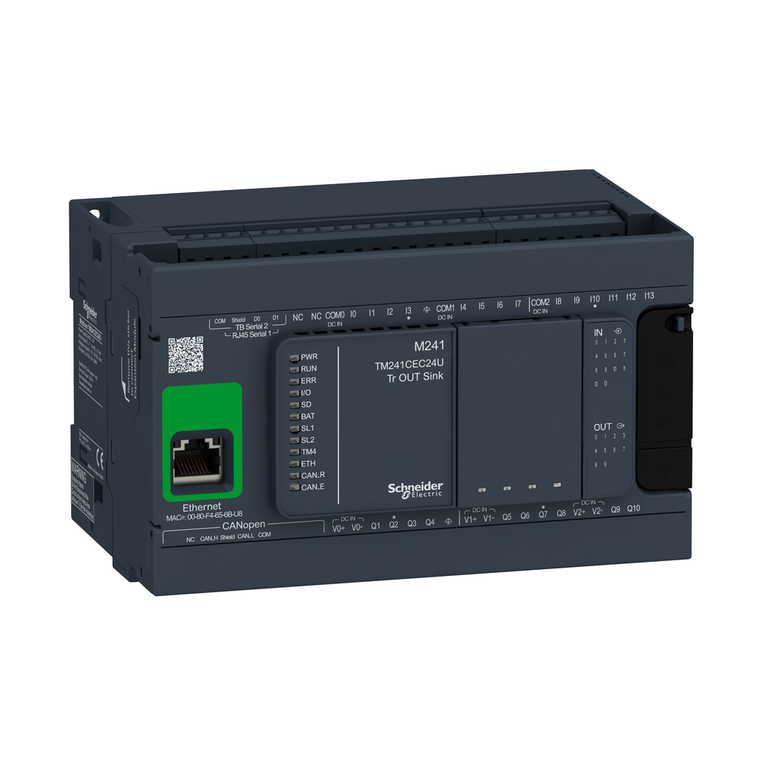

Schneider Electric TM241CEC24U Controller M241-24Io Tr.Npn Eth Can Mas

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric TM241CEC24U Controller M241-24Io Tr.Npn Eth Can Mas

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM241CEC24U

UPC:

3.60648E+12

MPN:

Condition:

New

Resistance To Electrostatic Discharge:

8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2

Integrated Connection Type:

non isolated serial link serial 1 RJ45 RS232/RS485 || non isolated serial link serial 2 removable screw terminal block RS485 || USB port mini B USB 2.0 || Ethernet RJ45 || CANopen J1939 male SUB-D 9

Shock Resistance:

15 gn 11 ms

Discrete Output Logic:

negative logic (sink)

Mounting Support:

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Discrete Input Voltage Type:

DC

Discrete Output Current:

0.5 A transistor output Q0...Q9) || 0.1 A fast output (PTO mode) Q0...Q3)

Marking:

CE

Discrete Input Logic:

sink or source

Maximum Leakage Current:

5 µA output

Product Or Component Type:

logic controller

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Height:

90 mm

Resistance To Electromagnetic Fields:

10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3

Memory Capacity:

64 MB system memory RAM

Maximum Number Of I/O Expansion Module:

7 (local I/O-Architecture) || 14 (remote I/O-Architecture)

Discrete Input Voltage:

24 V

Backup Time:

2 years 25 °C

Maximum Number Of Connections:

16 Ethernet/IP device || 8 Modbus server

Protection Type:

short-circuit protection || short-circuit and overload protection with automatic reset || reverse polarity protection fast output

Ambient Air Temperature For Storage:

-25-70 °C

Discrete Input Current:

5 mA input || 10.7 mA fast input

Standards:

ANSI/ISA 12-12-01 || CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2:2007 || Marine specification (LR, ABS, DNV, GL) || UL 508

Reset Time:

10 ms automatic reset output || 12 s automatic reset fast output

Configurable Filtering Time:

1 µs fast input || 12 ms fast input || 0 ms input || 1 ms input || 4 ms input || 12 ms input

Power Consumption In W:

32.6-40.4 W with max number of I/O expansion module)

Electromagnetic Emission:

conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A30-230 MHz IEC 55011 || conducted emissions 79...63 dBμV/m QP p

Output Voltage Limits:

30 V DC

Response Time:

50 µs turn-on, I0...I13 input || 50 µs turn-off, I0...I13 input || <= 2 µs turn-on, I0...I7 fast input || <= 2 µs turn-off, I0...I7 fast input || <= 34 µs turn-on, Q0...Q9 output || <= 250 µs turn-off, Q0...Q9 output || <= 2 µs turn-on, Q0...Q

Circularity Profile:

ENVEOLI1307080EN

Storage Altitude:

0-3000 m

Product Certifications:

RCM || cULus || CE || UKCA || DNV-GL || ABS || LR

Width:

150 mm

Range Of Product:

Modicon M241

Surge Withstand:

1 kV power lines (DC) common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV relay output differential mode IEC 61000-4-5 || 1 kV input common mode IEC 61000-4-5 |

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Discrete Input Number:

14 , discrete input 8 fast input IEC 61131-2 Type 1

Execution Time For 1 Kinstruction:

0.3 ms event and periodic task || 0.7 ms other instruction

Maximum Output Frequency:

20 kHz fast output (PWM mode) || 100 kHz fast output (PLS mode) || 1 kHz output

Canopen Feature Profile:

DR 303-1 || DS 301 V4.02

Number Of Slave:

63 CANopen

Data Storage Equipment:

<= 16 GB SD card optional)

Mercury Free:

Yes

Application Structure:

8 event tasks || 4 cyclic master tasks || 3 cyclic master tasks + 1 freewheeling task || 8 external event tasks

Immunity To Microbreaks:

10 ms

Communication Service:

SNMP client/server || Modbus TCP slave device || Modbus TCP server || Modbus TCP client || IEC VAR ACCESS || FTP client/server || SQL client || DHCP client || Ethernet/IP adapter || send and receive email from the controller based on TCP/UDP library

Supply Voltage Limits:

20.4-28.8 V

Inrush Current:

50 A

Operating Altitude:

0...6561.68 ft (0...2000 m)

Communication Port Protocol:

non isolated serial link Modbus master/slave

Voltage State 1 Guaranteed:

>= 15 V input

Pollution Degree:

2

Maximum Tungsten Load:

<2.4 W

Realtime Clock:

with

Maximum Cable Distance Between Devices:

unshielded cable <50 m input || shielded cable <10 m fast input || unshielded cable <50 m output || shielded cable <3 m fast output

Positioning Functions:

PTO 4 100 kHz) || PTO 4 transistor output 1 kHz)

Input Impedance:

4.7 kOhm input || 2.81 kOhm fast input

Discrete I/O Number:

24

Environmental Disclosure:

ENVPEP1307080EN

Resistance To Fast Transients:

2 kV IEC 61000-4-4 power lines) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link) || 1 kV IEC 61000-4-4 input) || 1 kV IEC 61000-4-4 transistor output)

Control Signal Type:

A/B 100 kHz fast input (HSC mode) || pulse/direction 200 kHz fast input (HSC mode) || single phase 200 kHz fast input (HSC mode)

Relative Humidity:

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Voltage State 0 Guaranteed:

<= 5 V input

Port Ethernet:

10BASE-T/100BASE-TX - 1 copper cable

Supply:

serial 1)serial link supply 5 V, <200 mA

Discrete Output Number:

10 transistor 4 fast output

[Us] Rated Supply Voltage:

24 V DC

China Rohs Regulation:

X

Depth:

95 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Insulation:

between supply and internal logic 500 V AC || non-insulated between supply and ground || between input and internal logic 500 V AC || non-insulated between inputs || between fast input and internal logic 500 V AC || between output and internal logic

Resistance To Conducted Disturbances:

10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Rohs Exemption Information:

Yes

Counting Input Number:

4 fast input (HSC mode) 200 kHz || 14 standard input 1 kHz

Sustainable Offer Status:

Green Premium product

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Data Backed Up:

128 MB built-in flash memory backup of user programs

Clock Drift:

<= 60 s/month 25-25 °C

Ambient Air Temperature For Operation:

-10-50 °C vertical installation) || -10-55 °C horizontal installation)

Maximum Voltage Drop:

<1 V

Transmission Rate:

1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s 3-3 m USB || 10/100 Mbit/s Ethernet || 1000 kbit/s 20-20 m CANopen || 800 kbit/s 40-40 m CANopen || 500 kbit/s 100-10

Web Services:

web server

Accuracy:

+/- 0.1 % 0.02-0.1 kHz fast output || +/- 1 % 0.1-1 kHz fast output

Vibration Resistance:

3.5 mm 5-8.4 Hz symmetrical rail || 3 gn 8.4-150 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 3 gn 8.4-150 Hz panel mounting

Local Signalling:

for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for I/O error (I/O) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for bus fault

Discrete Output Voltage:

24 V DC transistor output

Maximum Current Per Output Common:

2 A Q0...Q3 fast output || 2 A Q4...Q7 output || 1 A Q8...Q9 output

Electrical Connection:

removable screw terminal block for inputs and outputs pitch 5.08 mm) || removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)

Pvc Free:

Yes

Net Weight:

0.53 kg

Discrete Output Type:

transistor

Battery Type:

BR2032 lithium non-rechargeable 4 year(s)

Ip Degree Of Protection:

IP20 with protective cover in place
