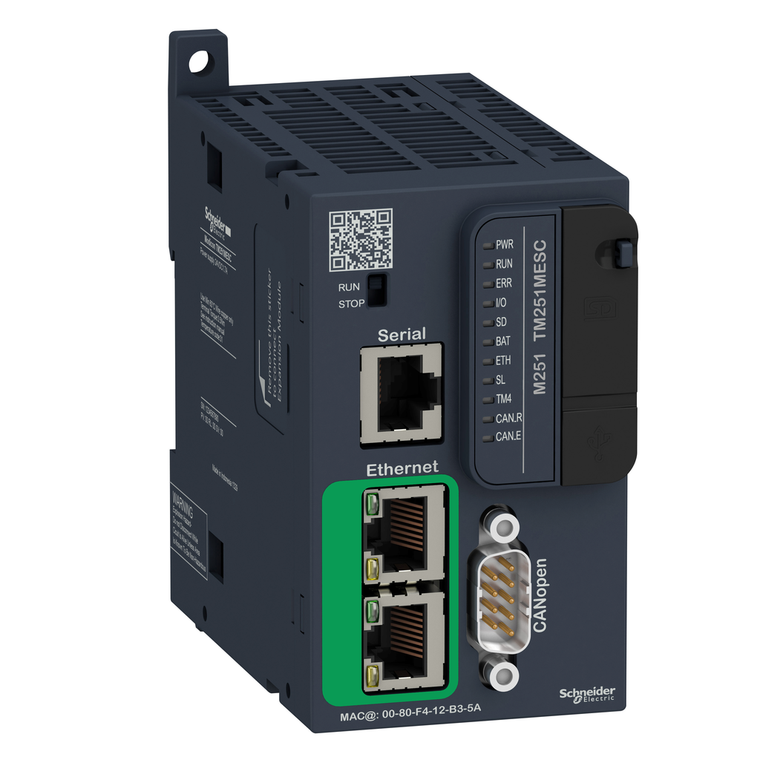

Schneider Electric TM251MESC Controller M251-Ethernet+Can

Schneider Electric TM251MESC Controller M251-Ethernet+Can

Schneider Electric
SKU:
TM251MESC
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$648.75
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon M251 range, an offer of logic controllers for modular and distributed architectures. This logic controller provides 7 local, 14 remote I/O expansion modules. It is a Modicon logic controller with a rated supply voltage of 24V DC, an inrush current of 50A and a power consumption of 32.6W to 40.4W. Boost the performance of machine with powerful data transfer via SD Card, embedded web and FTP server and more. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial with RJ45 connector and RS232/RS485 interface, dual-port Ethernet with RJ45 connector and CANopen J1939 with 9-way D-Sub (DE-09) connector. It is a Modicon M251 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 32GB. It is an IP20 rated product. Its dimensions are 54mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.22kg. The Modicon M251 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, CSA and CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M251 through intuitive machine programming with SoMachine, ready-to-use applications and function blocks. Increase flexibility, while saving space in your cabinet with the Modicon M251 logic controller for modular and distributed architectures.
Additional Information
Pvc Free:
Yes
Maximum Number Of Connections:
8 Modbus server || 8 Modbus client || 16 Ethernet/IP target || 4 FTP server || 10 web server || 8 SoMachine protocol
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Product Certifications:
cULus || CE || UKCA || DNV-GL || ABS || LR
Immunity To Microbreaks:
10 ms
Pollution Degree:
2
Backup Time:
2 years 25 °C
Standards:
ANSI/ISA 12-12-01 || CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2:2007 || Marine specification (LR, ABS, DNV, GL) || UL 508
Shock Resistance:
15 gn 11 ms
Marking:
CE
Vibration Resistance:
3.5 mm 5-8.4 Hz symmetrical rail || 3 gn 8.4-150 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 3 gn 8.4-150 Hz panel mounting
Realtime Clock:
with
Data Storage Equipment:
<= 16 GB SD card optional)
Inrush Current:
50 A
Ambient Air Temperature For Operation:
-10-35 °C vertical installation) || -10-55 °C horizontal installation)
Execution Time For 1 Kinstruction:
0.3 ms event and periodic task || 0.7 ms other instruction
Memory Capacity:
64 MB system memory RAM
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circularity Profile:
ENVEOLI1401009EN
Power Consumption In W:
32.6-40.4 W with max number of I/O expansion module)
Supply Voltage Limits:
20.4-28.8 V
Communication Port Protocol:
USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Height:
90 mm
Resistance To Conducted Disturbances:
10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Communication Service:
DHCP client || downloading || Ethernet/IP slave device || IEC VAR ACCESS || Modbus TCP client || Modbus TCP server || Modbus TCP slave device || monitoring || NGVL || programming || updating firmware || SMS notifications || FTP client/server || SNMP
Electrical Connection:
removable screw terminal block power supply pitch 5.08 mm)
Ambient Air Temperature For Storage:
-25-70 °C
[Us] Rated Supply Voltage:
24 V DC
Product Or Component Type:
logic controller
Number Of Slave:
63 CANopen
Net Weight:
0.22 kg
Application Structure:
3 cyclic master tasks + 1 freewheeling task || 8 event tasks || 4 cyclic master tasks || 8 external event tasks
Resistance To Electromagnetic Fields:
10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Maximum Number Of I/O Expansion Module:
7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
Clock Drift:
<= 60 s/month 25-25 °C
Storage Altitude:
0-3000 m
China Rohs Regulation:
X
Canopen Feature Profile:
DR 303-1 || DS 301 V4.02
Relative Humidity:
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Insulation:
non-insulated between supply and internal logic || between supply and ground 500 V AC
Local Signalling:
for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for I/O error (I/O) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for Ethernet port activity 1 LED (green) || for SL 1 LED (green
Port Ethernet:
Ethernet 10BASE-T/100BASE-TX - 2 copper cable
Integrated Connection Type:
USB port mini B USB 2.0 || non isolated serial link serial RJ45 RS232/RS485 || dual-port Ethernet RJ45 || CANopen J1939 SUB-D 9
Ip Degree Of Protection:
IP20 with protective cover in place
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Supply:
serial)serial link supply 5 V, <200 mA
Surge Withstand:
1 kV shielded cable common mode IEC 61000-4-5 || 1 kV power lines common mode IEC 61000-4-5 || 0.5 kV power lines differential mode IEC 61000-4-5
Battery Type:
BR2032 lithium non-rechargeable 4 year(s)
Electromagnetic Emission:
conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || conducted emissions 79...63 dBμV/
Resistance To Electrostatic Discharge:
8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Operating Altitude:
0...6561.68 ft (0...2000 m)
Sustainable Offer Status:
Green Premium product
Width:
54 mm
Data Backed Up:
128 MB built-in flash memory backup of user programs
Transmission Rate:
1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s 3-3 m USB
Web Services:
web server
Environmental Disclosure:
ENVPEP1401009EN
Range Of Product:
Modicon M251
Resistance To Fast Transients:
2 kV IEC 61000-4-4 power lines) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)
Depth:
95 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
