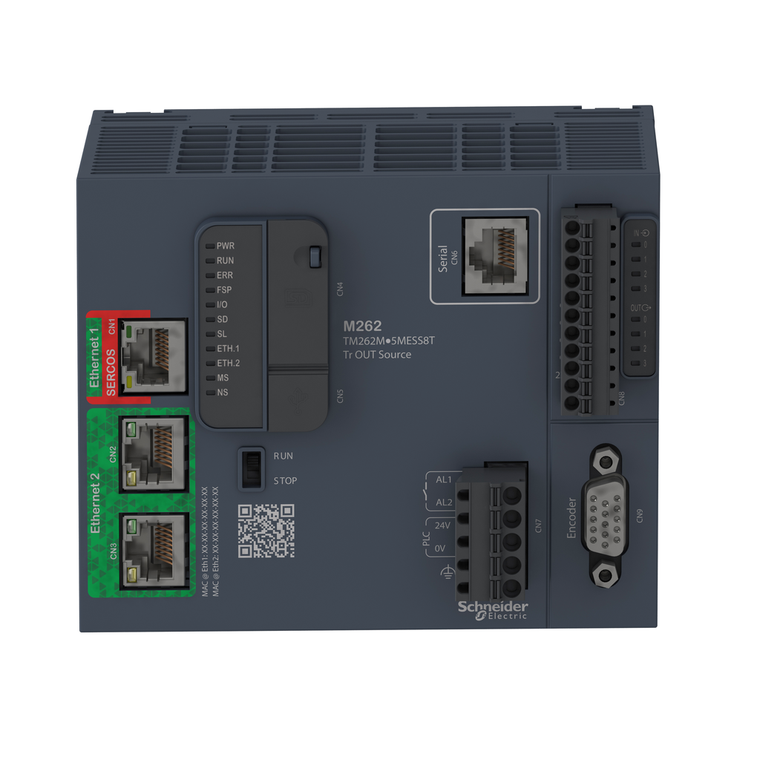

Schneider Electric TM262M35MESS8T Motion Ctrl M262 3Ns/Inst 24 Ax. Eth. S3

(No reviews yet) Write a Review

Write a Review

Schneider Electric TM262M35MESS8T Motion Ctrl M262 3Ns/Inst 24 Ax. Eth. S3

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM262M35MESS8T

UPC:

3606489604226

MPN:

Condition:

New

Communication Service:

MQTTs || OPC UA server (Encrypt) || OPC UA client (Encrypt) || HTTPs Methods (API) || web server || web visu || TLS 1.2 || TLS 1.3 || SNTP || NTP client/server || FTP client/server || FTPs server || SQL client (remote access) || DHCP client || DHCP s

Net Weight:

0.67 kg

Cycle Time:

0.5 ms

Electromagnetic Emission:

conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBµV/m30-230 kHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)

Data Storage Equipment:

<= 32 GB SDHC card optional)

Maximum Leakage Current:

10 µA output

Positioning Functions:

libraries axes coordinated || libraries axes synchronous || Sercos 3 motion bus

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Cable Distance Between Devices:

shielded cable <3 m fast input || shielded cable <3 m fast output || unshielded cable <50 m input || unshielded cable <50 m output || shielded cable <30 m RS485 link || shielded cable <15 m RS232

Voltage State 0 Guaranteed:

<= 5 V DC

Environmental Disclosure:

ENVPEP1904006EN

Depth:

90 mm

Standards:

UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 61010-1 || CSA C22.2 No 61010-2-201 || CSA C22.2 No 213 || ANSI/ISA 12-12-01 || IEC 61131-2

Storage Altitude:

0-3000 m

Response Time:

<= 1 µs turn-on, I0...I3 fast input || <= 1 µs turn-off, I0...I3 fast input || <= 1 µs turn-on, Q0...Q3 fast output || <= 1 µs turn-off, Q0...Q3 fast output

Width:

125 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sustainable Offer Status:

Green Premium product

Discrete Input Logic:

sink

Clock Drift:

<= 10 s/month 25-25 °C

Inrush Current:

40 A

Reset Time:

200 ms automatic reset fast output

Maximum Tungsten Load:

<1.5 W

Backup Time:

1000 h 25 °C

Discrete Output Logic:

source

Resistance To Fast Transients:

2 kV IEC 61000-4-4 power lines) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link) || 1 kV IEC 61000-4-4 input) || 1 kV IEC 61000-4-4 transistor output)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Range Of Product:

Logic/motion controller - Modicon M262

Input Impedance:

2.81 kOhm input

Encoder Type:

incremental encoder

Surge Withstand:

1 kV power lines (DC) common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV relay output differential mode IEC 61000-4-5 || 1 kV input common mode IEC 61000-4-5 || 1 kV transistor output common mode IEC 61000-4-5

Accuracy:

+/- 0.1 % 0.02-0.1 kHz fast output || +/- 1 % 0.1-1 kHz fast output

Discrete I/O Number:

8

Maximum Current Per Output Common:

0.5 A Q0...Q3 fast output

Height:

100 mm

Resistance To Electrostatic Discharge:

4 kV on contact IEC 61000-4-2 || 8 kV on air IEC 61000-4-2

Data Backed Up:

1 GB built-in flash memory backup of user programs

Ambient Air Temperature For Storage:

-40-85 °C

Shock Resistance:

15 gn 11 ms

Mercury Free:

Yes

Protection Type:

short-circuit and overload protection with automatic reset || reverse polarity protection || short-circuit protection

Resistance To Electromagnetic Fields:

10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3

Transmission Rate:

115 kbit/s 15-15 m RS485 || 115 kbit/s 3-3 m RS232 || 480 Mbit/s 3-3 m USB || 10/100 Mbit/s Ethernet1 || 10/100/1000 Mbit/s Ethernet2

Ip Degree Of Protection:

IP20

Overvoltage Protection:

with

Integrated Connection Type:

Ethernet/Sercos 1 RJ45 10/100BASE-T || Ethernet 2 2 RJ45 100/1000BASE-T || serial link RJ45 RS232/RS485 || 1 encoder female SUB-D 15 RS422/SSI || Smart Communication Bus || TM3 IO bus || USB type mini B

China Rohs Regulation:

X

Relative Humidity:

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Discrete Input Voltage:

24 V

Operating Altitude:

0...6561.68 ft (0...2000 m)

Supply Voltage Limits:

20.4-28.8 V DC

Output Voltage Limits:

30 V DC

Execution Time For 1 Kinstruction:

0.003 ms

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Realtime Clock:

with

Voltage State 1 Guaranteed:

>= 15 V DC

Electrical Connection:

removable spring terminal block for inputs and outputs || removable spring terminal block for connecting the 24 V DC power supply

Application Structure:

8 event tasks || 4 cyclic master tasks || 3 cyclic master tasks + 1 freewheeling task || 8 external event tasks

Ambient Air Temperature For Operation:

-20-60 °C horizontal installation) || -20-50 °C vertical installation) || -20-45 °C flat mounting)

Product Certifications:

CE || cULus || cULus HazLoc Class I Division 2 CSA 22-2 No 213 || RCM || EAC || Achilles || KC

Discrete Input Current:

7.5 mA fast input

Mounting Support:

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Memory Capacity:

32 MB program RAM || 32 MB OS/website RAM || 192 MB system memory RAM

Discrete Output Type:

transistor

Discrete Output Current:

0.5 A fast output Q0...Q3)

[Us] Rated Supply Voltage:

24 V DC - 15...20 %

Insulation:

between fast input and internal logic 550 V AC || non-insulated between inputs || between output and internal logic 550 V AC || non-insulated between outputs || between input and output 550 V AC || between supply and internal logic 550 V AC || non-in

Product Or Component Type:

motion controller

Discrete Output Voltage:

24 V DC

Maximum Output Frequency:

300 kHz

Local Signalling:

for PWR 1 LED (green/red) || for RUN 1 LED (green/red) || for ERROR (fault) 1 LED (green/red) || for stop forced 1 LED (green/red) || for I/O error (I/O) 1 LED (green/red) || for SD card activity 1 LED (green/orange) || for SL activity 1 LED (green/o

Pvc Free:

Yes

Configurable Filtering Time:

0.001 ms fast input || 0.002 ms fast input || 0.005 ms fast input || 0.01 ms fast input || 0.05 ms fast input || 0.1 ms fast input || 0.5 ms fast input || 1 ms fast input || 4 ms fast input || 12 ms fast input

Upstream Connectivity:

IIoT-ready machine to cloud || connected machine to plant

Maximum Number Of Connected Devices:

EtherNet/IP <64 || Modbus TCP <64 || Modbus TCP/EtherNet/IP <128

Resistance To Conducted Disturbances:

10 V 0.15...80 MHz IEC 61000-4-4 || 3 V 0.1...80 MHz || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)

Vibration Resistance:

3.5 mm 2-8.4 Hz symmetrical rail || 1 gn 8.4-200 Hz symmetrical rail || 3.5 mm 2-8.4 Hz panel mounting || 1 gn 8.4-200 Hz panel mounting

Immunity To Microbreaks:

0.01 ms

Product Compatibility:

external encoder 5/24 V DC no encoder power supply

Communication Port Protocol:

EtherNet/IP adapter || EtherNet/IP scanner || Modbus TCP client/server || Modbus TCP IO scanner || Modbus TCP NVL || Ethernet RSTP || Modbus SL client/server || Modbus SL IO scanner || Modbus SL modem management || Machine Expert || ASCII manager ||

Discrete Input Number:

4 , discrete input fast input IEC 61131-2 Type 1

Circularity Profile:

ENVEOLI1904006EN

Discrete Input Voltage Type:

DC

Pollution Degree:

2

Maximum Number Of I/O Expansion Module:

7 TM3 IO module (remote I/O-Architecture) || 7 TM3 IO module (local I/O-Architecture) || 64 TM3, TM5 or TM7 IO island (distributed I/O-Architecture)

Power Consumption In W:

82 W

Discrete Output Number:

4 transistor fast output

Rohs Exemption Information:

Yes
