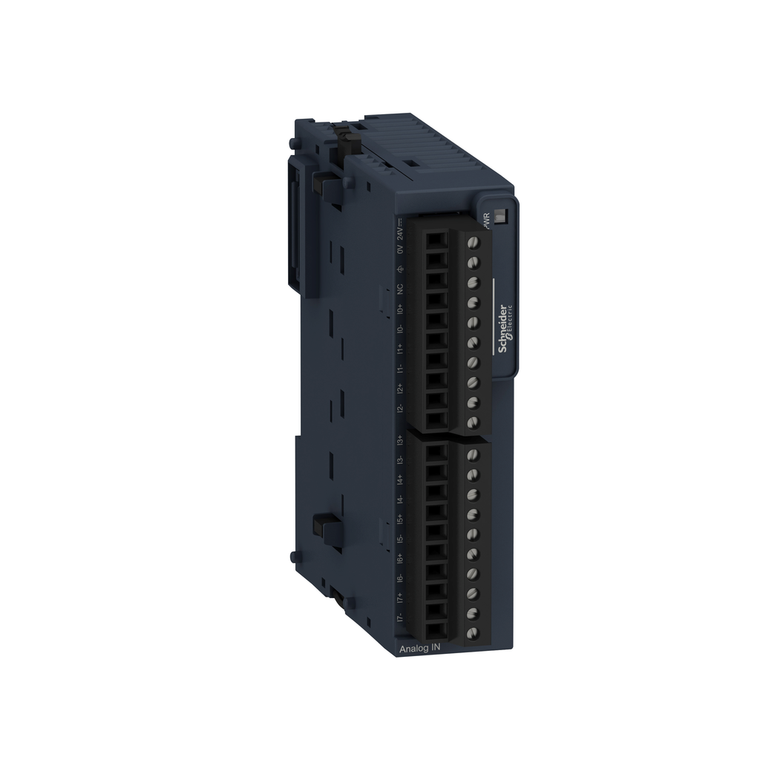

Schneider Electric TM3AI8 Module Tm3-8 Analog Inputs

Schneider Electric TM3AI8 Module Tm3-8 Analog Inputs

Schneider Electric
SKU:
TM3AI8
|
UPC:
3.60648E+12
$328.75
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 8 inputs with 11bit + sign and 12bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 35mA at 5V DC via bus connector no load, 45mA at 5V DC via bus connector full load, 30mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Additional Information
Product Certifications:
CE || UKCA || RCM || EAC || cULus || cULus HazLoc
Local Signalling:
for PWR 1 LED (green)
Ambient Air Temperature For Storage:
-25-70 °C
Storage Altitude:
0-3000 m
Permissible Continuous Overload:
13 V voltage || 40 mA current
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Sampling Duration:
1 ms
Pvc Free:
Yes
Resistance To Magnetic Fields:
30 A/m IEC 61000-4-8
Pollution Degree:
2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electrical Connection:
10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs and supply || 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs
Toxic Heavy Metal Free:
Yes
Range Compatibility:
Modicon M221 || Modicon M241 || Modicon M251 || Modicon M262
Resistance To Electromagnetic Fields:
10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
China Rohs Regulation:
X
Current Consumption:
40 mA 5 V DC via bus connector full load || 35 mA 5 V DC via bus connector no load || 30 mA 24 V DC via external supply no load || 40 mA 24 V DC via external supply full load
Input Impedance:
<= 50 Ohm current || >= 1 MOhm voltage
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Insulation:
between input and supply 1500 V AC || between input and internal logic 500 V AC
Immunity To Microbreaks:
10 ms
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
analog input module
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Type Of Cable:
twisted shielded pairs cable <30 m input
Analogue Input Number:
8
Depth:
70 mm
Ip Degree Of Protection:
IP20
Ambient Air Temperature For Operation:
-10-55 °C horizontal installation || -10-35 °C vertical installation
Analogue Input Type:
current 4...20 mA || current 0...20 mA || voltage 0...10 V || voltage - 10...10 V
Circularity Profile:
ENVEOLI1402009EN
Lsb Value:
2.44 mV 0...10 V voltage || 4.88 mV - 10...10 V voltage || 4.88 µA 0...20 mA current || 3.91 µA 4...20 mA current
[Us] Rated Supply Voltage:
24 V DC
Resistance To Fast Transients:
1 kV IEC 61000-4-4 I/O)
Surge Withstand:
1 kV power supply common mode IEC 61000-4-5 || 0.5 kV power supply differential mode IEC 61000-4-5 || 1 kV input common mode IEC 61000-4-5
Conversion Time:
1 ms + 1 ms per channel + 1 controller cycle time
Height:
90 mm
Standards:
IEC 61131-2
Resistance To Electrostatic Discharge:
8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Shock Resistance:
15 gn 11 ms
Width:
23.6 mm
Environmental Disclosure:
ENVPEP1402009EN
Supply Voltage Limits:
20.4-28.8 V
Operating Altitude:
0...6561.68 ft (0...2000 m)
Non-Linearity:
+/- 0.2 %FS
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Marking:
CE
Vibration Resistance:
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail
Sustainable Offer Status:
Green Premium product
Analogue Input Resolution:
12 bits || 11 bits + sign
Temperature Drift:
+/- 0.01 %FS/°C
Electromagnetic Emission:
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Cross Talk:
<= 1 LSB
Net Weight:
0.11 kg
Absolute Accuracy Error:
+/- 1 % of full scale || +/- 0.2 % of full scale at 25 °C
Resistance To Conducted Disturbances:
10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Repeat Accuracy:
+/-0.5 %FS
Relative Humidity:
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Range Of Product:
Modicon TM3
Catalog:
View
Datasheet:
View
