Schneider Electric TM3DI16K Module Tm3-16 Inputs He10
Schneider Electric
$163.75
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

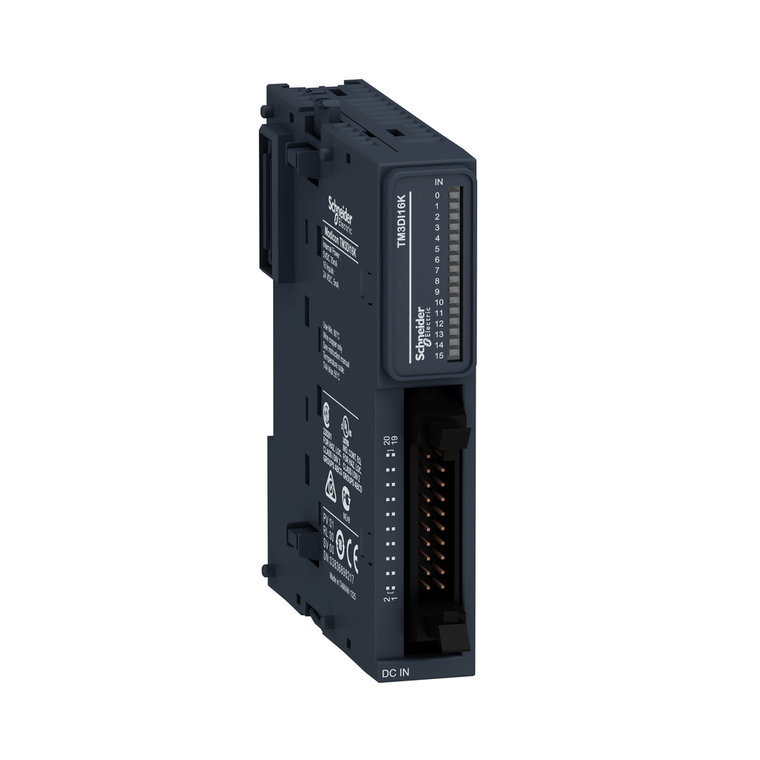

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete input module provides 16 inputs with sink or source (positive/negative) logic. It is an input module with an input voltage of 24V DC and a current consumption of 5mA/35mA at 5V DC via bus connector. It can be used to create configurations with up to 16 inputs There is an insulation between input and internal logic at 500V AC and non-insulation between inputs. It is furnished with HE-10 connector inputs for electrical connection. It is an IP20 rated product. Its dimensions are 21.4mm (Width) x 81.3mm (Depth) x 90mm (Height). It weighs 0.65kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
- Storage Altitude:
- 0-3000 m
- China Rohs Regulation:
- X
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pvc Free:
- Yes
- Discrete Input Number:
- 16 input IEC 61131-2 type 3
- Product Or Component Type:
- discrete input module
- Input Impedance:
- 4.4 kOhm
- Marking:
- CE
- Standards:
- IEC 61131-2
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Height:
- 90 mm
- Relative Humidity:
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Circularity Profile:
- ENVEOLI1402009EN
- Resistance To Fast Transients:
- 1 kV I/OIEC 61000-4-4
- Product Certifications:
- cULus || CE || UKCA || RCM || EAC || cULus HazLoc
- Reach Free Of Svhc:
- Yes
- Maximum Cable Distance Between Devices:
- unshielded cable <50 m regular input
- Insulation:
- between input and internal logic 500 V AC || non-insulated between inputs
- Resistance To Conducted Disturbances:
- 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Ip Degree Of Protection:
- IP20 with protective cover in place
- Resistance To Electromagnetic Fields:
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Voltage State 1 Guaranteed:
- 15...28.8 V input
- Toxic Heavy Metal Free:
- Yes
- Discrete Input Logic:
- sink or source (positive/negative)
- Resistance To Electrostatic Discharge:
- 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
- Response Time:
- 4 ms (turn-on) || 4 ms (turn-off)
- Range Of Product:
- Modicon TM3
- Rohs Exemption Information:
- Yes
- Range Compatibility:
- Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
- Surge Withstand:
- 1 kV I/O common mode IEC 61000-4-5 DC
- Local Signalling:
- for input status 1 LED per channel (green)
- Current State 0 Guaranteed:
- <= 1 mA input)
- Sustainable Offer Status:
- Green Premium product
- Discrete Input Current:
- 5 mA input
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shock Resistance:
- 15 gn 11 ms
- Mercury Free:
- Yes
- Discrete I/O Number:
- 16
- Depth:
- 81.3 mm
- Pollution Degree:
- 2
- Discrete Input Voltage:
- 24 V
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Net Weight:
- 0.65 kg
- Discrete Input Voltage Type:
- DC
- Resistance To Magnetic Fields:
- 30 A/m 50/60 Hz IEC 61000-4-8
- Vibration Resistance:
- 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
- Electromagnetic Emission:
- radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
- Voltage State 0 Guaranteed:
- 0...5 V input
- Width:
- 21.4 mm
- Electrical Connection:
- HE-10 connector for inputs
- Current State 1 Guaranteed:
- >= 2.5 mA input)
- Environmental Disclosure:
- ENVPEP1402009EN
- Current Consumption:
- 5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state on) || 0 mA 24 V DC via bus connector at state off) || 35 mA 5 V DC via bus connector at state on)
- Ambient Air Temperature For Storage:
- -25-70 °C
- Ambient Air Temperature For Operation:
- -10-35 °C vertical installation || -10-55 °C horizontal installation
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mounting Support:
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
