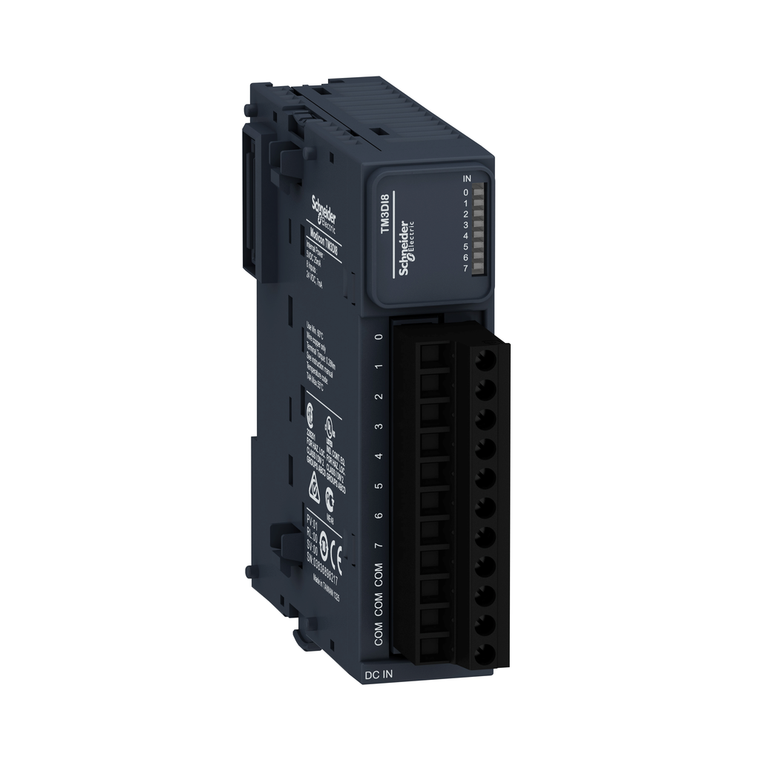

Schneider Electric TM3DI8 Module Tm3-8 Inputs

Schneider Electric TM3DI8 Module Tm3-8 Inputs

Schneider Electric
SKU:
TM3DI8
|
UPC:
3606480611360
Availability:
Contact us to confirm availability and lead times.
$150.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete input module provides 8 inputs with sink or source (positive/negative) logic. It is an input module with an input voltage of 24V DC and a current consumption of 24mA/5mA at 5V DC via bus connector. It can be used to create configurations with up to 8 inputs There is an insulation between input and internal logic at 500V AC and non-insulation between inputs. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for inputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.110kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Additional Information
Pvc Free:
Yes
Circularity Profile:
ENVEOLI1402009EN
Toxic Heavy Metal Free:
Yes
Environmental Disclosure:
ENVPEP1402009EN
Marking:
CE
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Resistance To Magnetic Fields:
30 A/m 50/60 Hz IEC 61000-4-8
Input Impedance:
3.4 kOhm
Discrete Input Voltage:
24 V
Product Or Component Type:
discrete input module
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Discrete Input Logic:
sink or source (positive/negative)
Resistance To Conducted Disturbances:
10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Maximum Cable Distance Between Devices:
unshielded cable <30 m regular input
Mercury Free:
Yes
Shock Resistance:
15 gn 11 ms
Storage Altitude:
0-3000 m
Ambient Air Temperature For Storage:
-25-70 °C
Electromagnetic Emission:
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Range Compatibility:
Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
Ambient Air Temperature For Operation:
-10-35 °C vertical installation || -10-55 °C horizontal installation
Width:
27.4 mm
Current State 0 Guaranteed:
<= 1 mA input)
Electrical Connection:
11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for inputs
Resistance To Electromagnetic Fields:
10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Product Certifications:
CE || cULus || UKCA || RCM || EAC || cULus HazLoc
Resistance To Electrostatic Discharge:
8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Voltage State 1 Guaranteed:
15...28.8 V input
Discrete Input Voltage Type:
DC
Relative Humidity:
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
China Rohs Regulation:
X
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Range Of Product:
Modicon TM3
Vibration Resistance:
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Local Signalling:
for input status 1 LED per channel (green)
Net Weight:
0.085 kg
Discrete I/O Number:
8
Depth:
84.6 mm
Voltage State 0 Guaranteed:
0...5 V input
Ip Degree Of Protection:
IP20 with protective cover in place
Height:
90 mm
Resistance To Fast Transients:
1 kV I/OIEC 61000-4-4
Pollution Degree:
2
Insulation:
between input and internal logic 500 V AC || non-insulated between inputs
Current State 1 Guaranteed:
>= 2.5 mA input)
Reach Free Of Svhc:
Yes
Operating Altitude:
0...6561.68 ft (0...2000 m)
Response Time:
4 ms (turn-on) || 4 ms (turn-off)
Discrete Input Current:
7 mA input
Sustainable Offer Status:
Green Premium product
Discrete Input Number:
8 input IEC 61131-2 Type 1
Standards:
IEC 61131-2
Current Consumption:
5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state on) || 0 mA 24 V DC via bus connector at state off) || 24 mA 5 V DC via bus connector at state on)
Rohs Exemption Information:
Yes
Surge Withstand:
1 kV I/O common mode IEC 61000-4-5 DC
Catalog:
View
