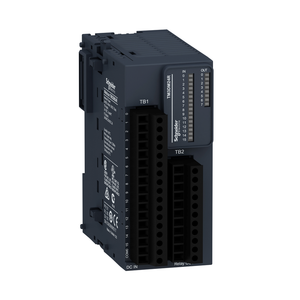

Schneider Electric TM3DM8R Module Tm3-8 Io Relays

(No reviews yet) Write a Review

Write a Review

Schneider Electric TM3DM8R Module Tm3-8 Io Relays

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM3DM8R

UPC:

3.60648E+12

MPN:

Condition:

New

China Rohs Regulation:

X

Local Signalling:

for I/O state 1 LED per channel (green)

Electromagnetic Emission:

radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011

Discrete Input Logic:

sink or source (positive/negative)

Ip Degree Of Protection:

IP20 with protective cover in place

Range Compatibility:

Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262

Resistance To Electromagnetic Fields:

10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3

Operating Altitude:

0...6561.68 ft (0...2000 m)

Discrete Input Voltage Type:

DC

Resistance To Electrostatic Discharge:

8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2

Standards:

IEC 61131-2

Product Certifications:

cULus || CE || UKCA || RCM || EAC || cULus HazLoc

Voltage State 1 Guaranteed:

15...28.8 V input

Discrete Output Voltage:

24 V DC relay output || 240 V AC relay output

Range Of Product:

Modicon TM3

Input Impedance:

3.4 kOhm

Net Weight:

0.95 kg

Marking:

CE

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Resistance To Conducted Disturbances:

10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Voltage State 0 Guaranteed:

0...5 V input

Circularity Profile:

ENVEOLI1402009EN

Current State 0 Guaranteed:

<= 1 mA input)

Discrete I/O Number:

8

Maximum Cable Distance Between Devices:

unshielded cable <30 m regular input

Discrete Input Current:

7 mA input

Storage Altitude:

0-3000 m

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Toxic Heavy Metal Free:

Yes

Pollution Degree:

2

Current Consumption:

5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state on) || 0 mA 24 V DC via bus connector at state off) || 25 mA 5 V DC via bus connector at state on)

Mercury Free:

Yes

Pvc Free:

Yes

Electrical Connection:

11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for inputs and outputs

Maximum Current Per Output Common:

0.291666666666667

Discrete Input Voltage:

24 V

Ambient Air Temperature For Storage:

-25-70 °C

Resistance To Magnetic Fields:

30 A/m 50/60 Hz IEC 61000-4-8

Resistance To Fast Transients:

1 kV I/OIEC 61000-4-4 || 2 kV relay outputIEC 61000-4-4

Surge Withstand:

2 kV output common mode IEC 61000-4-5 || 1 kV input common mode IEC 61000-4-5

Response Time:

4 ms (turn-on) || 4 ms (turn-off)

Shock Resistance:

15 gn 11 ms

Discrete Input Number:

4 input IEC 61131-2 Type 1

Sustainable Offer Status:

Green Premium product

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environmental Disclosure:

ENVPEP1402009EN

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ambient Air Temperature For Operation:

-10-35 °C vertical installation || -10-55 °C horizontal installation

Minimum Load:

10 mA 5 V DC relay output

Rohs Exemption Information:

Yes

Width:

27.4 mm

Depth:

84.6 mm

Vibration Resistance:

3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel

Discrete Output Type:

relay normally open

Insulation:

between input and internal logic 500 V AC || non-insulated between inputs || between input groups and output groups 1500 V AC || between open contact 750 V AC || between output and internal logic 500 V AC || non-insulated between outputs

Discrete Output Number:

4

Product Or Component Type:

discrete I/O module

Height:

90 mm

Mechanical Durability:

20000000 cycles

Current State 1 Guaranteed:

>= 2.5 mA input)

Discrete Output Current:

2000 mA relay output

Discrete Output Logic:

positive or negative

Mounting Support:

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Relative Humidity:

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Reach Free Of Svhc:

Yes
