Schneider Electric TM3DQ16R Module Tm3-16 Out Relays
Schneider Electric
$218.75
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

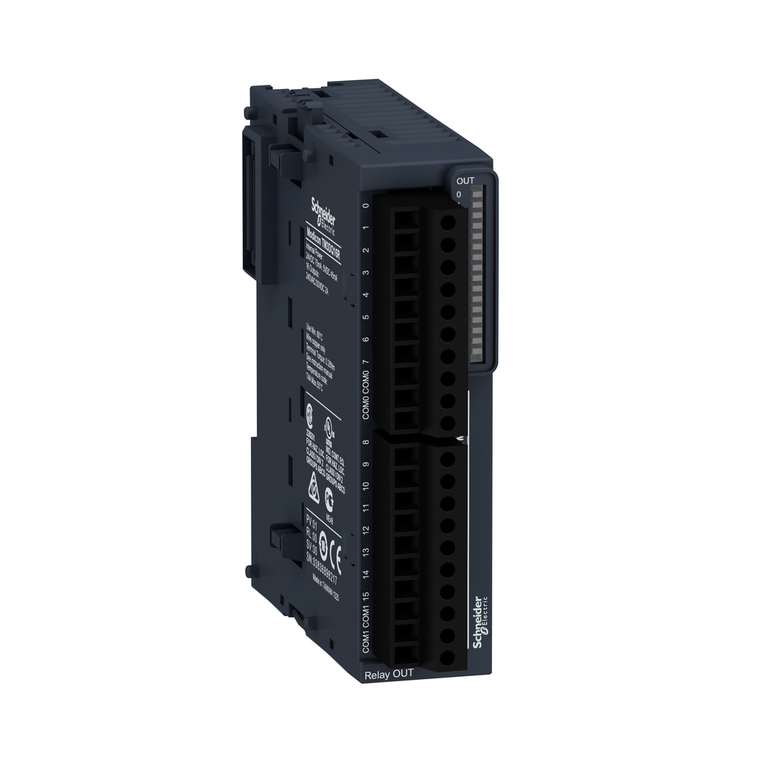

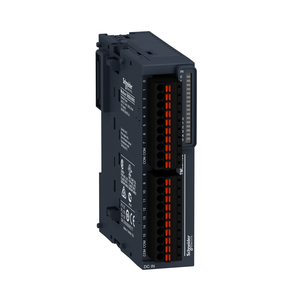

Schneider Electric TM3DQ16R Module Tm3-16 Out Relays
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This digital output module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers It consists in 16 N/O relay outputs 2 A. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. This digital I/O module complement the embedded I/O on Modicon M221, M221 Book, M241 and M251 logic controllers. There is an insulation between output and internal logic at 2300V AC, outputs at 750V AC, output groups at 1500V AC. It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for inputs and outputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.14kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
- Pollution Degree:
- 2
- Shock Resistance:
- 15 gn 11 ms
- Ambient Air Temperature For Storage:
- -25-70 °C
- Standards:
- IEC 61131-2
- Resistance To Electromagnetic Fields:
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Resistance To Conducted Disturbances:
- 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Range Compatibility:
- Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
- Minimum Load:
- 10 mA 5 V DC relay output
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Sustainable Offer Status:
- Green Premium product
- Discrete I/O Number:
- 16
- Resistance To Electrostatic Discharge:
- 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
- Marking:
- CE
- Insulation:
- between output and internal logic 2300 V AC || between outputs 750 V AC || between output groups 1500 V AC
- Response Time:
- 10 ms (turn-on) || 5 ms (turn-off)
- Pvc Free:
- Yes
- Mercury Free:
- Yes
- Discrete Output Current:
- 2000 mA relay output
- Surge Withstand:
- 1 kV I/O common mode IEC 61000-4-5 DC
- Product Or Component Type:
- discrete output module
- Height:
- 90 mm
- Rohs Exemption Information:
- Yes
- Mechanical Durability:
- 20000000 cycles
- China Rohs Regulation:
- X
- Electrical Connection:
- 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for outputs
- Ambient Air Temperature For Operation:
- -10-35 °C vertical installation || -10-55 °C horizontal installation
- Storage Altitude:
- 0-3000 m
- Toxic Heavy Metal Free:
- Yes
- Ip Degree Of Protection:
- IP20 with protective cover in place
- Relative Humidity:
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Range Of Product:
- Modicon TM3
- Mounting Support:
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Local Signalling:
- for output status 1 LED per channel (green)
- Discrete Output Logic:
- positive or negative
- Environmental Disclosure:
- ENVPEP1402009EN
- Maximum Cable Distance Between Devices:
- unshielded cable <30 m relay output
- Product Certifications:
- cULus || CE || UKCA || RCM || EAC || cULus HazLoc
- Resistance To Fast Transients:
- 2 kV relay outputIEC 61000-4-4
- Resistance To Magnetic Fields:
- 30 A/m 50/60 Hz IEC 61000-4-8
- Discrete Output Voltage:
- 240 V AC relay output || 30 V DC relay output
- Current Consumption:
- 0 mA 24 V DC via bus connector at state off) || 75 mA 24 V DC via bus connector at state on)
- Width:
- 27.4 mm
- Circularity Profile:
- ENVEOLI1402009EN
- Reach Free Of Svhc:
- Yes
- Vibration Resistance:
- 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Discrete Output Type:
- relay normally open
- Net Weight:
- 0.145 kg
- Electromagnetic Emission:
- radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
- Depth:
- 84.6 mm
- Discrete Output Number:
- 16
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
