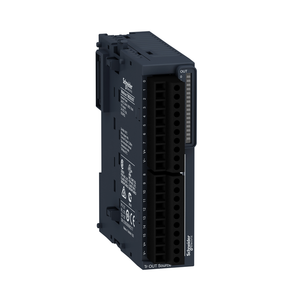

Schneider Electric TM3DQ16TG Module Tm3-16 Out Tr.Pnp Spring
Schneider Electric
$205.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 16 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24V DC and a current consumption of 20mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with pitch 3.81mm adjustment for outputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.095kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
- Discrete Output Type:
- transistor
- Product Or Component Type:
- discrete output module
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Discrete Output Number:
- 16
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Electromagnetic Emission:
- radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
- Resistance To Electrostatic Discharge:
- 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
- Maximum Tungsten Load:
- <3 W transistor output
- Ip Degree Of Protection:
- IP20 with protective cover in place
- Electrical Connection:
- 10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for outputs
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Pollution Degree:
- 2
- Surge Withstand:
- 1 kV I/O common mode IEC 61000-4-5 DC
- Height:
- 90 mm
- Pvc Free:
- Yes
- Rohs Exemption Information:
- Yes
- Discrete Output Logic:
- positive logic (source)
- China Rohs Regulation:
- X
- Ambient Air Temperature For Storage:
- -25-70 °C
- Ambient Air Temperature For Operation:
- -10-35 °C vertical installation || -10-55 °C horizontal installation
- Relative Humidity:
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Environmental Disclosure:
- ENVPEP1402009EN
- Range Compatibility:
- Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
- Maximum Voltage Drop:
- <0.4 V
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Standards:
- IEC 61131-2
- Maximum Cable Distance Between Devices:
- unshielded cable <30 m transistor output
- Resistance To Conducted Disturbances:
- 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Local Signalling:
- for output status 1 LED per channel (green)
- Discrete I/O Number:
- 16
- Current Consumption:
- 5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state off) || 15 mA 5 V DC via bus connector at state on) || 20 mA 24 V DC via bus connector at state on)
- Resistance To Magnetic Fields:
- 30 A/m 50/60 Hz IEC 61000-4-8
- Mounting Support:
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Storage Altitude:
- 0-3000 m
- Discrete Output Voltage:
- 24 V DC transistor output
- Circularity Profile:
- ENVEOLI1402009EN
- Resistance To Electromagnetic Fields:
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Sustainable Offer Status:
- Green Premium product
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Depth:
- 84.6 mm
- Response Time:
- 450 µs (turn-on) || 450 µs (turn-off)
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Discrete Output Current:
- 500 mA transistor output
- Range Of Product:
- Modicon TM3
- Maximum Leakage Current:
- 0.1 mA transistor output
- Marking:
- CE
- Product Certifications:
- cULus || CE || UKCA || RCM || EAC || cULus HazLoc
- Net Weight:
- 0.11 kg
- Insulation:
- between output and internal logic 500 V AC || non-insulated between outputs
- Width:
- 27.4 mm
- Shock Resistance:
- 15 gn 11 ms
- Resistance To Fast Transients:
- 1 kV I/OIEC 61000-4-4
- Vibration Resistance:
- 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
