Schneider Electric TM3DQ16UK Module Tm3-16 Out Tr.Npn He10

(No reviews yet) Write a Review

Write a Review

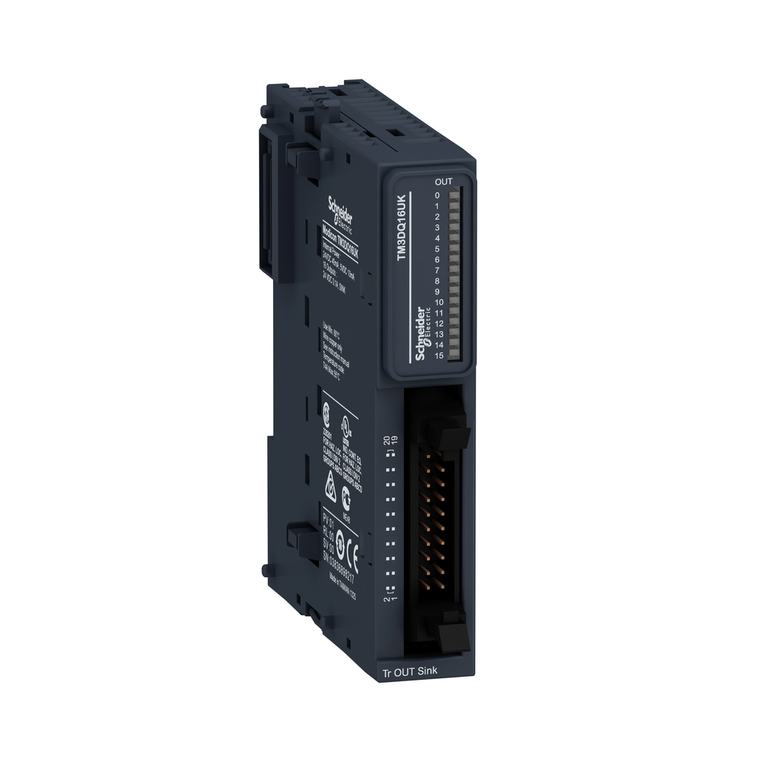

Schneider Electric TM3DQ16UK Module Tm3-16 Out Tr.Npn He10

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM3DQ16UK

UPC:

3606480611605

MPN:

Condition:

New

Maximum Cable Distance Between Devices:

unshielded cable <5 m transistor output

Response Time:

450 µs (turn-on) || 450 µs (turn-off)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Discrete Output Logic:

negative logic (sink)

Ambient Air Temperature For Operation:

-10-35 °C vertical installation || -10-55 °C horizontal installation

Maximum Voltage Drop:

<0.4 V

Resistance To Fast Transients:

1 kV I/OIEC 61000-4-4

Ip Degree Of Protection:

IP20 with protective cover in place

Rohs Exemption Information:

Yes

Operating Altitude:

0...6561.68 ft (0...2000 m)

Resistance To Electromagnetic Fields:

10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3

Storage Altitude:

0-3000 m

Electromagnetic Emission:

radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011

Local Signalling:

for output status 1 LED per channel (green)

Pvc Free:

Yes

Ambient Air Temperature For Storage:

-25-70 °C

Height:

90 mm

Mercury Free:

Yes

Surge Withstand:

1 kV I/O common mode IEC 61000-4-5 DC

Resistance To Magnetic Fields:

30 A/m 50/60 Hz IEC 61000-4-8

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Insulation:

between output and internal logic 500 V AC || non-insulated between outputs

Discrete Output Current:

100 mA transistor output

Depth:

81.3 mm

Resistance To Electrostatic Discharge:

8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Certifications:

cULus || CE || UKCA || RCM || EAC || cULus HazLoc

Range Compatibility:

Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262

Circularity Profile:

ENVEOLI1402009EN

Toxic Heavy Metal Free:

Yes

Discrete Output Voltage:

24 V DC transistor output

Marking:

CE

Discrete I/O Number:

16

Resistance To Conducted Disturbances:

10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Reach Free Of Svhc:

Yes

Electrical Connection:

HE-10 connector for outputs

Shock Resistance:

15 gn 11 ms

Relative Humidity:

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Discrete Output Type:

transistor

Range Of Product:

Modicon TM3

China Rohs Regulation:

X

Standards:

IEC 61131-2

Net Weight:

0.111 kg

Discrete Output Number:

16

Mounting Support:

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Product Or Component Type:

discrete output module

Pollution Degree:

2

Current Consumption:

5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state off) || 15 mA 5 V DC via bus connector at state on) || 20 mA 24 V DC via bus connector at state on)

Vibration Resistance:

3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel

Maximum Leakage Current:

0.1 mA transistor output

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Width:

21.4 mm

Environmental Disclosure:

ENVPEP1402009EN

Catalog:

View

Datasheet:

View
