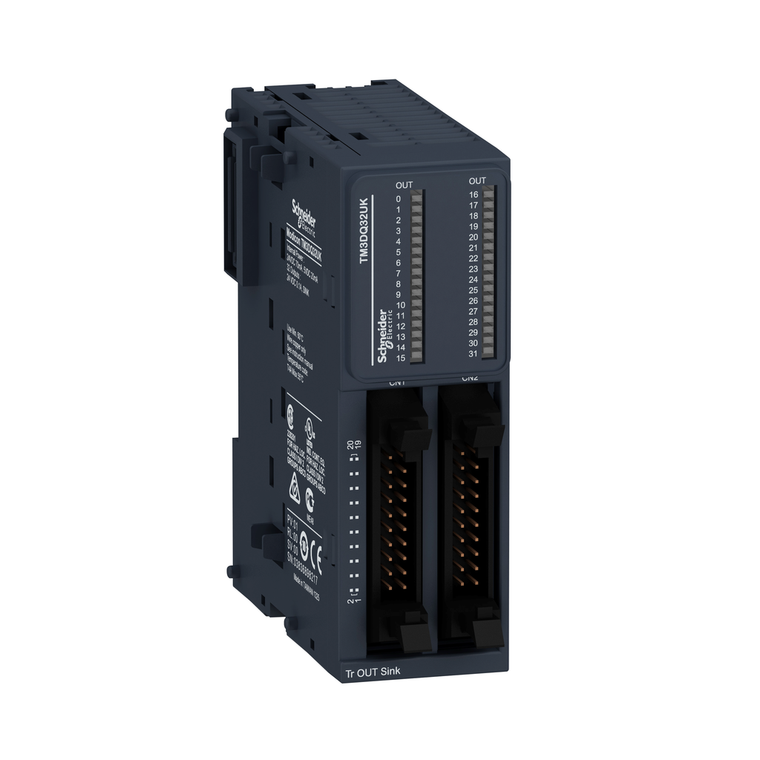

Schneider Electric TM3DQ32UK Module Tm3-32 Out Tr.Npn He10

Schneider Electric TM3DQ32UK Module Tm3-32 Out Tr.Npn He10

Schneider Electric
SKU:
TM3DQ32UK
|
UPC:
3.60648E+12
$273.75
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 32 transistor outputs with sink (negative)logic. It is an output module with an output voltage of 24V DC and a current consumption of 40mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic at 500V AC, non-insulated between outputs. It is furnished with HE-10 connector outputs for electrical connection. It is an IP20 rated product. Its dimensions are 33.5mm (Width) x 81.3mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Additional Information
Maximum Voltage Drop:
<0.4 V
Environmental Disclosure:
ENVPEP1402009EN
Range Of Product:
Modicon TM3
Range Compatibility:
Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
Resistance To Magnetic Fields:
30 A/m 50/60 Hz IEC 61000-4-8
Rohs Exemption Information:
Yes
Vibration Resistance:
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
Discrete Output Voltage:
24 V DC transistor output
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Discrete I/O Number:
32
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of Svhc:
Yes
Product Certifications:
cULus || CE || UKCA || RCM || EAC || cULus HazLoc
Height:
90 mm
Discrete Output Number:
32
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Surge Withstand:
1 kV I/O common mode IEC 61000-4-5 DC
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Standards:
IEC 61131-2
Discrete Output Type:
transistor
Storage Altitude:
0-3000 m
Response Time:
450 µs (turn-on) || 450 µs (turn-off)
China Rohs Regulation:
X
Circularity Profile:
ENVEOLI1402009EN
Pollution Degree:
2
Ambient Air Temperature For Operation:
-10-35 °C vertical installation || -10-55 °C horizontal installation
Maximum Leakage Current:
0.1 mA transistor output
Resistance To Fast Transients:
1 kV I/OIEC 61000-4-4
Product Or Component Type:
discrete output module
Toxic Heavy Metal Free:
Yes
Pvc Free:
Yes
Insulation:
between output and internal logic 500 V AC || non-insulated between outputs
Maximum Tungsten Load:
<1.2 W transistor output
Maximum Cable Distance Between Devices:
unshielded cable <5 m transistor output
Operating Altitude:
0...6561.68 ft (0...2000 m)
Electromagnetic Emission:
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Width:
33.5 mm
Local Signalling:
for output status 1 LED per channel (green)
Current Consumption:
5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state off) || 25 mA 5 V DC via bus connector at state on) || 40 mA 24 V DC via bus connector at state on)
Electrical Connection:
HE-10 connector for outputs
Depth:
81.3 mm
Relative Humidity:
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Resistance To Electromagnetic Fields:
10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Discrete Output Current:
100 mA transistor output
Resistance To Conducted Disturbances:
10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Ip Degree Of Protection:
IP20 with protective cover in place
Resistance To Electrostatic Discharge:
8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Discrete Output Logic:
negative logic (sink)
Net Weight:
0.112 kg
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Marking:
CE
Shock Resistance:
15 gn 11 ms
Ambient Air Temperature For Storage:
-25-70 °C
Catalog:
View
Datasheet:
View
