Schneider Electric TM3DQ8T Module Tm3-8 Out Tr.Pnp

Schneider Electric TM3DQ8T Module Tm3-8 Out Tr.Pnp

Schneider Electric
SKU:
TM3DQ8T
|
UPC:
3606480611469
$150.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

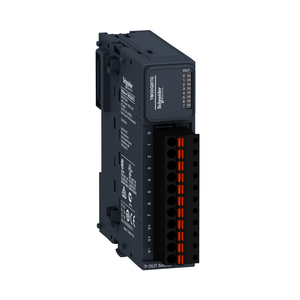

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 8 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24V DC and a current consumption of 20mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic at 500V AC, non-insulated between outputs. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for outputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.110kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Additional Information
Discrete Output Current:
500 mA transistor output
Discrete Output Type:
transistor
Rohs Exemption Information:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range Of Product:
Modicon TM3
Toxic Heavy Metal Free:
Yes
Product Certifications:
CE || cULus || UKCA || RCM || EAC || cULus HazLoc
Resistance To Electrostatic Discharge:
8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Maximum Tungsten Load:
<3 W transistor output
Discrete Output Number:
8
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Maximum Leakage Current:
0.1 mA transistor output
Resistance To Magnetic Fields:
30 A/m 50/60 Hz IEC 61000-4-8
Ip Degree Of Protection:
IP20 with protective cover in place
Net Weight:
0.76 kg
Resistance To Fast Transients:
1 kV I/OIEC 61000-4-4
Discrete Output Logic:
positive logic (source)
Storage Altitude:
0-3000 m
Electromagnetic Emission:
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Vibration Resistance:
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
Surge Withstand:
1 kV I/O common mode IEC 61000-4-5 DC
Standards:
IEC 61131-2
Resistance To Conducted Disturbances:
10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Environmental Disclosure:
ENVPEP1402009EN
Ambient Air Temperature For Storage:
-25-70 °C
Height:
90 mm
Maximum Cable Distance Between Devices:
unshielded cable <30 m transistor output
Response Time:
450 µs (turn-on) || 450 µs (turn-off)
Electrical Connection:
11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for outputs
Depth:
84.6 mm
China Rohs Regulation:
X
Pollution Degree:
2
Width:
27.4 mm
Relative Humidity:
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Resistance To Electromagnetic Fields:
10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Current Consumption:
5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state off) || 20 mA 24 V DC via bus connector at state on) || 10 mA 5 V DC via bus connector at state on)
Maximum Voltage Drop:
<0.4 V
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Pvc Free:
Yes
Sustainable Offer Status:
Green Premium product
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Discrete Output Voltage:
24 V DC transistor output
Shock Resistance:
15 gn 11 ms
Mercury Free:
Yes
Circularity Profile:
ENVEOLI1402009EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Operation:
-10-35 °C vertical installation || -10-55 °C horizontal installation
Discrete I/O Number:
8
Product Or Component Type:
discrete output module
Insulation:
between output and internal logic 500 V AC || non-insulated between outputs
Marking:
CE
Local Signalling:
for output status 1 LED per channel (green)
Range Compatibility:
Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
Operating Altitude:
0...6561.68 ft (0...2000 m)
