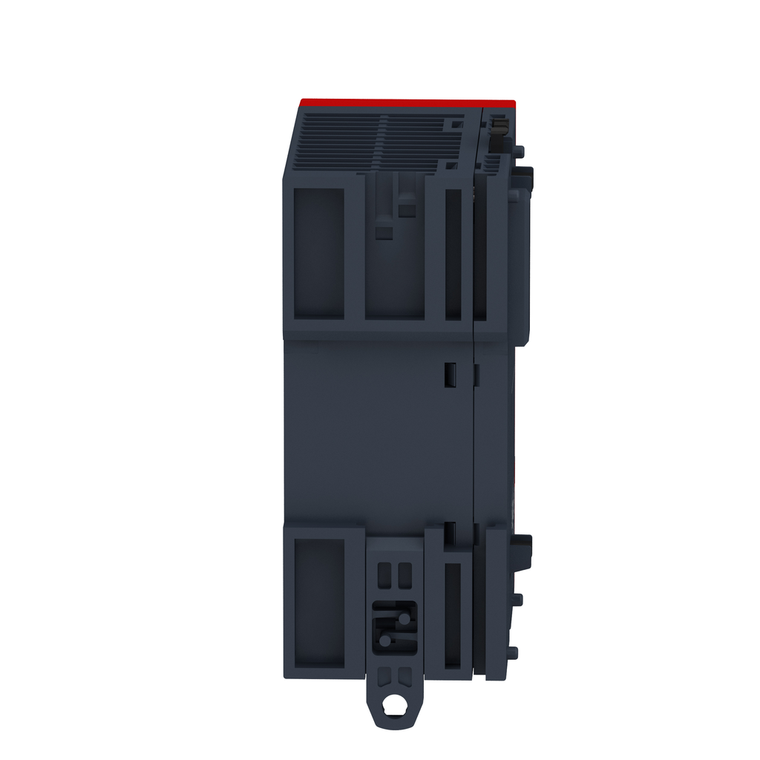

Schneider Electric TM3SAF5RG Safety Module For Plc Tm2Xx, 1 Function,

(No reviews yet) Write a Review

Write a Review

Schneider Electric TM3SAF5RG Safety Module For Plc Tm2Xx, 1 Function,

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

TM3SAF5RG

UPC:

3606485393001

MPN:

Condition:

New

Connections - Terminals:

captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34 || captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34 || capti

Current Consumption:

100 mA 24 V DC external supply

Resistance To Electrostatic Discharge:

8 kV in air IEC 61000-4-2 || 6 kV on contact IEC 61000-4-2

Resistance To Fast Transients:

3 kV power lines (DC) DC)IEC 61000-4-4 || 2 kV I/O linesIEC 61000-4-4

Range Of Product:

Modicon TM3 Safety

Marking:

EFUP 10 || CE || UL || EAC || RCM || CSA || TÜV

Environmental Disclosure:

ENVPEP1403010EN

Electromagnetic Emission:

radiated emissions 50 dBµV/m class A 24 V DC)30-230 Hz IEC 61131-3 || radiated emissions 57 dBµV/m class A 24 V DC)230-1000 Hz IEC 61131-3

Mechanical Robustness:

bumps 6 ms 300 shocks 25 gn) IEC 60068-2-27

Local Signalling:

for user 8 LEDs (green/red)

Function Of Module:

emergency stop monitoring 1-channel wiring || emergency stop monitoring 2-channel wiring || monitoring of a movable guard with 2 switches and automatic start

Mercury Free:

Yes

Safety Module Application:

for emergency stop and switch monitoring

Minimum Output Current:

10 mA relay output

Safety Reliability Data:

DC = 95 % ISO 13849-1 || PFHd = 5E-9 1/h IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A || PFHd = 30E-9 1/h IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A || MTTFd = 500 years ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A || MTTFd = 85 years

Circularity Profile:

ENVEOLI1403010EN

Associated Fuse Rating:

4 A gG or gL relay output IEC 60947-5-1 || 6 A fast blow relay output IEC 60947-5-1

Operating Altitude:

0...6561.68 ft (0...2000 m)

Resistance To Conducted Disturbances:

10 V 0.15...80 MHz IEC 61000-4-6

Surge Withstand:

1 kV power lines (DC) differential mode IEC 61000-4-5 DC || 1 kV power lines (DC) common mode IEC 61000-4-5 DC

Width:

43.7 mm

Storage Altitude:

0-3000 m

Standards:

ISO 13850 || IEC 60947-5-1 || EN 1088/ISO 14119 || IEC 60204-1 || IEC 60947-1

Output Thermal Current:

6 A per relay relay output

[Uc] Control Circuit Voltage:

24 V DC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mounting Support:

top hat type TH35-7.5 rail IEC 60715 || top hat type TH35-15 rail IEC 60715 || wall mount using attached fasteners

Relative Humidity:

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Ip Degree Of Protection:

IP20 terminals)IEC 60529

Resistance To Electromagnetic Fields:

10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3

Input Protection Type:

internal, electronic

Pvc Free:

Yes

[Uimp] Rated Impulse Withstand Voltage:

4 kV III IEC 60647-5-1

Synchronisation Time Between Inputs:

unlimited

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Pollution Degree:

2

Product Or Component Type:

safety module

Vibration Resistance:

+/- 3.5 mm 5-150 Hz)IEC 60068-2-6

Standards:

ISO 13849-1:2008 || ISO 13849-2:2012 || IEC 62061:2005 || IEC 61508:2010 || IEC 60947-5-1:2010 || IEC 61131-2:2007 || IEC 60204-1:2005 || IEC 60204-1:2009/A1 || IEC 61010-1:2010 || EN 50581:2012

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Short Name:

TM3SAF

Maximum Cable Distance Between Devices:

30 m

Ambient Air Temperature For Storage:

-25-70 °C

[Ith] Conventional Free Air Thermal Current:

18 A

Ambient Air Temperature For Operation:

-10-55 °C horizontal installation

Number Of Safety Circuits:

3 NO relay instantaneous opening

Maximum Switching Voltage:

230 V AC-15 50 Hz relay instantaneous opening) || 24 V DC-13 relay instantaneous opening)

[Ui] Rated Insulation Voltage:

300 V 2)IEC 60647-5-1

[Us] Rated Supply Voltage:

24 V - 15...20 % DC

Breaking Capacity:

360 VA holding AC-15 B300 relay output || 3600 VA inrush AC-15 B300 relay output

Net Weight:

0.19 kg

Height:

94 mm

Output Voltage:

10 V relay output

Output Type:

relay instantaneous opening, 3 NO, potential free

Product Certifications:

ANSI Haz Loc Class 1 Division 2 (pending) || UL 61010-2-201 || EAC || TÜV || RCM || CSA Haz Loc Class 1 Division 2 (pending) || CSA 61010-2-201 (pending)

Power Consumption In W:

0.2 W 5 V DC || 3.6 W 24 V DC

China Rohs Regulation:

X

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Electrical Connection:

spring terminal

Depth:

73 mm

Safety Level:

can reach PL e/category 4 ISO 13849-1 2008 || can reach PL e/category 4 ISO 13849-2 2012 || can reach SILCL 3 IEC 62061 2005 || can reach SIL 3 IEC 61508 2010

Maximum Response Time On Input Open:

40 ms

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Breaking Capacity:

4 A 24 V 50 ms DC-13 relay output

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Resistance To Magnetic Fields:

30 A/m 50/60 Hz IEC 61000-4-8

Electromagnetic Compatibility:

electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fiel
