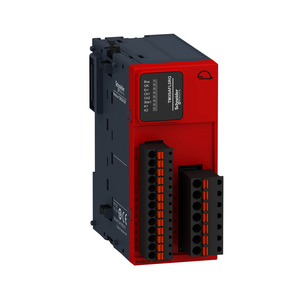

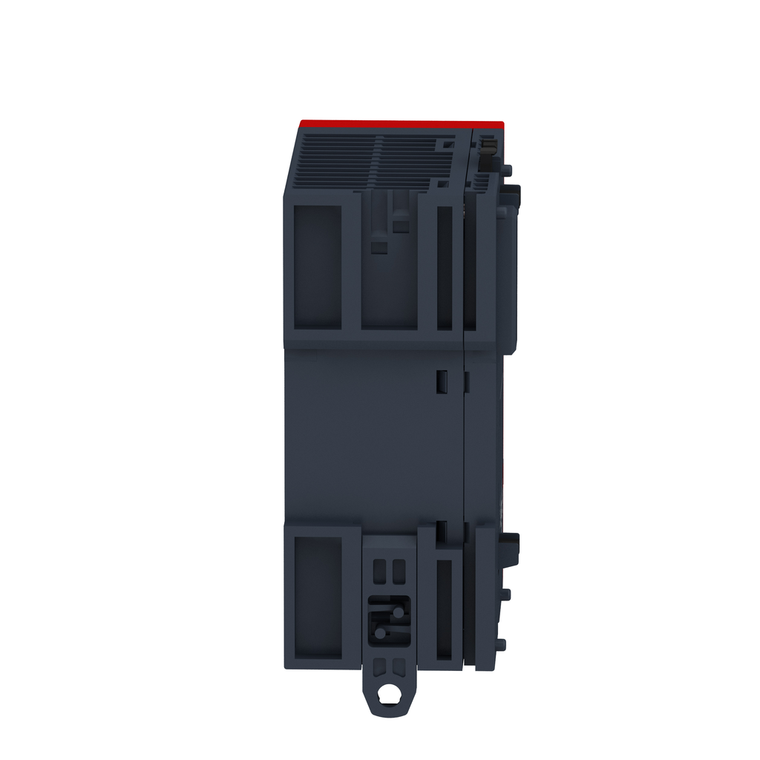

Schneider Electric TM3SAFL5R Safety Module For Plc Tm2Xx, 2 Functions

Schneider Electric TM3SAFL5R Safety Module For Plc Tm2Xx, 2 Functions

Schneider Electric
SKU:
TM3SAFL5R
|
UPC:
3606485393018
$370.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This TM3 safety expansion module monitors emergency shutdown pushbuttons, limit switches and light curtains to conform to PLd / Category 3. It meets the requirements of PL d/Category 3 conforming to EN/ISO 13849-1 and SILCL 2 conforming to EN/IEC 62061. It has a module locking latch, 2 TM3 bus connectors designed to provide continuity of the link between connected modules, a symmetrical rail locking clip, display block for the module channels and diagnostics. It completes your Modicon M221, M241 or M251 PLC configuration with a dedicated safety I/O, without the need to use a complete safety controller. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It is compatible with emergency push buttons, limit switches and safety light curtains, the 3 most common safety sensors in the industry.
Additional Information
[Uimp] Rated Impulse Withstand Voltage:
4 kV III IEC 60647-5-1
Minimum Output Current:
10 mA relay output
Resistance To Electrostatic Discharge:
8 kV in air IEC 61000-4-2 || 6 kV on contact IEC 61000-4-2
Standards:
IEC 60947-1 || EN 1088/ISO 14119 || ISO 13850 || IEC 60947-5-1 || IEC 60204-1
Power Consumption In W:
0.2 W 5 V DC || 3.6 W 24 V DC
Storage Altitude:
0-3000 m
Safety Reliability Data:
DC = 95 % ISO 13849-1 || PFHd = 5E-9 1/h IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A || PFHd = 30E-9 1/h IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A || MTTFd = 500 years ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A || MTTFd = 85 years
[Ui] Rated Insulation Voltage:
300 V 2)IEC 60647-5-1
Operating Altitude:
0...6561.68 ft (0...2000 m)
Breaking Capacity:
360 VA holding AC-15 B300 relay output || 3600 VA inrush AC-15 B300 relay output
Product Certifications:
TÜV || RCM || ANSI Haz Loc Class 1 Division 2 (pending) || CSA Haz Loc Class 1 Division 2 (pending) || EAC || CSA 61010-2-201 (pending) || UL 61010-2-201
Environmental Disclosure:
ENVPEP1403010EN
Marking:
CE || EFUP 10 || UL || CSA || EAC || RCM || TÜV
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation:
-10-55 °C horizontal installation
Connections - Terminals:
captive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34 || captive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-3
Product Compatibility:
safety light curtains EN/IEC 61496-1 (type 4)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Safety Level:
can reach PL d/category 3 ISO 13849-1 2008 || can reach PL d/category 3 ISO 13849-2 2012 || can reach SILCL 2 IEC 62061 2005 || can reach SIL 2 IEC 61508 2010
Circularity Profile:
ENVEOLI1403010EN
Width:
43.7 mm
Input Protection Type:
internal, electronic
Current Consumption:
100 mA 24 V DC external supply
Associated Fuse Rating:
4 A gG or gL relay output IEC 60947-5-1 || 6 A fast blow relay output IEC 60947-5-1
[Ith] Conventional Free Air Thermal Current:
18 A
Pvc Free:
Yes
Number Of Safety Circuits:
3 NO relay instantaneous opening
Rohs Exemption Information:
Yes
Electromagnetic Compatibility:
electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fiel
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Depth:
73 mm
Resistance To Fast Transients:
3 kV power lines (DC) DC)IEC 61000-4-4 || 2 kV I/O linesIEC 61000-4-4
Vibration Resistance:
+/- 3.5 mm 5-150 Hz)IEC 60068-2-6
Range Of Product:
Modicon TM3 Safety
Resistance To Magnetic Fields:
30 A/m 50/60 Hz IEC 61000-4-8
Mercury Free:
Yes
Device Short Name:
TM3SAFL
Local Signalling:
for user 8 LEDs (green/red)
Maximum Response Time On Input Open:
40 ms
Maximum Switching Voltage:
230 V AC-15 50 Hz relay instantaneous opening) || 24 V DC-13 relay instantaneous opening)
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Cable Distance Between Devices:
30 m
Function Of Module:
emergency stop monitoring 2-channel wiring || monitoring of a movable guard with 2 switches and automatic start || monitoring of a movable guard || multiple emergency stop monitoring 2-channel wiring || proximity sensor monitoring PNP/PNP || monitori
Net Weight:
0.19 kg
Height:
94 mm
Synchronisation Time Between Inputs:
unlimited
Output Thermal Current:
6 A per relay relay output
Resistance To Conducted Disturbances:
10 V 0.15...80 MHz IEC 61000-4-6
Ambient Air Temperature For Storage:
-25-70 °C
Safety Module Application:
for emergency stop, switch and safety light curtain monitoring
[Uc] Control Circuit Voltage:
24 V DC
Surge Withstand:
1 kV power lines (DC) differential mode IEC 61000-4-5 DC || 1 kV power lines (DC) common mode IEC 61000-4-5 DC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Or Component Type:
safety module
Breaking Capacity:
4 A 24 V 50 ms DC-13 relay output
Ip Degree Of Protection:
IP20 terminals)IEC 60529
Sustainable Offer Status:
Green Premium product
Standards:
ISO 13849-1:2008 || ISO 13849-2:2012 || IEC 62061:2005 || IEC 61508:2010 || IEC 60947-5-1:2010 || IEC 61131-2:2007 || IEC 60204-1:2005 || IEC 60204-1:2009/A1 || IEC 61010-1:2010 || EN 50581:2012
Resistance To Electromagnetic Fields:
10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Pollution Degree:
2
Relative Humidity:
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
[Us] Rated Supply Voltage:
24 V - 15...20 % DC
Mounting Support:
top hat type TH35-7.5 rail IEC 60715 || top hat type TH35-15 rail IEC 60715 || wall mount using attached fasteners
Mechanical Robustness:
bumps 6 ms 300 shocks 25 gn) IEC 60068-2-27
Output Type:
relay instantaneous opening, 3 NO, potential free
Electromagnetic Emission:
radiated emissions 50 dBµV/m class A 24 V DC)30-230 Hz IEC 61131-3 || radiated emissions 57 dBµV/m class A 24 V DC)230-1000 Hz IEC 61131-3
China Rohs Regulation:
X
Electrical Connection:
screw terminal
Output Voltage:
10 V relay output
Catalog:
View
Datasheet:
View
