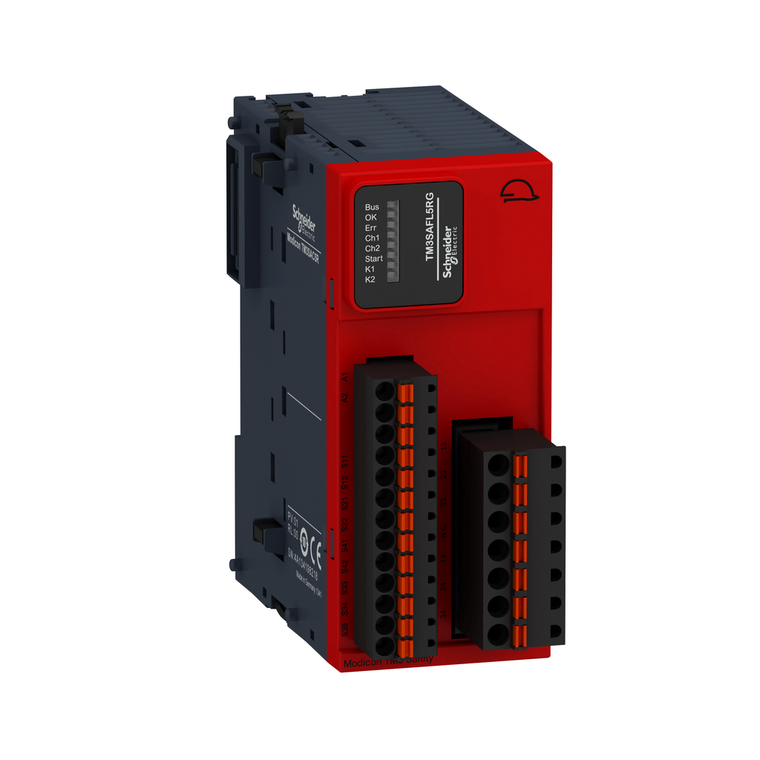

Schneider Electric TM3SAFL5RG Safety Module For Plc Tm2Xx, 2 Functions
Schneider Electric
$370.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric TM3SAFL5RG Safety Module For Plc Tm2Xx, 2 Functions
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The safety module provides 3 normally opened contacts and unlimited synchronisation time between inputs. It is a safety module with a rated supply voltage of 24V DC, an external supply current consumption of 100mA at 24V DC on power supply and a power consumption 0.2W at 5V DC, 3.6W at 24V DC. The main functions of this module are emergency stop, movable guard, multiple emergency stop, proximity sensor and electro-sensitive protection equipment (ESPE) monitoring. It is furnished with spring terminal for electrical connection. It is an IP20 rated product. Its dimensions are 43.7mm (Width) x 73mm (Depth) x 94mm (Height). It weighs 0.19kg. It is suitable for emergency stop, switch and safety light curtain monitoring applications. This product is certified by RCM, CSA, UL, TÜV, ANSI Haz Loc Class 1 Division 2, EAC. It supports wall mount using attached fasteners. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
- Ambient Air Temperature For Storage:
- -25-70 °C
- Minimum Output Current:
- 10 mA relay output
- Safety Module Application:
- for emergency stop, switch and safety light curtain monitoring
- Electrical Connection:
- spring terminal
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Relative Humidity:
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Maximum Response Time On Input Open:
- 40 ms
- Maximum Cable Distance Between Devices:
- 30 m
- Maximum Switching Voltage:
- 230 V AC-15 50 Hz relay instantaneous opening) || 24 V DC-13 relay instantaneous opening)
- Resistance To Electromagnetic Fields:
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Number Of Safety Circuits:
- 3 NO relay instantaneous opening
- Standards:
- ISO 13849-1:2008 || ISO 13849-2:2012 || IEC 62061:2005 || IEC 61508:2010 || IEC 60947-5-1:2010 || IEC 61131-2:2007 || IEC 60204-1:2005 || IEC 60204-1:2009/A1 || IEC 61010-1:2010 || EN 50581:2012
- Environmental Disclosure:
- ENVPEP1403010EN
- Synchronisation Time Between Inputs:
- unlimited
- Power Consumption In W:
- 0.2 W 5 V DC || 3.6 W 24 V DC
- China Rohs Regulation:
- X
- Height:
- 94 mm
- Standards:
- IEC 60204-1 || EN 1088/ISO 14119 || ISO 13850 || IEC 60947-1 || IEC 60947-5-1
- Electromagnetic Emission:
- radiated emissions 50 dBµV/m class A 24 V DC)30-230 Hz IEC 61131-3 || radiated emissions 57 dBµV/m class A 24 V DC)230-1000 Hz IEC 61131-3
- Local Signalling:
- for user 8 LEDs (green/red)
- Current Consumption:
- 100 mA 24 V DC external supply
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Safety Reliability Data:
- DC = 95 % ISO 13849-1 || PFHd = 5E-9 1/h IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A || PFHd = 30E-9 1/h IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A || MTTFd = 500 years ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A || MTTFd = 85 years
- Breaking Capacity:
- 4 A 24 V 50 ms DC-13 relay output
- Safety Level:
- can reach PL d/category 3 ISO 13849-1 2008 || can reach PL d/category 3 ISO 13849-2 2012 || can reach SILCL 2 IEC 62061 2005 || can reach SIL 2 IEC 61508 2010
- Associated Fuse Rating:
- 4 A gG or gL relay output IEC 60947-5-1 || 6 A fast blow relay output IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current:
- 18 A
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Operation:
- -10-55 °C horizontal installation
- Input Protection Type:
- internal, electronic
- Device Short Name:
- TM3SAFL
- Resistance To Magnetic Fields:
- 30 A/m 50/60 Hz IEC 61000-4-8
- Storage Altitude:
- 0-3000 m
- Output Voltage:
- 10 V relay output
- Vibration Resistance:
- +/- 3.5 mm 5-150 Hz)IEC 60068-2-6
- Ip Degree Of Protection:
- IP20 terminals)IEC 60529
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Marking:
- RCM || UL || CSA || EAC || CE || TÃV || EFUP 10
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Breaking Capacity:
- 360 VA holding AC-15 B300 relay output || 3600 VA inrush AC-15 B300 relay output
- Sustainable Offer Status:
- Green Premium product
- [Ui] Rated Insulation Voltage:
- 300 V 2)IEC 60647-5-1
- Rohs Exemption Information:
- Yes
- Pollution Degree:
- 2
- Depth:
- 73 mm
- Resistance To Electrostatic Discharge:
- 8 kV in air IEC 61000-4-2 || 6 kV on contact IEC 61000-4-2
- Electromagnetic Compatibility:
- electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fiel
- Pvc Free:
- Yes
- Output Type:
- relay instantaneous opening, 3 NO, potential free
- Function Of Module:
- emergency stop monitoring 2-channel wiring || monitoring of a movable guard with 2 switches and automatic start || monitoring of a movable guard || multiple emergency stop monitoring 2-channel wiring || proximity sensor monitoring PNP/PNP || monitori
- Range Of Product:
- Modicon TM3 Safety
- Circularity Profile:
- ENVEOLI1403010EN
- Product Certifications:
- CSA 61010-2-201 (pending) || RCM || UL 61010-2-201 || EAC || ANSI Haz Loc Class 1 Division 2 (pending) || CSA Haz Loc Class 1 Division 2 (pending) || TÃV
- Connections - Terminals:
- captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34 || captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34 || capti
- Mounting Support:
- top hat type TH35-7.5 rail IEC 60715 || top hat type TH35-15 rail IEC 60715 || wall mount using attached fasteners
- Output Thermal Current:
- 6 A per relay relay output
- [Uc] Control Circuit Voltage:
- 24 V DC
- [Us] Rated Supply Voltage:
- 24 V - 15...20 % DC
- Resistance To Fast Transients:
- 3 kV power lines (DC) DC)IEC 61000-4-4 || 2 kV I/O linesIEC 61000-4-4
- Product Or Component Type:
- safety module
- Net Weight:
- 0.19 kg
- Mercury Free:
- Yes
- Surge Withstand:
- 1 kV power lines (DC) differential mode IEC 61000-4-5 DC || 1 kV power lines (DC) common mode IEC 61000-4-5 DC
- Resistance To Conducted Disturbances:
- 10 V 0.15...80 MHz IEC 61000-4-6
- Mechanical Robustness:
- bumps 6 ms 300 shocks 25 gn) IEC 60068-2-27
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV III IEC 60647-5-1
- Product Compatibility:
- safety light curtains EN/IEC 61496-1 (type 4)
- Width:
- 43.7 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
