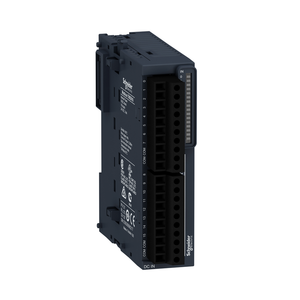

Schneider Electric TM3XTYS4 Module Tm3-Tesys Interface 4Xrj45

Schneider Electric TM3XTYS4 Module Tm3-Tesys Interface 4Xrj45

Schneider Electric
SKU:
TM3XTYS4
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$177.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The parallel interface module provides 12 input channels, 8 transistor output channels. It is an interface module with a rated supply voltage of 24V DC, a current consumption of 1200A and an output voltage of 24V DC. There is an insulation between the RJ45 connectors and internal logic at 500V AC and non-insulated between RJ45 connectors. It is furnished with four RJ45 connector for connecting the motor starters and removable screw terminal for electrical connection. It is an IP20 rated product. Its dimensions are 30mm (Width) x 85mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE, CULus and C-Tick. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Additional Information
Pvc Free:
Yes
Range Of Product:
Modicon TM3
Toxic Heavy Metal Free:
Yes
Sustainable Offer Status:
Green Premium product
Output Protection Type:
against overload current limiter
Resistance To Conducted Disturbances:
10 V 0.15...80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Electrical Connection:
3 x 2.5 mm² removable screw terminal block pitch 5.08 mm for connecting the 24 V DC power supply || 4 RJ45 connectors for connecting the motor starters
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Resistance To Electrostatic Discharge:
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
Surge Withstand:
1 kV input common mode EN/IEC 61000-4-5 || 1 kV output common mode EN/IEC 61000-4-5
Ambient Air Temperature For Storage:
-25-70 °C
Product Certifications:
CE || cULus || UKCA || RCM || EAC
Depth:
85 mm
Range Compatibility:
Modicon M221 || Modicon M251 || Modicon M241 || Modicon M262
Input Current Limits:
5-5 mA per input
Resistance To Electromagnetic Fields:
10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
Net Weight:
0.115 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height:
90 mm
Output Voltage:
24 V DC transistor output
Environmental Disclosure:
ENVPEP1402009EN
Number Of Output Channels:
8
Mercury Free:
Yes
Resistance To Fast Transients:
1 kV inputEN/IEC 61000-4-4 || 1 kV outputEN/IEC 61000-4-4
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ip Degree Of Protection:
IP20 with protective cover in place
Width:
30 mm
Marking:
CE
Storage Altitude:
0-3000 m
Product Specific Application:
TeSys U
China Rohs Regulation:
X
Vibration Resistance:
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
Shock Resistance:
15 gn 11 ms
Product Or Component Type:
parallel interface module
Rohs Exemption Information:
Yes
Input Voltage Limits:
19.2...28.8 V per input
Current Consumption:
5 mA 5 V DC via bus connector at state on || 35 mA 5 V DC via bus connector at state off || 0 mA 24 V DC via bus connector at state on || 10 mA 24 V DC via bus connector at state off || 1200 mA 24 V DC external power supply at state on
Resistance To Magnetic Fields:
30 A/m 50/60 Hz EN/IEC 61000-4-8
Reset:
automatic reset
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
[Us] Rated Supply Voltage:
24 V DC external supply - 15...20 %)
Maximum Load Current:
800 mA per channel starting mode 100 ms || 300 mA per channel normal mode
Insulation:
between the RJ45 connectors and internal logic 500 V AC || non-insulated between RJ45 connectors
Number Of Input Channels:
12
Electromagnetic Emission:
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
Relative Humidity:
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Pollution Degree:
2
Circularity Profile:
ENVEOLI1402009EN
Operating Altitude:
0...6561.68 ft (0...2000 m)
Response Time:
< 10 ms turn-on input || < 10 ms turn-off input
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Local Signalling:
3 LEDs green per channel input status || 2 LEDs green per channel output status
Ambient Air Temperature For Operation:
-10-35 °C vertical installation || -10-55 °C horizontal installation
Catalog:
View
