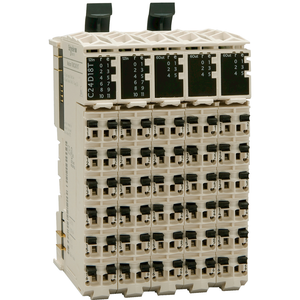

Schneider Electric TM5C24D12R Compact 24Di 24Vdc/12Do Relay

Schneider Electric TM5C24D12R Compact 24Di 24Vdc/12Do Relay

Schneider Electric
SKU:
TM5C24D12R
|
UPC:
3595864074382
Availability:
Contact us to confirm availability and lead times.
$670.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This compact I/O expansion block features 24 discrete inputs with sink logic and 12 discrete relay outputs with sink/source logic. It is an expansion block with 2 module(s) x 12 digital input with input voltage of 24V DC and 2 module(s) x 6 relay output with voltage of 30V DC, 240V AC. There is an isolation between 500Vrms AC insulation between channel and bus, no insulation between channels. It is furnished with removable spring terminal block for electrical connection. It is an IP20 rated product. The enclosure is made of white plastic. It weighs 0.37kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Additional Information
Mechanical Durability:
20000000 cycles
Shock Resistance:
15 gn 11 ms
Isolation:
500 Vrms AC insulation between channel and bus || no insulation between channels
Discrete Output Type:
relay
Input Impedance:
6.4 kOhm
Environmental Disclosure:
ENVPEP1511024EN
Input Filtering:
<= 100 ms hardware || <= 25 ms configurable by software
Marking:
CE
Pvc Free:
Yes
Net Weight:
0.26 kg
Analogue Input Number:
0
Discrete Output Current:
2 A per output
Discrete Input Logic:
sink
Product Or Component Type:
compact I/O expansion block
Product Certifications:
cULus || GOST-R || CSA || C-tick
Discrete Input Voltage:
24 V
Vibration Resistance:
1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Ambient Air Temperature For Storage:
-40-70 °C
Number Of Modules:
digital input 2 x 12 || relay output 2 x 6
Range Of Product:
Modicon TM5
Discrete Input Number:
24
Output Voltage Limits:
24...36 V DC || 184...276 V AC
Wiring Mode:
1 wire discrete input
Mounting Support:
DIN rail
Ip Degree Of Protection:
IP20IEC 61131-2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Discrete Output Number:
12
Output Voltage:
30 V DC || 240 V AC
Mercury Free:
Yes
Discrete Output Logic:
source or sink
Pollution Degree:
2 IEC 60664
Local Signalling:
for input status 24 LEDs (green) || for power supply 4 LEDs (green) || for power supply 4 LEDs (red) || for output status 12 LEDs (yellow)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Enclosure Material:
Plastic
Electromagnetic Compatibility:
EN/IEC 61000-4-6
Warranty:
18 months
Discrete Input Current:
3.75 mA
Toxic Heavy Metal Free:
Yes
Voltage State 0 Guaranteed:
<= 5 V
Resistance To Electromagnetic Fields:
1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80...2000 MHz IEC 61000-4-3
Maximum Power Dissipation In W:
4.3 W
Voltage State 1 Guaranteed:
>= 15 V
Input/Output Number:
36
Circularity Profile:
ENVEOLI1511024EN
Response Time:
<= 12 ms from state 0 to state 1 output || <= 10 ms from state 1 to state 0 output
Relative Humidity:
5-95 % without condensation
Rohs Exemption Information:
Yes
Operating Altitude:
0...6561.68 ft (0...2000 m)
Color:
White
Minimum Switching Current:
10 mA 5 V DC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Discrete Input Voltage Type:
DC
Input Voltage Limits:
20.4...28.8 V
Current Consumption:
68 mA 5 V DC bus || 165 mA 24 V DC input/output
Disturbance Radiated/Conducted:
CISPR 11
Resistance To Fast Transients:
1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
Storage Altitude:
0-3000 m
Standards:
CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61131-2 || UL 508
Resistance To Electrostatic Discharge:
4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
Ambient Air Temperature For Operation:
-10-50 °C vertical installation) || -10-60 °C horizontal installation)
Sustainable Offer Status:
Green Premium product
Discrete Output Function:
1 NO
China Rohs Regulation:
X
Electrical Connection:
removable spring terminal block
Input/Output Number Of Splitter Box:
24 I + 12 O
Surge Withstand:
0.5 kV differential mode 24 V DC IEC 61000-4-5 || 1 kV common mode 24 V DC IEC 61000-4-5 || 1 kV differential mode 230 V AC IEC 61000-4-5 || 2 kV common mode 230 V AC IEC 61000-4-5
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
