Schneider Electric TM5C24D18T Compact 24Vdc 24Di/18Do Tr

Schneider Electric TM5C24D18T Compact 24Vdc 24Di/18Do Tr

Schneider Electric
SKU:
TM5C24D18T
|
UPC:
3595864074351
Availability:
Contact us to confirm availability and lead times.
$850.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

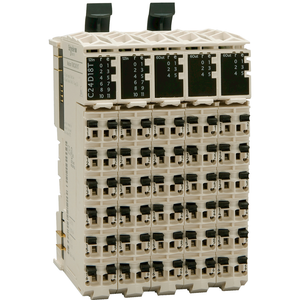

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This compact I/O expansion block provides 42 input/outputs with sink discrete input logic and source discrete output logic. It is an expansion block with 2 module(s) x 12 digital input with input voltage of 24V DC and 3 module(s) x 6 transistor output with voltage of 24V DC. There is an isolation between 500Vrms AC insulation between channel and bus, no insulation between channels. It is furnished with removable spring terminal block for electrical connection. It is an IP20 rated product. The enclosure is made of white plastic. It weighs 0.37kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Additional Information
Discrete Output Type:
transistor
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation:
-10-50 °C vertical installation) || -10-60 °C horizontal installation)
Isolation:
500 Vrms AC insulation between channel and bus || no insulation between channels
Color:
White
Maximum Voltage Drop:
<0.3 V at 500 mA output
Input/Output Number Of Splitter Box:
24 I + 18 O
Discrete Output Logic:
source
Discrete Input Current:
3.75 mA
Local Signalling:
for power supply 5 LEDs (green) || for power supply 5 LEDs (red) || for input status 24 LEDs (green) || for output status 18 LEDs (yellow)
Output Voltage Limits:
20.4...28.8 V DC
Input Voltage Limits:
20.4...28.8 V
Max Current:
9000 mA loads on I/O power segment
Maximum Power Dissipation In W:
3.71 W
Electrical Connection:
removable spring terminal block
Product Certifications:
C-tick || cULus || GOST-R || CSA
Sustainable Offer Status:
Green Premium product
Number Of Modules:
digital input 2 x 12 || digital output 3 x 6
Standards:
IEC 61131-2 || UL 508 || CSA C22.2 No 213 || CSA C22.2 No 142
Net Weight:
0.24 kg
Output Voltage:
24 V DC
Voltage State 0 Guaranteed:
<= 5 V
Input Impedance:
6.4 kOhm
Circularity Profile:
ENVEOLI1511024EN
Mercury Free:
Yes
Marking:
CE
Discrete Input Number:
24
Toxic Heavy Metal Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Peak Output Current:
0.375
Storage Altitude:
0-3000 m
Enclosure Material:
Plastic
Disturbance Radiated/Conducted:
CISPR 11
Discrete Input Voltage:
24 V
Warranty:
18 months
Resistance To Fast Transients:
1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
Resistance To Electrostatic Discharge:
4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
Pvc Free:
Yes
Discrete Input Logic:
sink
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Input Filtering:
<= 100 ms hardware || <= 25 ms configurable by software
Ambient Air Temperature For Storage:
-40-70 °C
Ip Degree Of Protection:
IP20IEC 61131-2
Discrete Output Current:
0.5 A per output
Pollution Degree:
2 IEC 60664
Maximum Leakage Current:
5 µA when switched off) output
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Voltage State 1 Guaranteed:
>= 15 V
Product Or Component Type:
compact I/O expansion block
Mounting Support:
DIN rail
Rohs Exemption Information:
Yes
Analogue Input Number:
0
Operating Altitude:
0...6561.68 ft (0...2000 m)
Wiring Mode:
1 wire discrete input || 2-wire discrete output
Range Of Product:
Modicon TM5
Response Time:
<= 300 µs from state 0 to state 1 output || <= 300 µs from state 1 to state 0 output
Vibration Resistance:
1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Surge Withstand:
0.5 kV differential mode 24 V DC IEC 61000-4-5 || 1 kV common mode 24 V DC IEC 61000-4-5
Discrete Input Voltage Type:
DC
Electromagnetic Compatibility:
EN/IEC 61000-4-6
China Rohs Regulation:
X
Discrete Output Number:
18
Current Consumption:
70 mA 5 V DC bus || 140 mA 24 V DC input/output
Shock Resistance:
15 gn 11 ms
Environmental Disclosure:
ENVPEP1511024EN
Relative Humidity:
5-95 % without condensation
Resistance To Electromagnetic Fields:
1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80...2000 MHz IEC 61000-4-3
Input/Output Number:
42
Catalog:
View
Datasheet:
View
