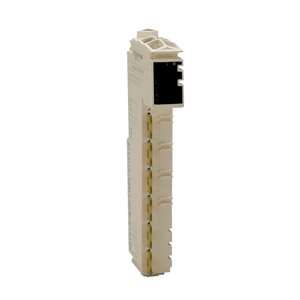

Schneider Electric TM5SAO2H Mod. 2Ao 10V/0-20Ma 16 Bits

Schneider Electric TM5SAO2H Mod. 2Ao 10V/0-20Ma 16 Bits

Schneider Electric
SKU:
TM5SAO2H
|
UPC:
3595864074801
Availability:
Contact us to confirm availability and lead times.
$690.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This analogue output module provides 2 analogue outputs with 15bits + sign, ±10V, 0mA to 20mA resolution. It offers analogue output ranges from 0mA to 20mA, ±10V. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an isolation between channel and bus at 500V AC. The output voltage is ±10V and output current is 0mA to 20mA differential with internal supply. It is an IP20 rated product. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Additional Information
Shock Resistance:
15 gn 11 ms
Sustainable Offer Status:
Green Premium product
Operating Altitude:
0...6561.68 ft (0...2000 m)
Analogue Output Number:
2
Pollution Degree:
2 IEC 60664
Maximum Power Dissipation In W:
1.21 W
Surge Withstand:
0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
Range Of Product:
Modicon TM5
Isolation:
no insulation between channels || 500 Vrms AC insulation between channel and bus
Non-Linearity:
< 0.007 %FS/°C current || < 0.007 %FS/°C voltage
China Rohs Regulation:
X
Electromagnetic Compatibility:
EN/IEC 61000-4-6
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Resistance To Electrostatic Discharge:
4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
Marking:
CE
Vibration Resistance:
1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Minimum Output Impedance:
1 Ohm
Resistance To Electromagnetic Fields:
1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80...2000 MHz IEC 61000-4-3
Net Weight:
0.025 kg
Product Or Component Type:
analog output module
Analogue Output Type:
current 0...20 mA || voltage +/- 10 V
Mercury Free:
Yes
Warranty:
18 months
Toxic Heavy Metal Free:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Supply:
internal
Reach Free Of Svhc:
Yes
Response Time:
<= 1 ms
Pvc Free:
Yes
Ambient Air Temperature For Storage:
-25-70 °C
Measurement Resolution:
305.176 µV, +/- 10 V || 610.352 nA, 0...20 mA
Resistance To Fast Transients:
1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
Environmental Disclosure:
ENVPEP1511026EN
Measurement Error:
< 0.045 % of full scale +/- 10 V 25 °C || < 0.045 % of full scale 0...20 mA 25 °C
Disturbance Radiated/Conducted:
CISPR 11
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption Information:
Yes
Sampling Duration:
50 ms
Current Consumption:
2 mA 5 V DC bus || 50 mA 24 V DC input/output
Ip Degree Of Protection:
IP20IEC 61131-2
[Us] Rated Supply Voltage:
24 V DC -15...20 %
Circularity Profile:
ENVEOLI1511026EN
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Storage Altitude:
0-3000 m
Local Signalling:
1 LED green power supply || 1 LED red power supply || 2 LEDs yellow output status
Analogue Output Resolution:
15 bits + sign, +/- 10 V || 15 bits, 0...20 mA
Product Compatibility:
logic controller || motion controller
Temperature Coefficient:
0.015 %FS/°C current || 0.015 %FS/°C voltage
Color:
White
Type Of Cable:
shielded cable
Relative Humidity:
5-95 % without condensation
Standards:
CSA C22.2 No 213 || UL 508 || CSA C22.2 No 142 || IEC 61131-2
Product Certifications:
cULus || C-tick || GOST-R || CSA
Range Compatibility:
Modicon LMC058 || Modicon M258
Ambient Air Temperature For Operation:
0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
