Schneider Electric TM5SAO4L Mod. 4Ao 10V/0-20Ma 12 Bits
Schneider Electric
$595.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

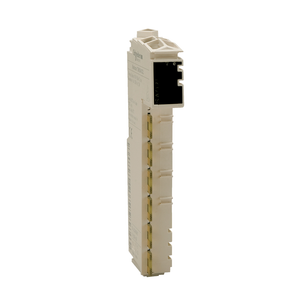

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This analogue output module provides 4 analogue outputs with 12bits + sign, ±10V, 0mA to 20mA resolution. It offers analogue output ranges from 0mA to 20mA, ±10V. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an isolation between channel and bus at 500V AC. The output voltage is ±10V and output current is 0mA to 20mA differential with internal supply. It is an IP20 rated product. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
- Surge Withstand:
- 0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
- Relative Humidity:
- 5-95 % without condensation
- Product Certifications:
- cULus || GOST-R || CSA || C-tick
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Measurement Resolution:
- 4.882 mV, +/- 10 V || 9.766 µA, 0...20 mA
- Mercury Free:
- Yes
- Type Of Cable:
- shielded cable
- Electromagnetic Compatibility:
- EN/IEC 61000-4-6
- Net Weight:
- 0.025 kg
- Analogue Output Number:
- 4
- Ip Degree Of Protection:
- IP20IEC 61131-2
- Current Consumption:
- 2 mA 5 V DC bus || 63 mA 24 V DC input/output
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Minimum Output Impedance:
- 1 Ohm
- Resistance To Electromagnetic Fields:
- 1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80...2000 MHz IEC 61000-4-3
- Resistance To Electrostatic Discharge:
- 4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
- Measurement Error:
- < 0.08 % of full scale +/- 10 V +/- 10 V 25 °C || < 0.08 % of full scale 0...20 mA 0...20 mA 25 °C
- Ambient Air Temperature For Storage:
- -25-70 °C
- Range Of Product:
- Modicon TM5
- Marking:
- CE
- China Rohs Regulation:
- X
- Range Compatibility:
- Modicon LMC058 || Modicon M258
- Resistance To Fast Transients:
- 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
- Disturbance Radiated/Conducted:
- CISPR 11
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Standards:
- IEC 61131-2 || CSA C22.2 No 213 || UL 508 || CSA C22.2 No 142
- Product Or Component Type:
- analog output module
- Response Time:
- <= 1 ms
- Color:
- White
- Analogue Output Resolution:
- 12 bits + sign, +/- 10 V || 12 bits, 0...20 mA
- Load Impedance Ohmic:
- 200...500 Ohmcurrent)
- Supply:
- internal
- Sampling Duration:
- 300 µs
- Pollution Degree:
- 2 IEC 60664
- Ambient Air Temperature For Operation:
- 0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
- Shock Resistance:
- 15 gn 11 ms
- [Us] Rated Supply Voltage:
- 24 V DC -15...20 %
- Temperature Coefficient:
- 0.015 %FS/°C current || 0.015 %FS/°C voltage
- Maximum Power Dissipation In W:
- 1.51 W
- Warranty:
- 18 months
- Pvc Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Product Compatibility:
- logic controller || motion controller
- Analogue Output Type:
- current 0...20 mA || voltage +/- 10 V
- Vibration Resistance:
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
- Local Signalling:
- 1 LED green power supply || 1 LED red power supply || 4 LEDs yellow output status
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Storage Altitude:
- 0-3000 m
- Non-Linearity:
- < 0.005 %FS current || < 0.005 %FS voltage
- Environmental Disclosure:
- ENVPEP1511026EN
- Circularity Profile:
- ENVEOLI1511026EN
- Isolation:
- 500 Vrms AC insulation between channel and bus || no insulation between channels
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
