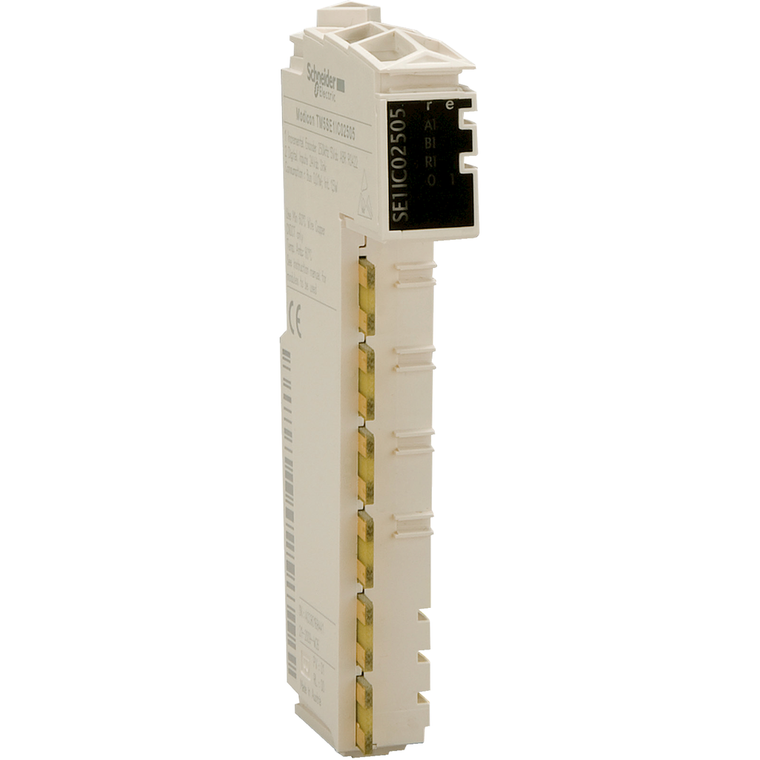

Schneider Electric TM5SDI2DF Mod. 2Di Fast 24Vdc Sink 3 Wires

Schneider Electric TM5SDI2DF Mod. 2Di Fast 24Vdc Sink 3 Wires

Schneider Electric
SKU:
TM5SDI2DF
|
UPC:
3595864074498
Availability:
Contact us to confirm availability and lead times.
$110.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This counter module provides 2 counter inputs for event counting and interval measurement. Its counting frequency is 50kHz per channel. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. The inputs type is 1-, 2-, or 3-wire. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Additional Information
Operating Altitude:
0...6561.68 ft (0...2000 m)
Mercury Free:
Yes
Function Of Module:
interval measurement || event counting
Range Of Product:
Modicon TM5
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Discrete Input Number:
2
Isolation:
500 Vrms AC insulation between channel and bus || no insulation between channels
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Discrete Input Logic:
sink
Discrete Input Voltage:
24 V DC
Pvc Free:
Yes
Net Weight:
0.025 kg
Sustainable Offer Status:
Green Premium product
Product Certifications:
CSA || GOST-R || cULus || C-tick
Environmental Disclosure:
ENVPEP1511026EN
Reach Free Of Svhc:
Yes
Storage Altitude:
0-3000 m
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circularity Profile:
ENVEOLI1511026EN
Input Filtering:
<= 10 ms hardware || <= 25 ms configurable by software
Electromagnetic Compatibility:
EN/IEC 61000-4-6
Resistance To Fast Transients:
1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
Warranty:
18 months
China Rohs Regulation:
X
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Compatibility:
logic controller || motion controller
Product Specific Application:
frequency meter || period measurement || frequency generator || upcounting || downcounting
Discrete Input Current:
10.5 mA 24 V
Resistance To Electrostatic Discharge:
4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
Relative Humidity:
5-95 % without condensation
Ip Degree Of Protection:
IP20IEC 61131-2
Surge Withstand:
0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
Ambient Air Temperature For Storage:
-25-70 °C
Toxic Heavy Metal Free:
Yes
Current Consumption:
30 mA 5 V DC bus || 34 mA 24 V DC input/output
Counting Frequency:
50 kHz
Disturbance Radiated/Conducted:
CISPR 11
Ambient Air Temperature For Operation:
0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
Maximum Power Dissipation In W:
0.97 W
Range Compatibility:
Modicon M258 || Modicon LMC058
Product Or Component Type:
counter module
Resistance To Electromagnetic Fields:
1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80...2000 MHz IEC 61000-4-3
Standards:
UL 508 || CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61131-2
Marking:
CE
Pollution Degree:
2 IEC 60664
Vibration Resistance:
1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Shock Resistance:
15 gn 11 ms
