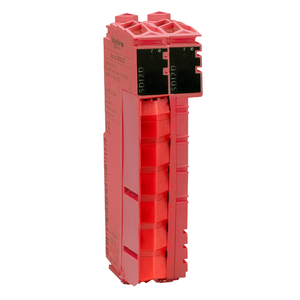

Schneider Electric TM5SDO4TA Mod. 4Do 24Vdc Tr 2A 3 Wires
Schneider Electric
$205.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This discrete output module provides 4 discrete outputs with transistor discrete output. Its output voltage limits are 20.4 to 28.8V DC, and provides a maximum power dissipation of 2.1W. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an isolation between channel and bus at 500V AC. It is furnished with 3 wires for electrical connection. It is an IP20 rated product. Its housing colour is white.It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Sercos bus interface module. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
- Storage Altitude:
- 0-3000 m
- Ambient Air Temperature For Operation:
- -10-55 °C without derating horizontal installation) || -10-60 °C with derating factor horizontal installation) || -10-50 °C vertical installation)
- Protection Type:
- reverse polarity protection || overload protection || short-circuit protection
- Product Compatibility:
- motion controller || PacDrive LMC Pro || PacDrive LMC Pro 2 || logic controller || PacDrive LMC Eco
- Discrete Output Logic:
- source
- Current Per Channel:
- 0.0833333333333333
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Isolation:
- no insulation between channels || 500 Vrms AC insulation between channel and bus
- Product Or Component Type:
- discrete output module
- Maximum Power Dissipation In W:
- 2.1 W
- Rohs Exemption Information:
- Yes
- Electrical Connection:
- 3 wires
- Discrete Output Number:
- 4
- Maximum Voltage Drop:
- <0.5 V at 2 A output || <2 V at 500 mA sensor supply
- Local Signalling:
- 1 LED green power supply || 1 LED red power supply || 4 LEDs yellow output status
- Environmental Disclosure:
- ENVPEP1511026EN
- Relative Humidity:
- 5-95 % without condensation
- Maximum Leakage Current:
- 5 µA when switched off
- Maximum Supply Current For Sensors:
- 500 mA
- Shock Resistance:
- 15 gn 11 ms
- Marking:
- CE
- Pollution Degree:
- 2 IEC 60664
- Discrete Output Type:
- transistor
- Circularity Profile:
- ENVEOLI1511026EN
- Ambient Air Temperature For Storage:
- -40-70 °C
- Vibration Resistance:
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
- Response Time:
- <= 300 µs from state 0 to state 1 output || <= 300 µs from state 1 to state 0 output
- Reach Free Of Svhc:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Certifications:
- GOST-R || cULus || CSA || C-tick
- Current Consumption:
- 32 mA 5 V DC bus || 21 mA 24 V DC input/output
- Peak Output Current:
- 0
- Switching Frequency:
- <= 500 Hz resistive
- Net Weight:
- 0.025 kg
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Electromagnetic Compatibility:
- electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2 || electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2 || susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz IEC 61000-4-3 || susceptibility to electromagnetic
- Toxic Heavy Metal Free:
- Yes
- Maximum Current Per Output Common:
- 0.166666666666667
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Sustainable Offer Status:
- Green Premium product
- Color:
- White
- Mercury Free:
- Yes
- China Rohs Regulation:
- X
- Warranty:
- 18 months
- Pvc Free:
- Yes
- Range Of Product:
- Modicon TM5
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Range Compatibility:
- Modicon M258 || PacDrive LMC motion controller || Modicon LMC058
- Ip Degree Of Protection:
- IP20IEC 61131-2
- Standards:
- UL 508 || IEC 61131-2 || CSA C22.2 No 213 || CSA C22.2 No 142
- Output Voltage:
- 24 V DC
- Output Voltage Limits:
- 20.4...28.8 V
- Catalog:
- View
- Datasheet:
- View
