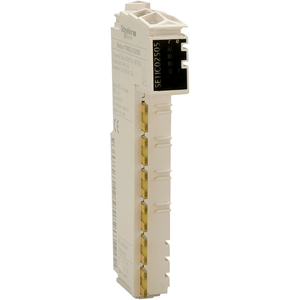

Schneider Electric TM5SE1IC02505 Mod. 1Hsc Inc 250Khz 5Vdc

Schneider Electric TM5SE1IC02505 Mod. 1Hsc Inc 250Khz 5Vdc

Schneider Electric
SKU:
TM5SE1IC02505
|
UPC:
3595864074832
Availability:
Contact us to confirm availability and lead times.
$1,330.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This counter module provides 1 HSC incremental input. Its counting frequency is 250kHz per channel. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. The maximum cycle time is 2ms and counter input resolution is 16bit/32bit. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Additional Information
Range Of Product:
Modicon TM5
Range Compatibility:
Modicon LMC058 || Modicon M258
Standards:
UL 508 || CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2
Surge Withstand:
0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
Product Compatibility:
motion controller || logic controller
Warranty:
18 months
Encoder Type:
1 incremental encoder
China Rohs Regulation:
X
Marking:
CE
Ambient Air Temperature For Storage:
-25-70 °C
Mercury Free:
Yes
Resistance To Fast Transients:
1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
Disturbance Radiated/Conducted:
CISPR 11
Resistance To Electromagnetic Fields:
1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80...2000 MHz IEC 61000-4-3
Isolation:
500 Vrms AC insulation between channel and bus
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Counting Frequency:
250 kHz
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Vibration Resistance:
1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Pollution Degree:
2 IEC 60664
Input Compatibility:
1 incremental encoder (5 V)
Discrete Input Current:
3.3 mA 24 V
Ip Degree Of Protection:
IP20IEC 61131-2
Discrete Input Logic:
sink
Electromagnetic Compatibility:
EN/IEC 61000-4-6
Toxic Heavy Metal Free:
Yes
Discrete Input Voltage:
24 V DC
Maximum Power Dissipation In W:
1.51 W
Resistance To Electrostatic Discharge:
4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
Discrete Input Number:
1
Product Certifications:
cULus || C-tick || GOST-R || CSA
Input Filtering:
<= 200 ms
Product Or Component Type:
counter module
Pvc Free:
Yes
Sustainable Offer Status:
Green Premium product
Reach Free Of Svhc:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Maximum Cycle Time:
2 ms
Counter Inputs Resolution:
16 bits/32 bits
Current Consumption:
2 mA 5 V DC bus || 63 mA 24 V DC input/output
Ambient Air Temperature For Operation:
0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
Storage Altitude:
0-3000 m
Shock Resistance:
15 gn 11 ms
Operating Altitude:
0...6561.68 ft (0...2000 m)
Circularity Profile:
ENVEOLI1511026EN
Environmental Disclosure:
ENVPEP1511026EN
Rohs Exemption Information:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Function Of Module:
2 x 24 V DC RS422 sink auxiliary inputs || 24 V DC encoder power supply
Input Resistance:
7.19 kOhm
Relative Humidity:
5-95 % without condensation
