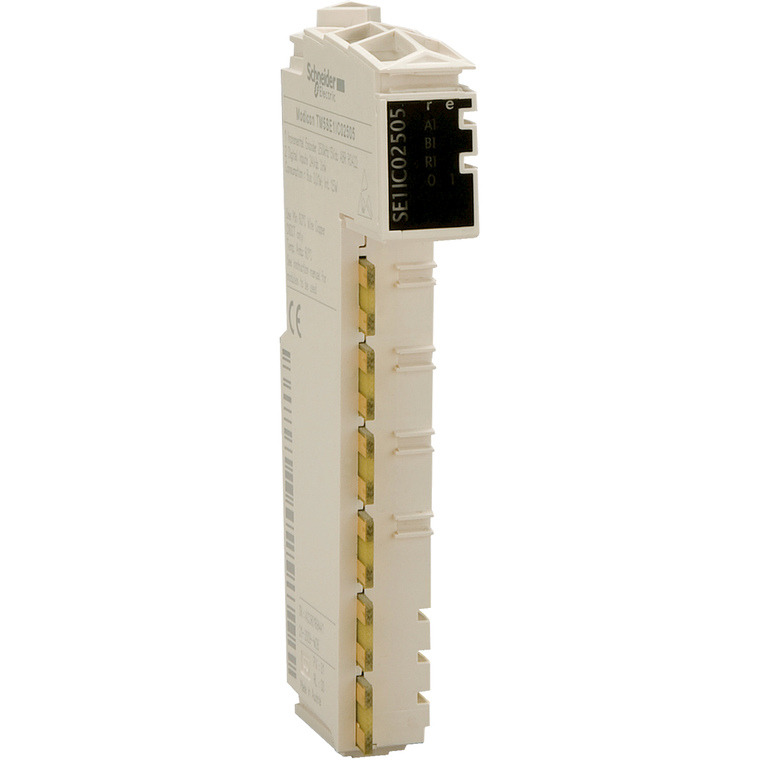

Schneider Electric TM5SE1IC20005 Mod. 1Hsc Inc 4Mhz 5Vdc

Schneider Electric TM5SE1IC20005 Mod. 1Hsc Inc 4Mhz 5Vdc

Schneider Electric
SKU:
TM5SE1IC20005
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$930.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
counter module - 1 HSC incremental - 4 MHz
Additional Information
Resistance To Electrostatic Discharge:
4 kV on contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2
Input Filtering:
<= 200 ms
Function Of Module:
2 x 24 V DC RS422 sink auxiliary inputs || 24 V DC encoder power supply
Discrete Input Logic:
sink
Marking:
CE
Discrete Input Voltage:
24 V DC
Maximum Cycle Time:
2 ms
Ip Degree Of Protection:
IP20IEC 61131-2
Product Compatibility:
motion controller
Standards:
UL 508 || CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2
Pollution Degree:
2 IEC 60664
Vibration Resistance:
1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
counter module
Resistance To Electromagnetic Fields:
1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || 10 V/m 80...2000 MHz EN/IEC 61000-4-3
Shock Resistance:
15 gn 11 ms
Ambient Air Temperature For Operation:
0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
Discrete Input Current:
24 V
Ambient Air Temperature For Storage:
-25-70 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Operating Altitude:
0...6561.68 ft (0...2000 m)
Counter Inputs Resolution:
16 bits/32 bits
Rohs Exemption Information:
Yes
Resistance To Fast Transients:
1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 shielded cable) || 2 kV EN/IEC 61000-4-4 power lines)
Storage Altitude:
0-3000 m
Encoder Type:
1 incremental encoder
Maximum Power Dissipation In W:
1.51 W
Electromagnetic Compatibility:
EN/IEC 61000-4-6
Relative Humidity:
5-95 % without condensation
Counting Frequency:
4 MHz
Range Of Product:
Modicon TM5
China Rohs Regulation:
X
Isolation:
500 Vrms AC insulation between channel and bus
Disturbance Radiated/Conducted:
CISPR 11
Net Weight:
0.025 kg
Discrete Input Number:
2
Current Consumption:
2 mA 5 V DC bus || 63 mA 24 V DC input/output
Mercury Free:
Yes
Circularity Profile:
ENVEOLI1511026EN
Environmental Disclosure:
ENVPEP1511026EN
Range Compatibility:
PacDrive LMC Eco || PacDrive LMC Pro || PacDrive LMC Pro2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Surge Withstand:
0.5 kV differential mode EN/IEC 61000-4-5 || 1 kV common mode EN/IEC 61000-4-5
Product Certifications:
cULus || C-tick || GOST-R || CSA
