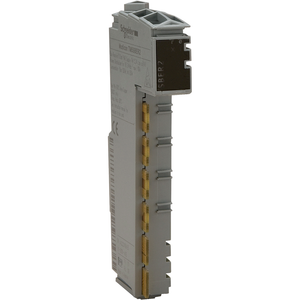

Schneider Electric TM5SPS2F Mod. Pwr Distr 24Vdc/F=6,3A/Bus Ps Grey

Schneider Electric TM5SPS2F Mod. Pwr Distr 24Vdc/F=6,3A/Bus Ps Grey

Schneider Electric
SKU:
TM5SPS2F
|
UPC:
3595864074931
Availability:
Factory stock
$354.29
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The is a power distribution module is suitable for supply 24V DC I/O modules and bus TM5. It is a power distribution module with a current consumption of 25mA 24V DC and a maximum power dissipation of 1.91W. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a 6.3A internal fuse. It is an IP20 rated product. The housing colour is grey. It weighs 0.03kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 and Modicon LMC058 controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Additional Information
Operating Altitude:
0...6561.68 ft (0...2000 m)
Circularity Profile:
ENVEOLI1511026EN
Ambient Air Temperature For Operation:
-10-55 °C without derating horizontal installation) || 55-60 °C with derating factor horizontal installation) || -10-50 °C vertical installation)
Product Specific Application:
supply 24 V DC I/O modules and bus TM5
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Electromagnetic Compatibility:
EN/IEC 61000-4-6
Product Or Component Type:
power distribution module with internal fuse
Resistance To Electrostatic Discharge:
4 kV on contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2
Disturbance Radiated/Conducted:
CISPR 11
[Us] Rated Supply Voltage:
24 V
Surge Withstand:
0.5 kV differential mode EN/IEC 61000-4-5 || 1 kV common mode EN/IEC 61000-4-5
Storage Altitude:
0-3000 m
Resistance To Fast Transients:
1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 shielded cable) || 2 kV EN/IEC 61000-4-4 power lines)
Vibration Resistance:
1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Pvc Free:
Yes
China Rohs Regulation:
X
Environmental Disclosure:
ENVPEP1511026EN
Standards:
IEC 61131-2 || UL 508 || CSA C22.2 No 213 || CSA C22.2 No 142
Range Of Product:
Modicon TM5
Sustainable Offer Status:
Green Premium product
Resistance To Electromagnetic Fields:
1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || 10 V/m 80...2000 MHz EN/IEC 61000-4-3
Current Consumption:
<= 34 mA 24 V DC
Network Type:
DC
Marking:
CE
Rohs Exemption Information:
Yes
Reach Free Of Svhc:
Yes
Short-Circuit Protection:
6.3 A internal fuse
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Power Supply Output Current:
1136-1136 mA TM5 power bus -10-55 °C || 740-740 mA TM5 power bus 55-60 °C || 6.3-6.3 A I/O power segment
Shock Resistance:
15 gn 11 ms
Mercury Free:
Yes
Maximum Power Dissipation In W:
2.13 W
Warranty:
18 months
Toxic Heavy Metal Free:
Yes
Range Compatibility:
Modicon LMC058 || Modicon M258
Product Certifications:
CSA || GOST-R || cULus || C-tick
Color:
Gray
Ambient Air Temperature For Storage:
-25-70 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Relative Humidity:
5-95 % without condensation
Product Compatibility:
logic controller || motion controller
