Schneider Electric

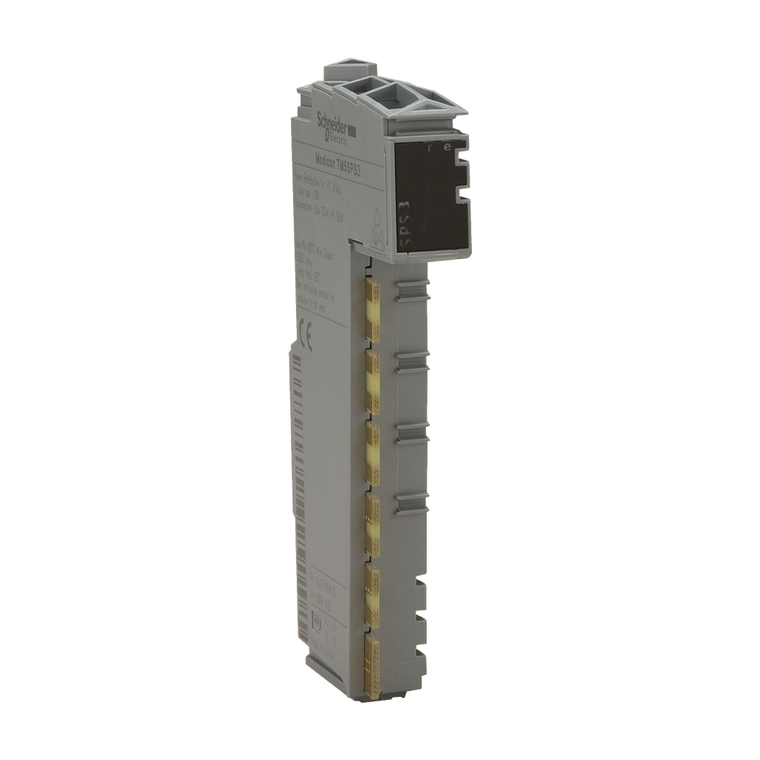

Schneider Electric TM5SPS3 Fieldbus Interface 24Vdc Power Supply

(No reviews yet) Write a Review
SKU:
TM5SPS3
UPC:
3595864093024
Condition:
New
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption Information:
Yes
China Rohs Regulation:
X
Pvc Free:
Yes
Shock Resistance:
15 gn 11 ms
Marking:
CE
Network Type:
DC
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP1511026EN
Surge Withstand:
0.5 kV differential mode EN/IEC 61000-4-5 || 1 kV common mode EN/IEC 61000-4-5
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Storage Altitude:
0-3000 m
[Us] Rated Supply Voltage:
24 V
Vibration Resistance:
1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Mercury Free:
Yes
Current Consumption:
<= 25 mA 24 V DC
Product Specific Application:
supply 24 V DC I/O modules and bus CANopen || supply 24 V DC I/O modules and bus Sercos III
Product Certifications:
GOST-R || C-tick || CSA || cULus
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty:
18 months
Relative Humidity:
5-95 % without condensation
Maximum Power Dissipation In W:
1.91 W
Product Compatibility:
logic controller || motion controller
Standards:
CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61131-2 || UL 508
Resistance To Electrostatic Discharge:
4 kV on contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2
Electromagnetic Compatibility:
EN/IEC 61000-4-6
Circularity Profile:
ENVEOLI1511026EN
Resistance To Fast Transients:
1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 shielded cable) || 2 kV EN/IEC 61000-4-4 power lines)
Ambient Air Temperature For Operation:
-10-55 °C without derating horizontal installation) || 55-60 °C with derating factor horizontal installation) || -10-50 °C vertical installation)
Color:
Gray
Product Or Component Type:
power distribution module
Operating Altitude:
0...6561.68 ft (0...2000 m)
Short-Circuit Protection:
10 A external fuse
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Range Compatibility:
Modicon LMC078 || Modicon LMC058 || Modicon M258
Resistance To Electromagnetic Fields:
1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || 10 V/m 80...2000 MHz EN/IEC 61000-4-3
Range Of Product:
Modicon TM5
Ambient Air Temperature For Storage:
-40-70 °C
Power Supply Output Current:
750-750 mA TM5 power bus -10-55 °C || 500-500 mA TM5 power bus 55-60 °C || 10-10 A I/O power segment
Disturbance Radiated/Conducted:
CISPR 11
Catalog:
View
Datasheet:
View
$172.65

Description

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a power distribution module with a rated supply voltage of 24V DC. It offers a maximum power dissipation of 1.91W with 10A external fuse short-circuit protection. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a short-circuit protection with 10A external fuse. It is an IP20 rated product. The housing colour is grey. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with distributed safety I/O on Sercos bus Modicon M258 logic controllers, Modicon LMC058 and Modicon LMC078 motion controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
