Schneider Electric HMIZSD1GS Sd Card 1Gb Memory System
Schneider Electric

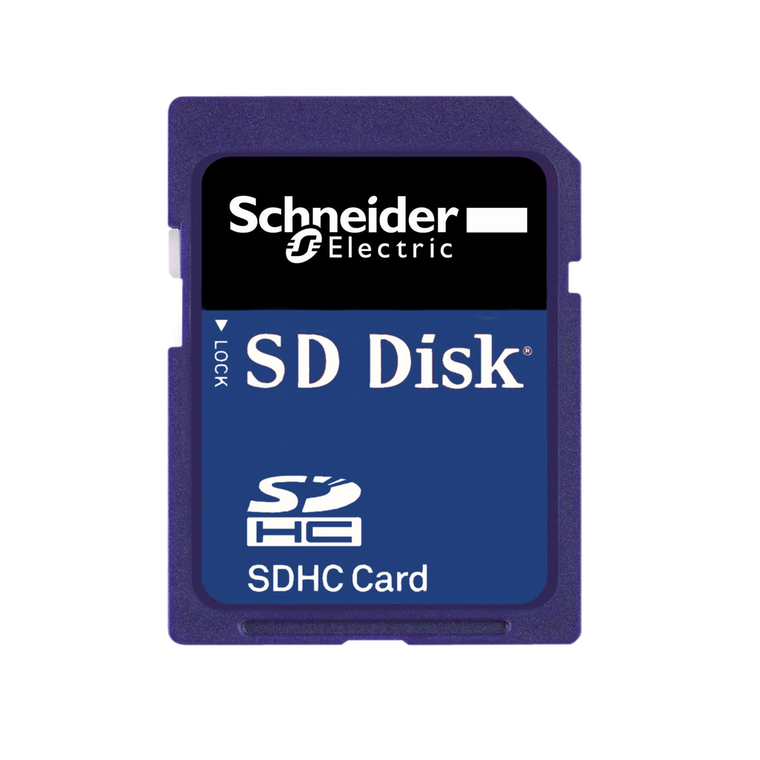

Schneider Electric TMASD1 Sd Memory Card For M2Xx Controller
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This memory card is proposed as an option available for Modicon M221 and M221 Book logic controllers. It s used for backing up and transferring applications, loading firmware, data logging. It is also used for duplicating applications between controllers. It has 256 MB capacity.
- Resistance To Electrostatic Discharge:
- 15 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
- Ambient Air Temperature For Storage:
- -25-85 °C
- Data Retention Time:
- 10 year(s) 25 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Range Compatibility:
- Modicon M241 || Modicon M221 || Modicon M251
- Range Of Product:
- Modicon M221 || Modicon M251 || Modicon M241
- Number Of Read/Write Cycles:
- 100000
- Net Weight:
- 0.004 kg
- Accessory / Separate Part Category:
- separate parts
- Accessory / Separate Part Type:
- SD card
- Relative Humidity:
- 0-95 % without condensation
- Shock Resistance:
- 15 gn IEC 61131-2 2007
- Reach Free Of Svhc:
- Yes
- Memory Type:
- flash
- Product Compatibility:
- logic controller
- Product Specific Application:
- program transfer || application backup
- Mtbf Reliability:
- 3000000 H
- China Rohs Regulation:
- X
- Toxic Heavy Metal Free:
- Yes
- Memory Capacity:
- 256 MB
- Vibration Resistance:
- 1 gn IEC 61131-2 2007
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -10-70 °C
- Catalog:
- View
- Datasheet:
- View
