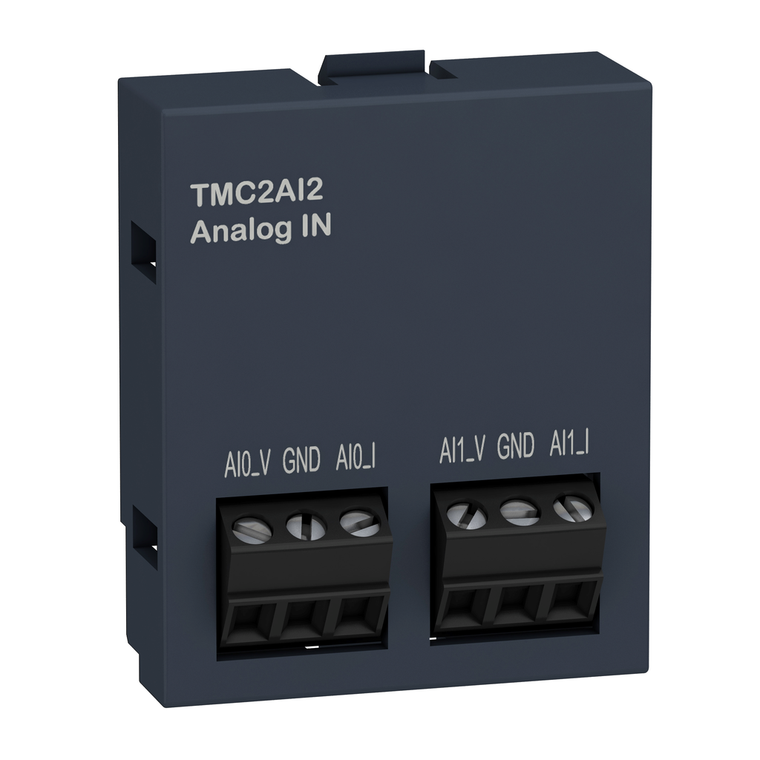

Schneider Electric TMC2AI2 Cartridge M221-2 Analog Current Inputs

Schneider Electric TMC2AI2 Cartridge M221-2 Analog Current Inputs

Schneider Electric
SKU:
TMC2AI2
|
UPC:
3606480649080
Availability:
Contact us to confirm availability and lead times.
$111.25
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 inputs with 12bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Additional Information
Analogue Input Resolution:
12 bits
Cross Talk:
<= 1 LSB
Maximum Cable Distance Between Devices:
twisted shielded pairs cable <30 m input
Toxic Heavy Metal Free:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Analogue Input Type:
current 4...20 mA || current 0...20 mA || voltage 0...10 V
Height:
41 mm
Lsb Value:
2.44 mV 0...10 V voltage || 4.88 µA 0...20 mA current || 3.91 µA 4...20 mA current
Product Or Component Type:
analogue input cartridge
Sampling Duration:
10 ms
Range Of Product:
Modicon M221
Electrical Connection:
3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs
Absolute Accuracy Error:
+/- 0.1 % of full scale at 25 °C || +/- 1 % of full scale
Immunity To Microbreaks:
10 ms
Mercury Free:
Yes
Depth:
15 mm
Sustainable Offer Status:
Green Premium product
Conversion Time:
20 ms
Temperature Drift:
+/- 0.02 %FS/°C
Repeat Accuracy:
+/- 0.5 %FS
Pvc Free:
Yes
Insulation:
non-insulated between analogue input and internal logic
Non-Linearity:
+/- 0.01 %FS
Product Compatibility:
Modicon M221C
Analogue Input Number:
2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation:
X
Environmental Disclosure:
ENVPEP1403017EN
Width:
35 mm
Input Impedance:
<= 250 Ohm current || >= 1 MOhm voltage
Net Weight:
0.015 kg
Circularity Profile:
ENVEOLI1403017EN
Permissible Continuous Overload:
13 V voltage || 40 mA current
Type Of Cable:
twisted shielded pairs cable
Rohs Exemption Information:
Yes
