Schneider Electric VRKP4L0FNC00000 Pacdrive Robot P4 / Ilm, Compact

Schneider Electric VRKP4L0FNC00000 Pacdrive Robot P4 / Ilm, Compact

Schneider Electric
SKU:
VRKP4L0FNC00000
|
UPC:
3.60649E+12
$39,037.50
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

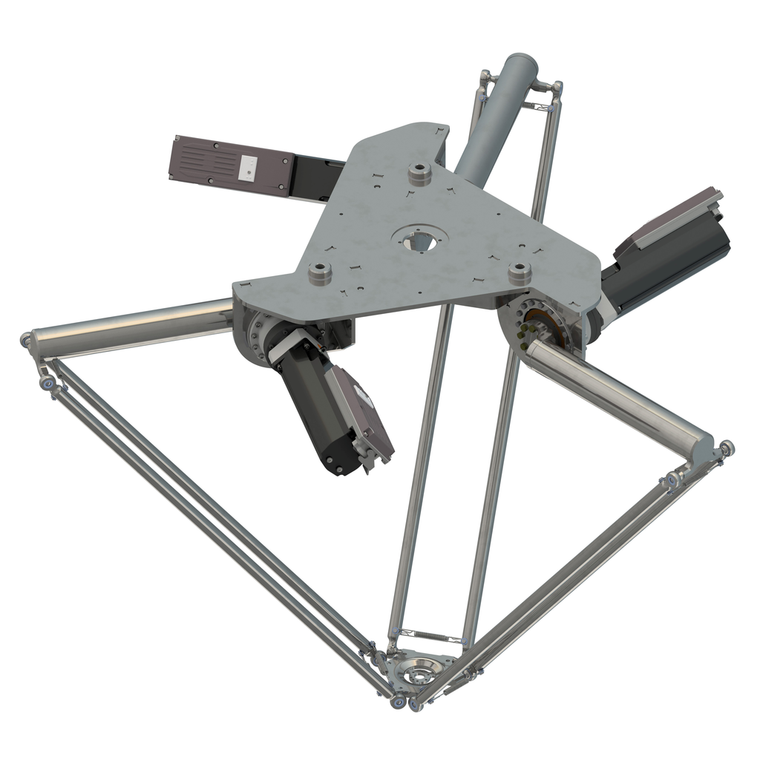

This robot belongs to Lexium T- P, which is figuring Delta robots for pick & place solutions. This is a P4 compact delta robot with 3 to 5 axes. Its permanent permissible load reaches 15kg. It has a 1200mm working envelop. Lexium P are Delta 3 robots designed for fast pick-and-place with payloads of up to 15kg. It has a fixed axis and is equipped with Lexium 62 ILM integrated drives. It weighs 75kg. This robotics solution is an add-on to the PacDrive product line, designed to satisfy the rapidly rising demand for the integration of robots into machine design using Lexium components. This robotics solution is engineered with standard EcoStruxure Machine Expert tools for PacDrive, IEC 61131-3-compliant, CoDeSys-based programming. This robot is compatible with spare parts such as motor cover, fasteners, gearbox for main axis, parallel plate, guiding tubes for telescopic axis, sealing set for cover, for motor cover, for gearboxes, ball pins and ball sockets. And more. With its PacDrive-based robotics solution, Schneider Electric has integrated Lexium T and P robots into a standard automation solution. Lexium T, P (Delta 2 and delta 3 kinematics) offers a fully integrated solution for many pick-and-place packaging and handling applications. The stainless kinematics are well suited for the food, pharma, cosmetics, and beverage industries.
Additional Information
Environmental Disclosure:
ENVPEP1503015EN
Range Of Product:
Lexium P, T
Rohs Exemption Information:
Yes
Product Or Component Type:
delta 3 robot
Maximum Actuation Speed:
10 m/s
Permanent Permissible Load:
15 kg
Range Compatibility:
Lexium 62 ILM motor
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Net Weight:
75 kg
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Acceleration:
100 m/s² at 1 kg || 75 m/s² at 1.5 kg
Operating Travel:
0-1200 mm diameter || 0-425 mm vertical
Circularity Profile:
ENVEOLI1503015EN
Repeat Accuracy:
0.1 mm
Environmental Characteristic:
normal environment
China Rohs Regulation:
X
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury Free:
Yes
Design:
compact
Device Short Name:
P4
Sustainable Offer Status:
Green Premium product
Number Of Axis:
45354
