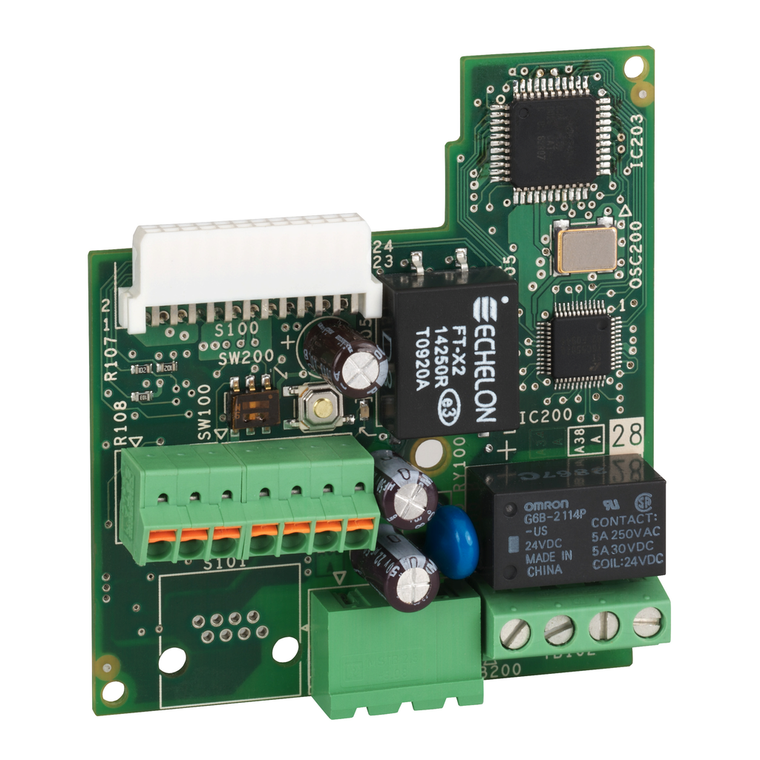

Schneider Electric VW3A21212 Communication Electronic Board For Varia
SKU:
VW3A21212
UPC:
3606480388590
MPN:
Condition:
New
Product Or Component Type:
communication card
Output Type:
multifunction programmable relay output FLA, FLB, FLC 250 V AC 1 A 1 || multifunction programmable relay output FLA, FLB, FLC 250 V AC 0.5 A 0.4 || multifunction programmable relay output FLA, FLB, FLC 30 V DC 0.5 A || power supply output P24 24 V DC
Rohs Exemption Information:
Yes
Warranty:
18 months
Electrical Connection:
screw/spring terminal block
Input Type:
multifunction programmable logic input F < 24 V DC 5 mA sink or source || multifunction programmable contact input R < 24 V DC 5 mA sink or source || multifunction programmable analog input VIB 10 V DC 30 kOhm
Communication Port Protocol:
LonWorks
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Net Weight:
0.05 kg
Range Compatibility:
Altivar 212
Mercury Free:
Yes
Electrical Connection:
screw terminal NETA, NETB LonWorks transmission/reception data || screw terminal SHLD LonWorks communication shield || screw terminal G/E grounding terminal || spring terminal F programmable logic input || spring terminal R programmable contact input
